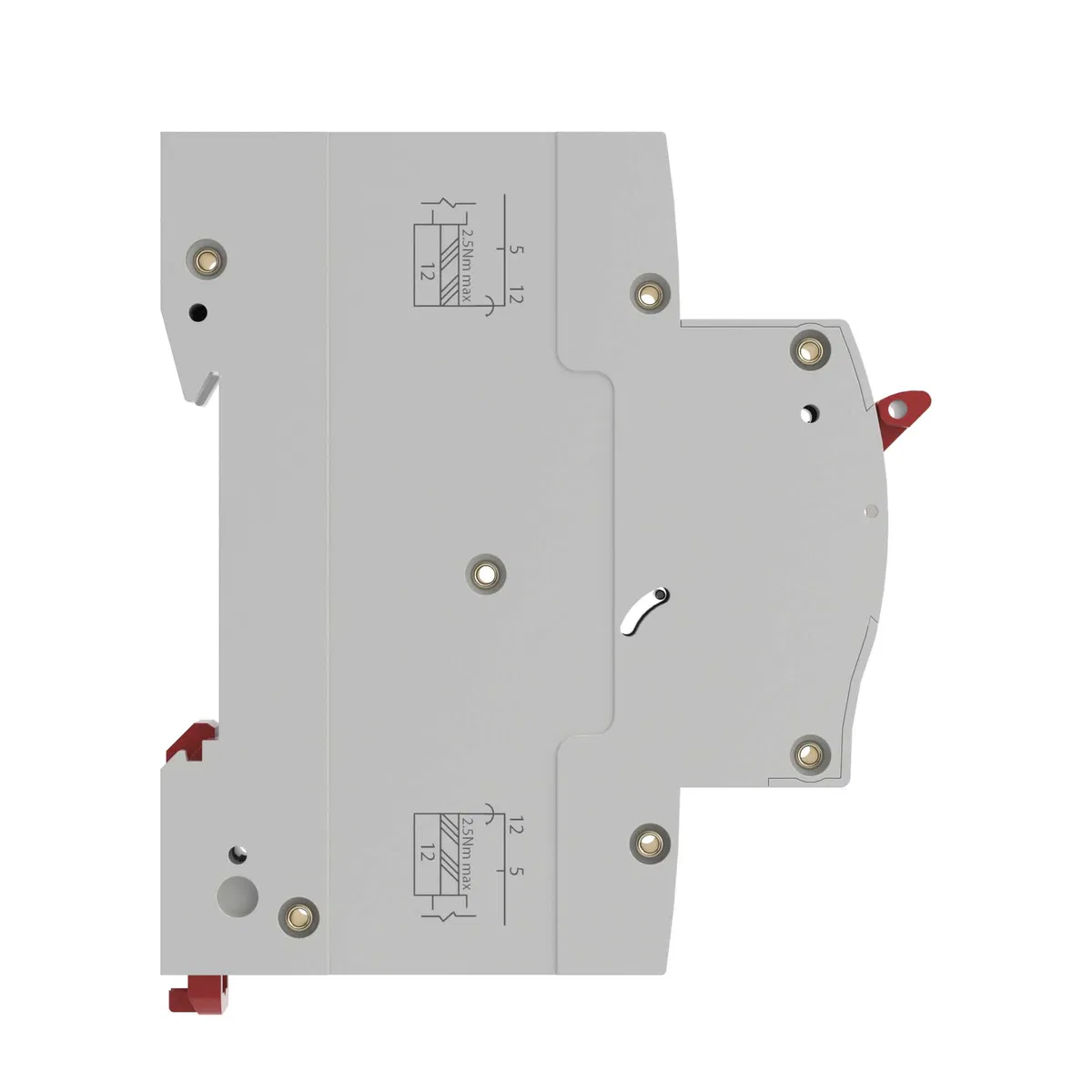

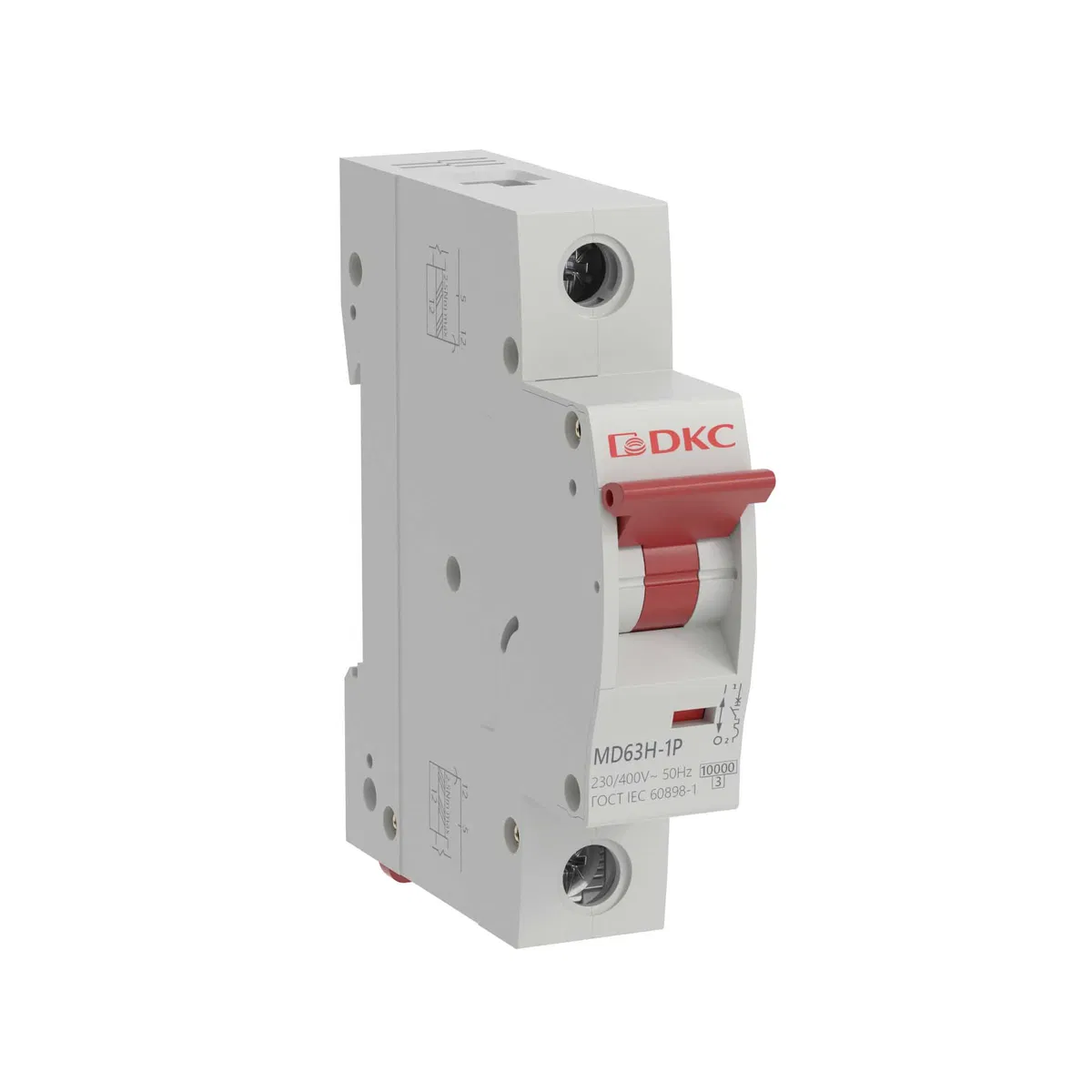

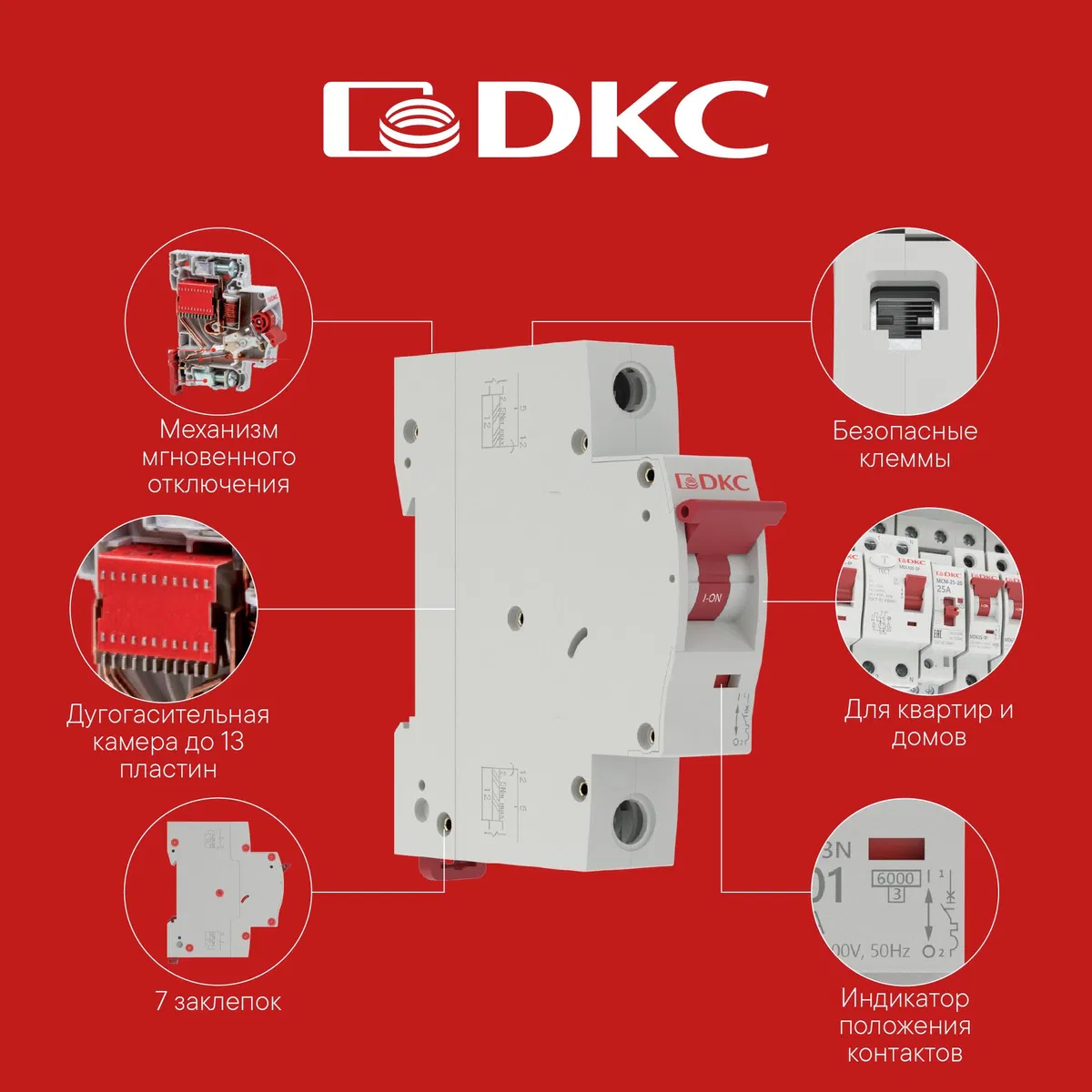

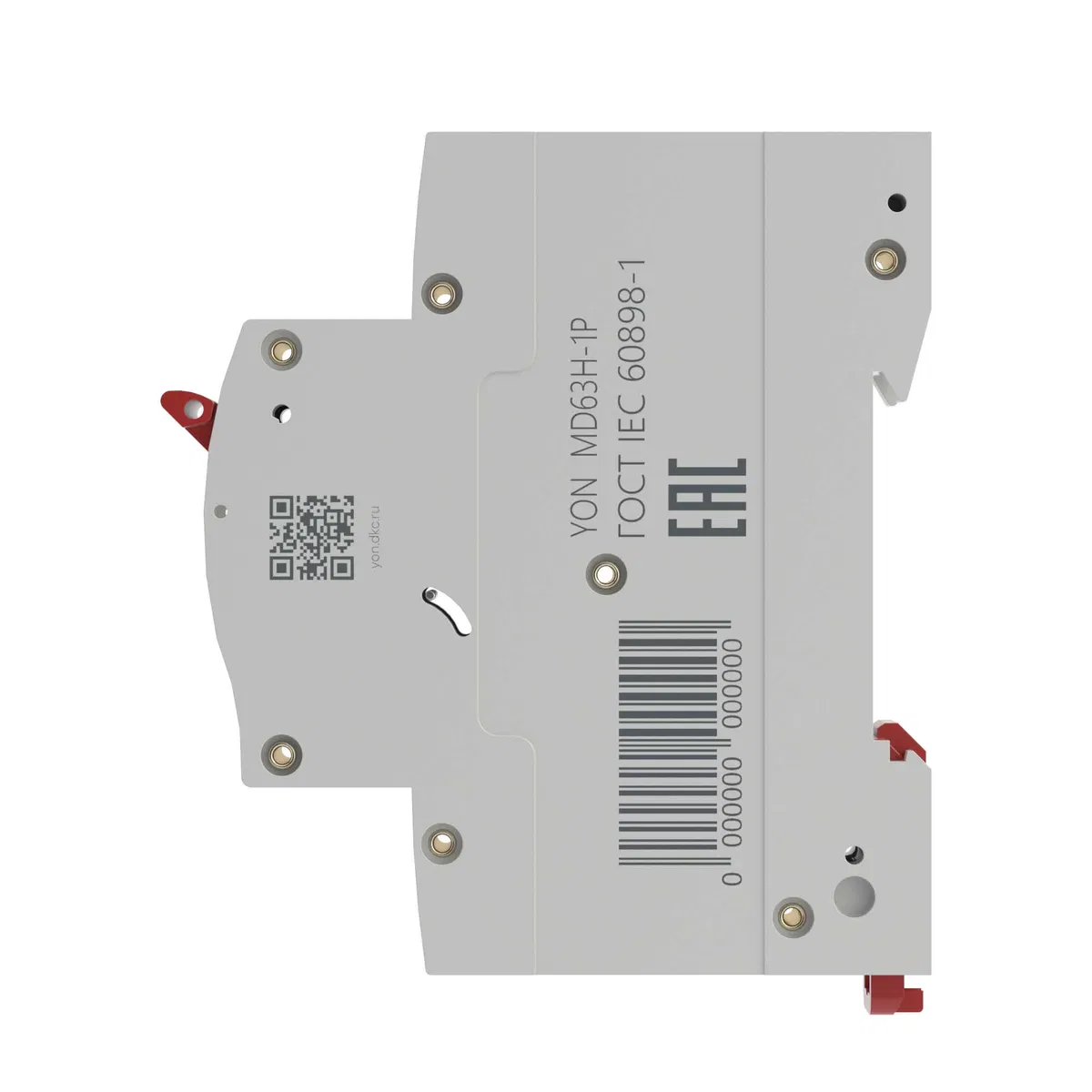

Modular automatic circuit breaker YON max (YON max) type MD63, 1 pole, B characteristic, 25A, 10kA MD63H-1PB25 DKC

SKU: MD63H-1PB25

ETIM: EC000042

787 ₽

Price list (incl. VAT): 1011 ₽

Available August 4

	Warehouse	Qty	Unit	Ready for pickup	Delivery to Smolensk
	Manufacturer warehouse Available	948	шт	August 4	August 4

Select a warehouse to order

Description Specifications Reviews

Additional equipment possible	Yes
Mounting installation depth	69.9 мм
For flush mounting	Yes
Overvoltage category	3
Current limiting class	3
Number of protected poles	1
Rated short-circuit breaking capacity Icu IEC 60898 at 230 V	10 кА
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230V	10 кА
Rated breaking capacity in accordance with EN 60898	10 кА
Rated impulse voltage	4 кВ
Rated voltage	230 В
Rated insulation voltage Ui	500 В
Rated current	25 А
Total number of poles	1
Ambient operating temperature to	45 град.C
Ambient operating temperature from	-10 град.C
Current type	Alternating current (AC)
With switched neutral conductor	Yes
Flexible stranded conductor cross-section up to	16 кв.мм
Stranded flexible conductor cross-section from	16 кв.мм
Solid conductor cross-section to	25 кв.мм
Solid conductor cross-section from	25 кв.мм
Pollution degree (number)	3
IP protection rating	IP20
Tripping characteristic	Please provide the text you would like me to translate.
Frequency at	50 Гц
Frequency from	50 Гц
Width in modular units	1
