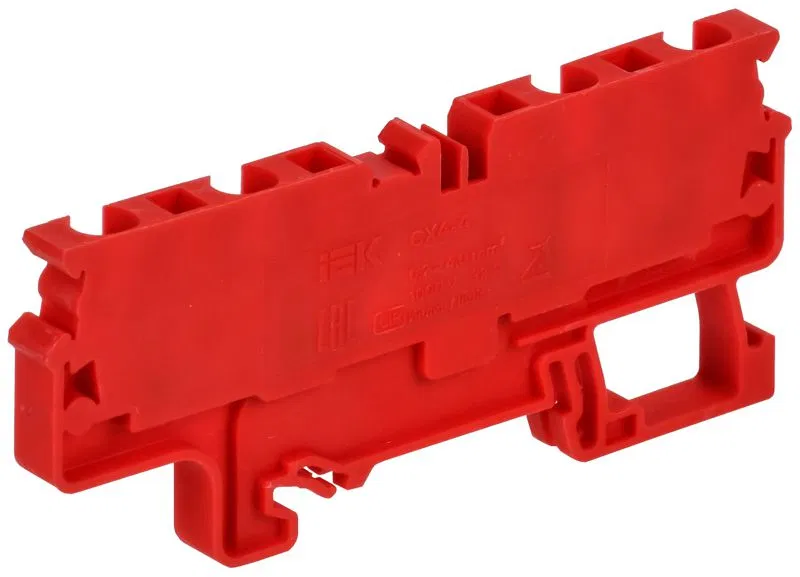

ARMAFIX Spring terminal CX4-4 four-contact red IEK AF-CT42-00-4-K04-004
SKU: AF-CT42-00-4-K04-004
ETIM: EC000897
7,300 ₽
Get back 73 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Order multiple: 50 шт
Analogues by specifications
Stock by warehouse
CX series spring clamp terminal blocks designed for reliable wire connection in automation and distribution systems. The terminals provide safe gas-tight connections using pre-tensioned spring clamps, making them ideal for industrial applications requiring high mounting density and connection reliability. Wire cross-section range from 2.5 to 16 sq.mm.
Version tested for explosion protection "Ex e"
No
Minimum possible mounting height
38.2 мм
Length
86.20 мм
Length
86.20 мм
Number of terminals per level
4
Number of poles
1
Number of levels
1
Housing insulation material
Thermoplastic
Rated voltage
1000 В
Rated current In
32 А
Closing plate can be fitted if required
Yes
Operating temperature
85 град.C
Operating temperature from
-40...85 град.C
Connection position
Top
Stranded wire cross-section with ferrule
0.2...4.0 мм²
Flexible stranded conductor cross-section up to
4 кв.мм
Stranded flexible conductor cross-section from
0.2...4.0 кв.мм
Solid conductor cross-section to
6 кв.мм
Solid conductor cross-section from
0.2...6.0 кв.мм
Extra-fine-stranded flexible conductor cross-section without ferrule, from
0.2...4.0 кв.мм
Mounting method
DIN rail (standard) 35 mm
Electrical connection type 1
Spring clamp connection
Electrical connection type 2
Spring clamp connection
Color
Red
Colour
Red
Width/connection pitch
6.0 мм
