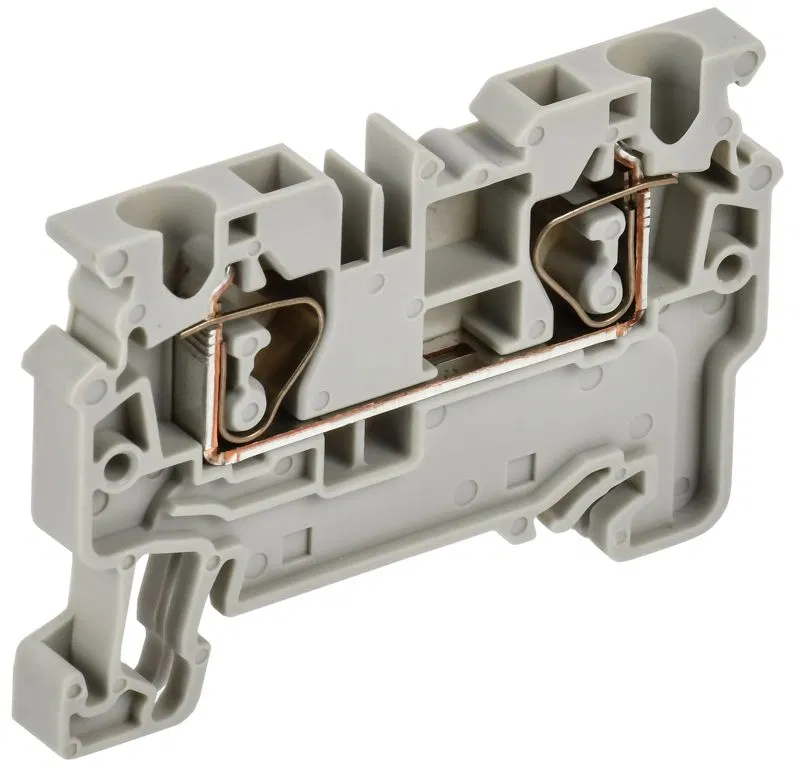

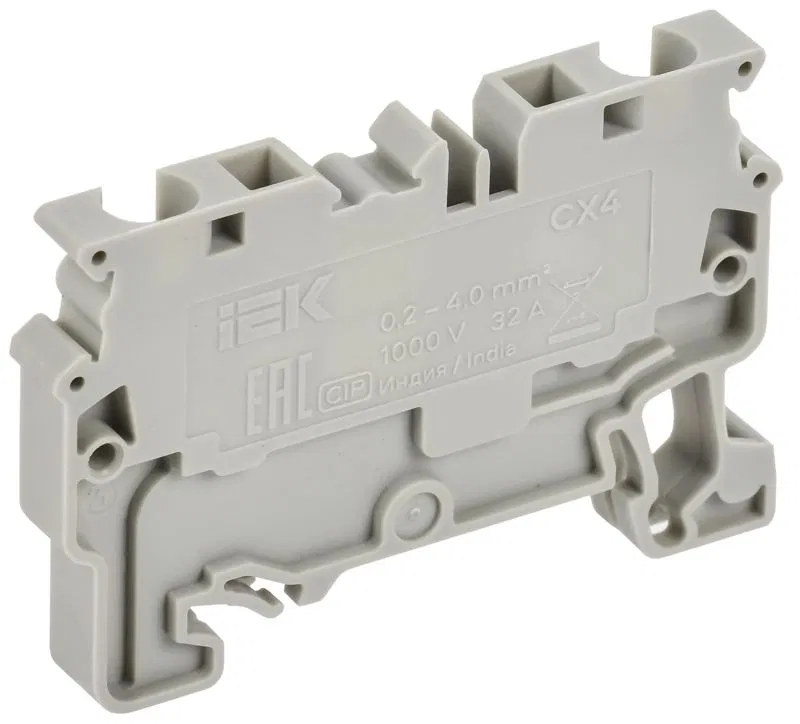

ARMAFIX Spring terminal CX4 4mm2 pass-through grey IEK AF-CT40-00-K03-004
SKU: AF-CT40-00-K03-004
ETIM: EC000897
6,800 ₽
Get back 68 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Order multiple: 100 шт
Analogues by specifications
Stock by warehouse
No description available
Version tested for explosion protection "Ex e"
No
Minimum possible mounting height
37.5 мм
Length
55.00 мм
Number of terminals per level
2
Number of poles
1
Number of levels
1
Housing insulation material
Thermoplastic
Rated voltage
1000 В
Rated current In
32 А
Closing plate can be fitted if required
Yes
Operating temperature
85 град.C
Operating temperature from
-40...85 град.C
Connection position
Top
Stranded wire cross-section with ferrule
0.2...4.0 мм²
Flexible stranded conductor cross-section up to
4 кв.мм
Stranded flexible conductor cross-section from
0.2...4.0 кв.мм
Solid conductor cross-section to
6 кв.мм
Solid conductor cross-section from
0.2...6.0 кв.мм
Extra-fine-stranded flexible conductor cross-section without ferrule, from
0.2...4.0 кв.мм
Mounting method
DIN rail (standard) 35 mm
Electrical connection type 1
Spring clamp connection
Electrical connection type 2
Spring clamp connection
Colour
Grey
Color
Grey
Width/connection pitch
6.0 мм
