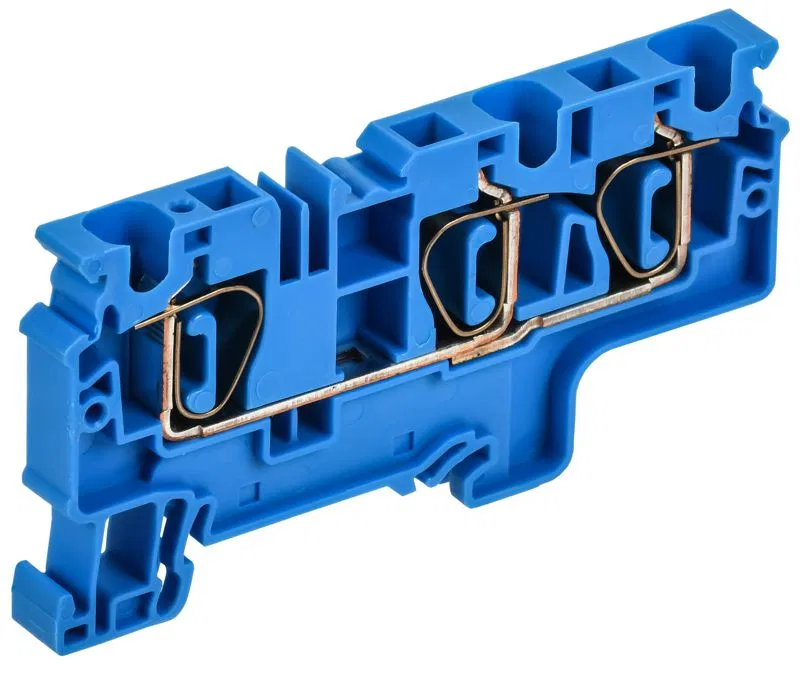

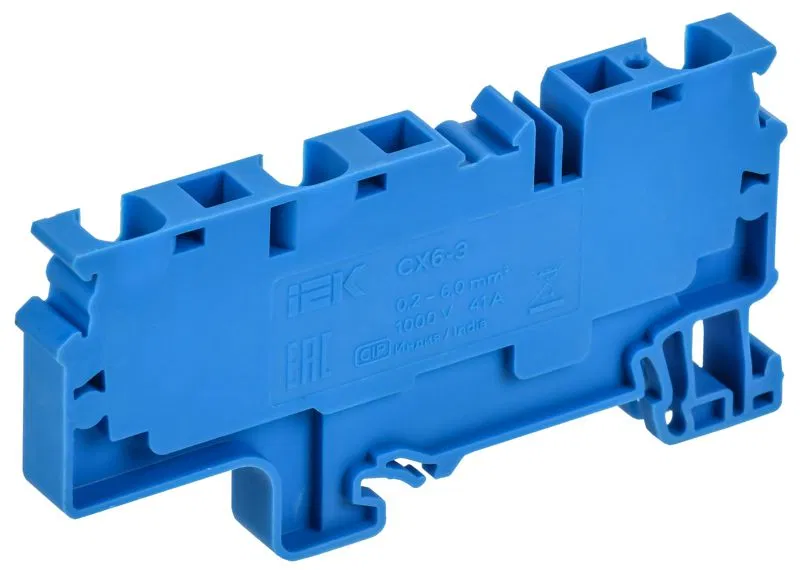

Spring terminal CX6-3 BU 6sq.mm three-contact blue ARMAFIX IEK AF-CT40-00-3-K07-006
SKU: AF-CT40-00-3-K07-006
ETIM: EC000897
10,100 ₽
Get back 101 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Order multiple: 50 шт
Analogues by specifications
Stock by warehouse
CX series spring terminals are equipped with cage clamp spring tensioners and are suitable for various types of conductors. The clamping force is constant, ensuring a reliable contact with the conductor. The presence of multiple terminals on a single terminal block allows connecting from 2 to 4 conductors to a single terminal. Spring terminals are highly suitable for both standard applications and high vibration environments, such as marine and railway transport.
Version tested for explosion protection "Ex e"
No
Minimum possible mounting height
43.0 мм
Length
82.80 мм
Length
82.80 мм
Number of terminals per level
3
Number of poles
1
Number of levels
1
Housing insulation material
Thermoplastic
Rated voltage
1000 В
Rated current In
41 А
Closing plate can be fitted if required
Yes
Operating temperature
85 град.C
Operating temperature from
-40...85 град.C
Connection position
Top
Stranded wire cross-section with ferrule
0.2...6.0 мм²
Flexible stranded conductor cross-section up to
6 кв.мм
Stranded flexible conductor cross-section from
0.2...6.0 кв.мм
Solid conductor cross-section to
6 кв.мм
Solid conductor cross-section from
0.2...6.0 кв.мм
Extra-fine-stranded flexible conductor cross-section without ferrule, from
0.2...6.0 кв.мм
Mounting method
DIN rail (standard) 35 mm
Electrical connection type 1
Spring clamp connection
Electrical connection type 2
Spring clamp connection
Color
Blue/light blue
Colour
Blue/light blue
Width/connection pitch
8.0 мм
