IEK

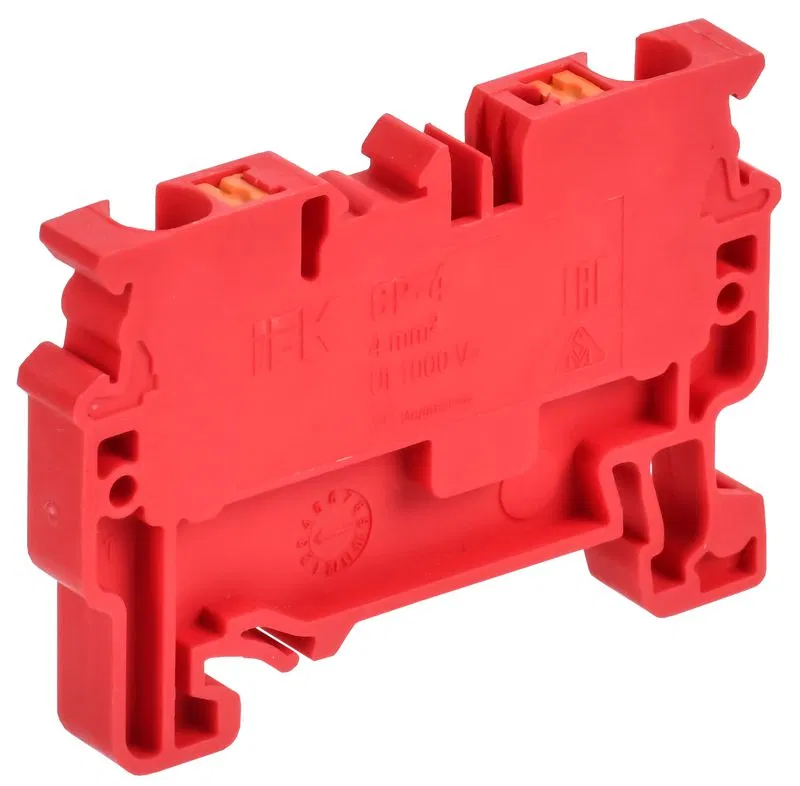

ARMAFIX Spring terminal Push In CP 4mm2 red IEK AF-CT20-00-K04-004
SKU: AF-CT20-00-K04-004
ETIM: EC000897
8,800 ₽
Get back 88 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Order multiple: 100 шт
Analogues by specifications
Stock by warehouse
No description available
Version tested for explosion protection "Ex e"
No
Length
54.80 мм
Length
54.80 мм
Number of terminals per level
2
Number of poles
1
Number of levels
1
Housing insulation material
Other
Rated voltage
1000 В
Rated current In
32 А
Closing plate can be fitted if required
Yes
Operating temperature
85 град.C
Operating temperature from
-40...85 град.C
Connection position
Top
Stranded wire cross-section with ferrule
0.2...4 мм²
Flexible stranded conductor cross-section up to
4 кв.мм
Stranded flexible conductor cross-section from
0.2...4 кв.мм
Solid conductor cross-section to
6 кв.мм
Solid conductor cross-section from
0.2...6 кв.мм
Extra-fine-stranded flexible conductor cross-section without ferrule, from
0.2...4 кв.мм
Mounting method
DIN rail (standard) 35 mm
Electrical connection type 1
Spring clamp connection
Electrical connection type 2
Spring clamp connection
Color
Red
Colour
Red
Width/connection pitch
6.0 мм
