IEK

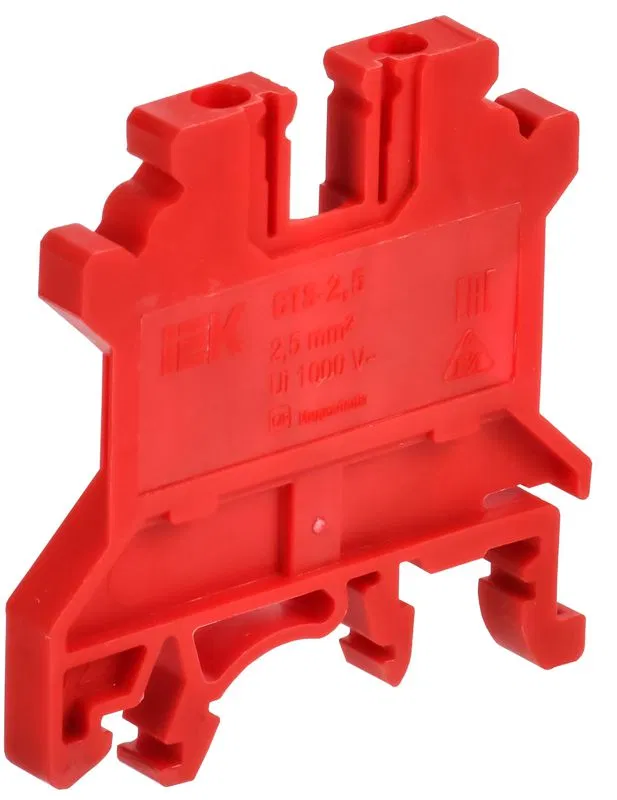

ARMAFIX Screw terminal CTS 2.5mm2 red IEK AF-CT10-00-K04-002
SKU: AF-CT10-00-K04-002
ETIM: EC000897
40 ₽
Get back 1% in points
Analogues by specifications
Stock by warehouse
No description available
Version tested for explosion protection "Ex e"
No
Minimum possible mounting height
46.2 мм
Length
43.00 мм
Number of terminals per level
2
Number of poles
1
Number of levels
1
Housing insulation material
Thermoplastic
Rated voltage
1000 В
Rated current In
24 А
Closing plate can be fitted if required
Yes
Operating temperature
85 град.C
Operating temperature from
-40...85 град.C
Connection position
Side (transverse)
Stranded wire cross-section with ferrule
0.2...2.5 мм²
Flexible stranded conductor cross-section up to
2.5 кв.мм
Stranded flexible conductor cross-section from
0.2...2.5 кв.мм
Solid conductor cross-section to
4 кв.мм
Solid conductor cross-section from
0.2...4 кв.мм
Extra-fine-stranded flexible conductor cross-section without ferrule, from
0.2...2.5 кв.мм
Mounting method
DIN rail (standard) 35 mm
Electrical connection type 1
Screw connection
Electrical connection type 2
Screw connection
Color
Red
Colour
Red
Width/connection pitch
5.0 мм
