ARMAT AR-A2C TY16 4P W HR/VR Air circuit breaker 55kA TY 1600A 4P withdrawable with accessories ~220-240V: trip release, closing release, motor drive IEK AR-ACB-4VA-055-1600A-TYCF
SKU: AR-ACB-4VA-055-1600A-TYCF
ETIM: EC000228
1,893,883 ₽
Get back 18,938 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
ARMAT series Air Circuit Breakers (ACB) are designed to protect power supply networks from short circuits and overloads, as well as for the rapid switching of electrical circuit sections, and are designed for use in electrical installations with a rated operating voltage of up to 690 V for rated currents from 630 to 6300A.
These circuit breakers are equipped with electronic trip units with various combinations of functional features, including Modbus communication capability, which, given a breaking capacity of up to 150 kA, allows the use of ARMAT ACB in any type of industrial and civil facilities.
Comply with GOST R 50030.2.
Main circuit connection type
Rear connection
Built-in motor drive
Yes
Height
435.0 мм
Height
435.0 мм
Altitude above sea level
< 2000
Depth
390.0 мм
Overload protection device setting range to
1600 А
Setting range of overload protection device from
640...1600 А
Instantaneous short-circuit release setting range to
50000 А
Instantaneous short-circuit release setting range from
1600...50000 А
Auxiliary device factory-installed
Shunt release (for power circuit breakers)
Design
Withdrawable
Number of auxiliary NO contacts
0
Number of auxiliary changeover contacts
6
Number of auxiliary break contacts
0
Number of poles
4
Design
Other
Mechanical endurance without maintenance
25000
Motor drive optional
No
Electronic release available
Yes
Rated impulse withstand voltage
12
Rated short-time withstand current Icw for 1 s
55
Rated service short-circuit breaking capacity Ics
55
Rated ultimate short-circuit breaking capacity Icu at 400 V, 50 Hz
55 кА
Rated insulation voltage Ui
1250 В
Rated voltage up to
690 В
Rated voltage from
690...690 В
Rated current
1600 А
Rated continuous current Iu
1600 А
Suitable for DIN-rail mounting
No
Power loss
230 Вт
Operating mode
Continuous
With minimum voltage protection
Yes
Tripping system
Electronic
IP protection rating
IP30
Product/component type
Air circuit breaker
Main electrical circuit connection type
Bolted connection
Control element type
Other
Mains supply frequency
50 Гц
Width
365.0 мм
Electrical endurance without maintenance at AC 690V
8000
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
Related products
4790 ₽
КЭАЗ Circuit breaker 3p 63A 10I 5kA AP50B 3MT U3 400V AC additional contacts 1changeover KEAZ 107350
SKU: 107350
2748 ₽
КЭАЗ Circuit breaker 2p 1.6A 10In 0.3kA AP50B 2MT U3 400V AC/220V DC additional contacts 1changeover KEAZ 106954
SKU: 106954
3859 ₽

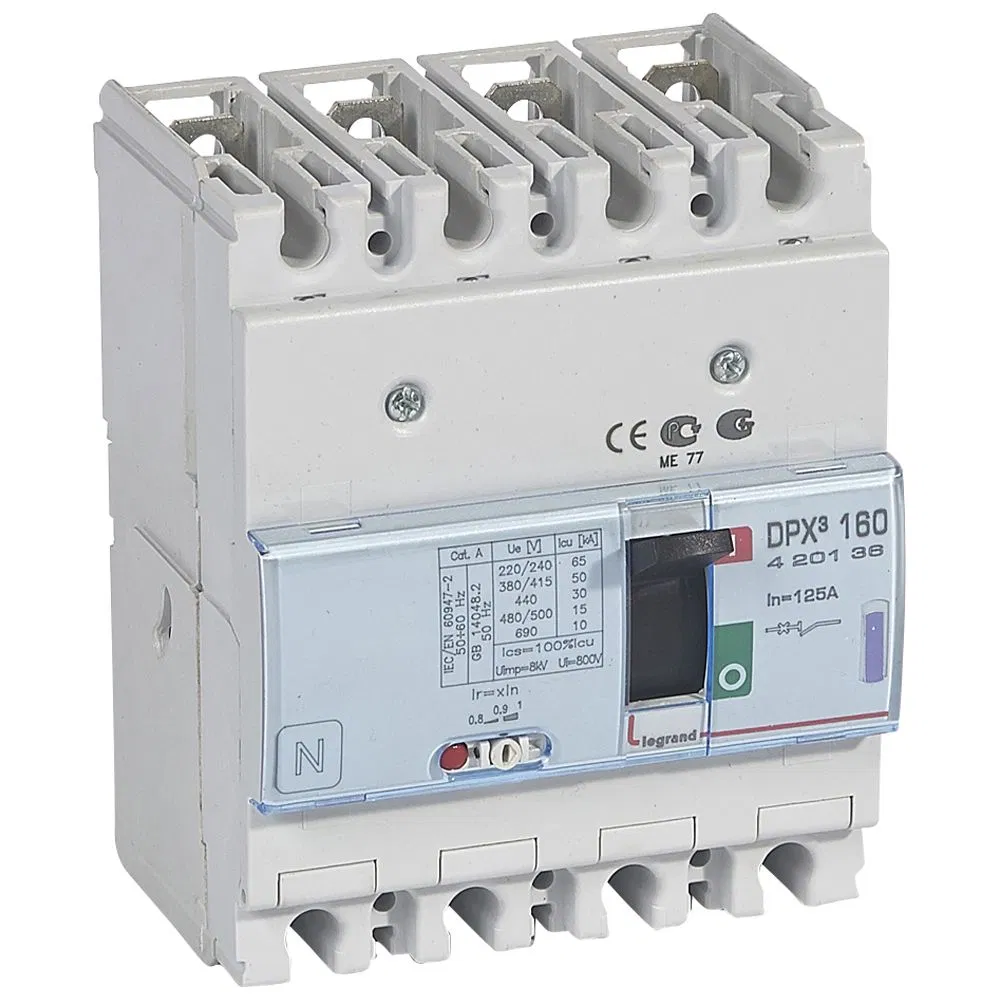

Legrand (группа IEK) Circuit breaker 4p 125A 36kA DPX3 160 thermomagnetic trip Leg 420096 Legrand
