IEK

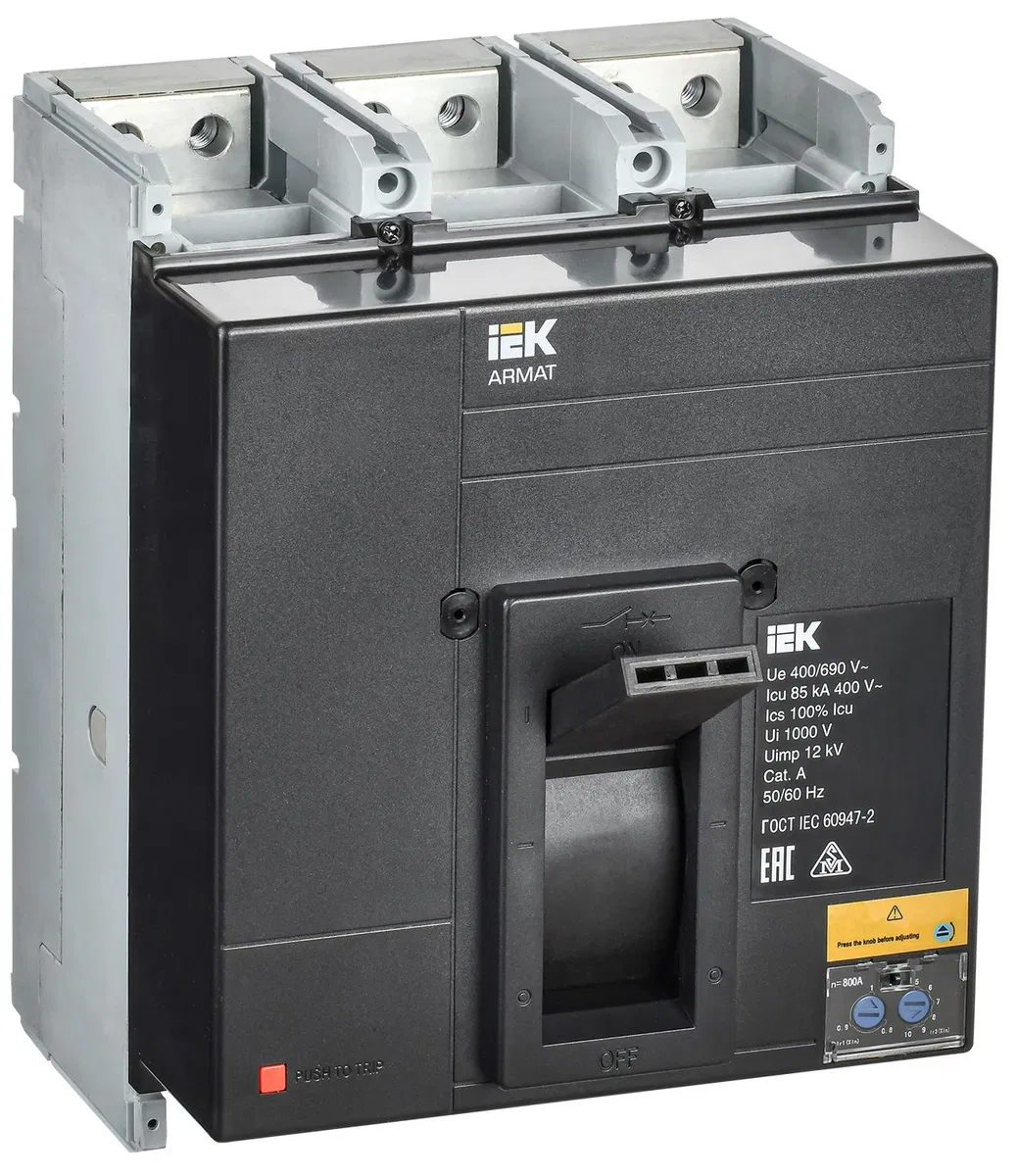

ARMAT molded case circuit breaker 3P frame size N 85kA 800A adjustable thermal-magnetic release IEK AR-MCCB-3N-085-0800A-ATUC
SKU: AR-MCCB-3N-085-0800A-ATUC
ETIM: EC000228
9,949,519 ₽
Get back 99,495 ₽ in points
Order multiple: 30 шт
Analogues by specifications
Stock by warehouse
No description available
Weight
14.300 кг
Main circuit connection type
Other
Built-in motor drive
No
Height
468.8 мм
Height
468.8 мм
Altitude above sea level
< 2000
Depth
224.8 мм
Setting range of overload protection device from
4000...8000 А
Instantaneous short-circuit release setting range from
Please provide the text you would like me to translate. А
Design
Stationary
Number of auxiliary NO contacts
0
Number of auxiliary changeover contacts
0
Number of auxiliary break contacts
0
Number of poles
3
Design
Other
Mech. endurance
20000
Mechanical endurance without maintenance
20000
DIN rail mounting (O-type) optional
No
Motor drive optional
Yes
Electronic release available
No
Rated impulse withstand voltage
12
Rated service short-circuit breaking capacity Ics
85
Rated ultimate short-circuit breaking capacity Icu at 400 V, 50 Hz
85 кА
Rated voltage
400/690 В
Rated insulation voltage Ui
1000 В
Rated voltage from
400...690 В
Rated current
800 А
Rated continuous current Iu
800 А
Relative air humidity
90%
Suitable for DIN-rail mounting
No
Power loss
210 Вт
Operating mode
Continuous
With minimum voltage protection
Yes
Tripping system
Thermal-magnetic
IP protection rating
IP20
Terminal ingress protection IP
IP00
Operating temperature from
-40...60 град.C
Product/component type
Moulded case circuit breaker
Main electrical circuit connection type
Bolted connection
Control element type
Toggle switch
Mains supply frequency
50/60 Гц
Width
210.0 мм
Electrical endurance
3000
Electrical endurance without maintenance at AC 440V
3000
Electrical endurance without maintenance at AC 690V
10000
