IEK

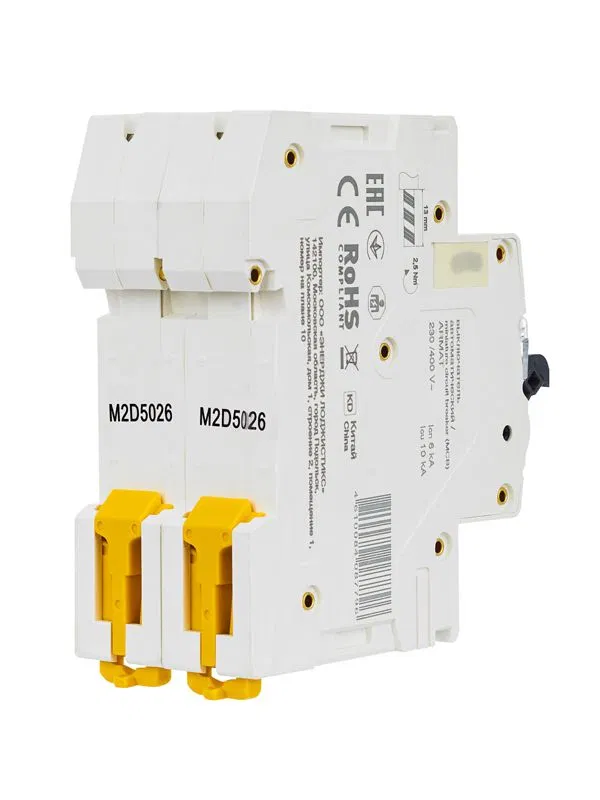

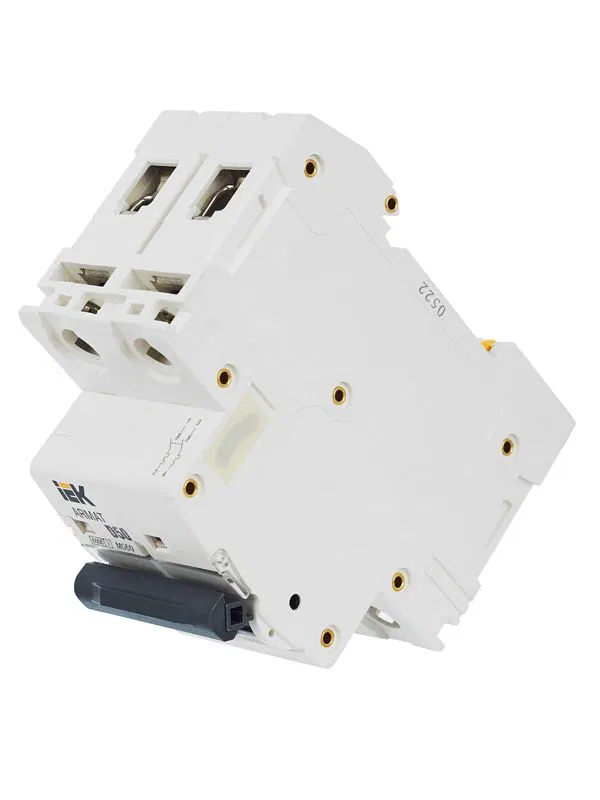

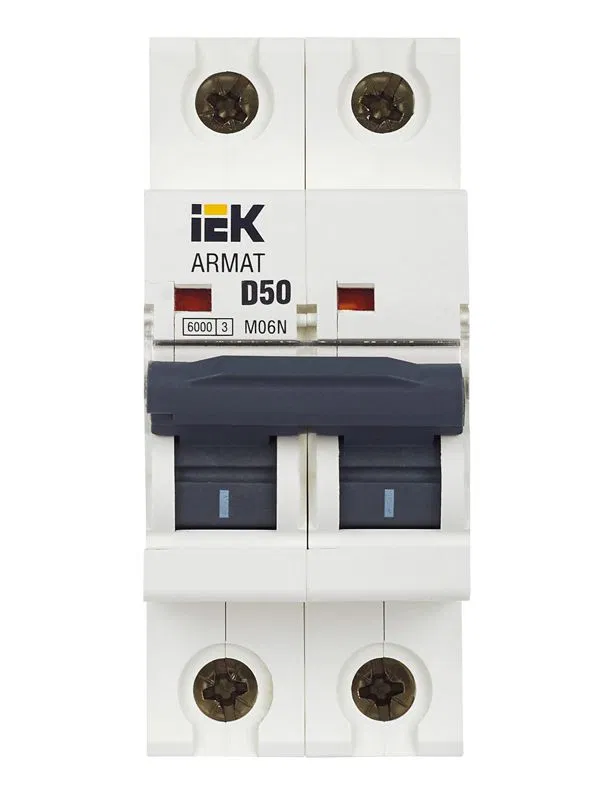

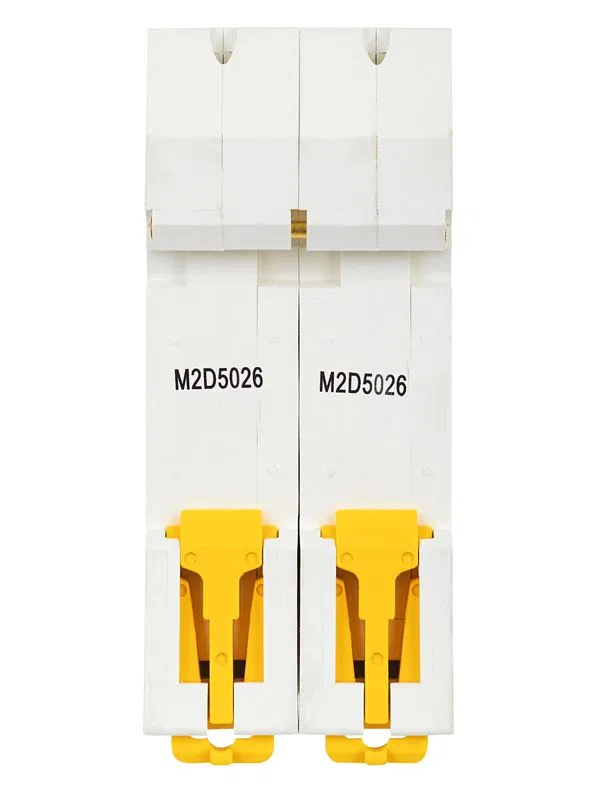

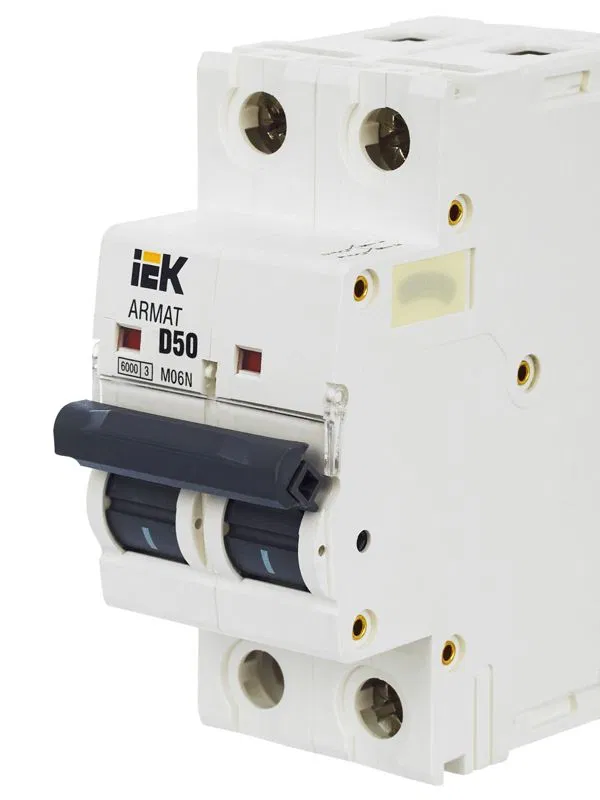

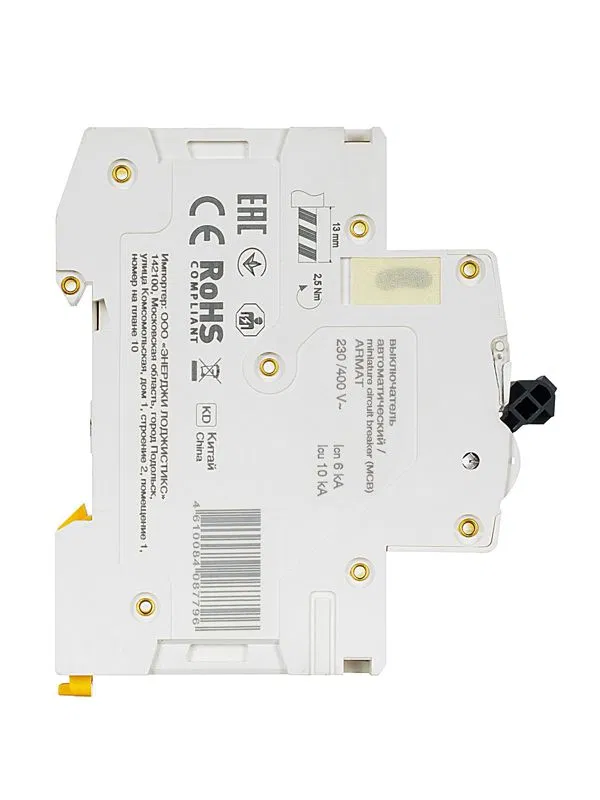

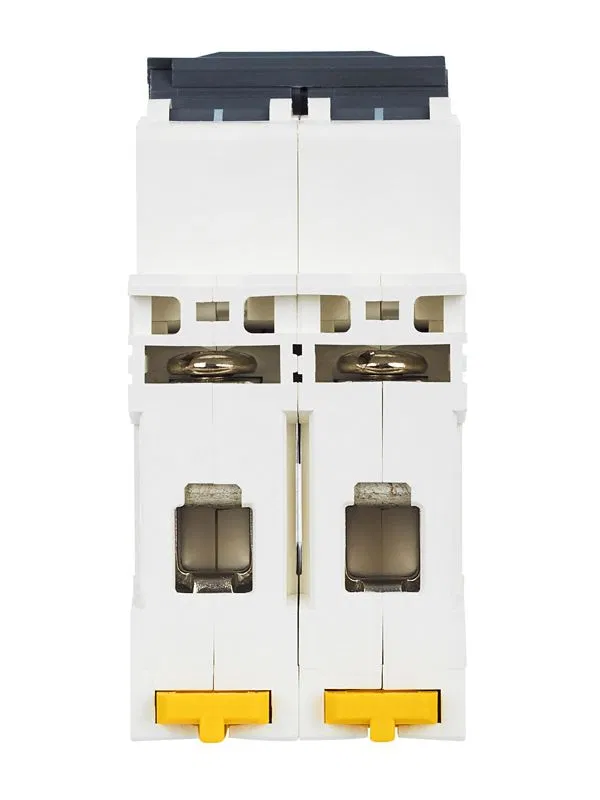

ARMAT Circuit Breaker M06N 2P D 50A IEK AR-M06N-2-D050

SKU: AR-M06N-2-D050 ETIM: EC000042

2,722 ₽

Get back 27 ₽ in points

Stock by warehouse

Manufacturer warehouse August 14 · Delivery to Smolensk Oblast on August 21 308 шт On order Manufacturer warehouse August 14 · Delivery to Smolensk Oblast on August 21 105 шт On order

Description Specifications Reviews

Weight per pole 0.116

Additional equipment possible Yes

Busbar connection capability PIN (pin), FORK (fork)

Release response time in short-circuit range tm 0.1

Electric shock protection class 0

Current limiting class 3

Number of protected poles 2

Number of poles 2

Number of power poles 2

Maximum supply cable cross-section 25 кв.мм

Mech. endurance 20000

Explosion protection present Without explosion protection

Availability of residual current release No

Thermal release available Yes

Electromagnetic release present Yes

Electronic release available No

Rated impulse withstand voltage 6

Rated short-circuit breaking capacity Icu IEC 60898 at 230 V 6.0 кА

Rated short-circuit breaking capacity Icu IEC 60898 at 400 V 6.0 кА

Rated breaking capacity in accordance with EN 60898 6 кА

Rated voltage 400 В

Rated insulation voltage Ui 500 В

Rated current 50.0 А

Total number of poles 2

Power loss 18.0 Вт

Ambient operating temperature to 70 град.C

Ambient operating temperature from -40...70 град.C

Operating mode Continuous-S1

Repairability No

Current type Alternating current (AC)

With switched neutral conductor No

Tripping system Thermal, electromagnetic

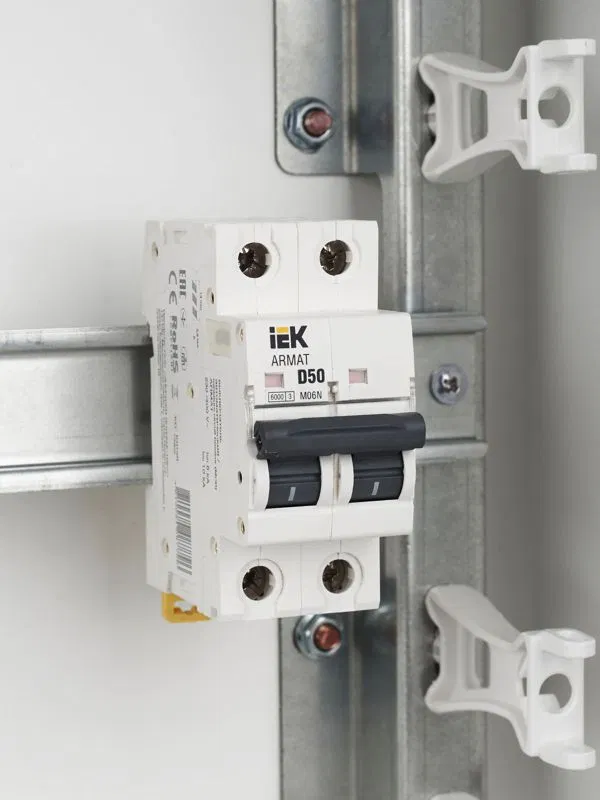

Mounting method On DIN rail

IP protection rating IP20

Application area Domestic

Mounting rail type 35x7.5

Connection type Screw connection

Tripping characteristic It seems your message was cut short. Please provide the text you would like me to translate from Russian to English, and I will follow your instructions strictly.

Frequency 50 Гц

Frequency at 50 Гц

Frequency from 50 Гц

Width in modular units 2

Electrical endurance 10000
