IEK

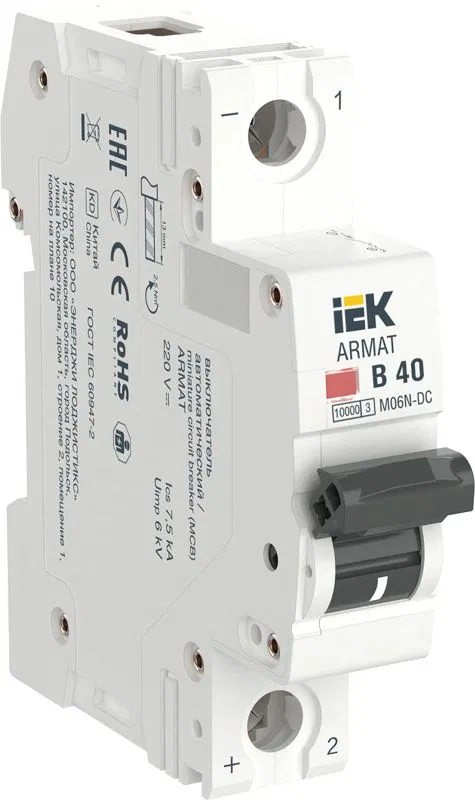

ARMAT Circuit Breaker M06N-DC 1P B 40A IEK AR-M06N-1-B040DC
SKU: AR-M06N-1-B040DC
ETIM: EC000042
495 ₽
Get back 4 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse
ARMAT M06N series automatic circuit breakers are designed for switching DC electrical circuits with voltages up to 1000 V. They protect against short-circuit and overload currents, and also perform control and sectionalizing functions. PIN and FORK busbar connection is available. 160 versions for 15 nominal currents from 1 to 63 A.
Weight per pole
0.118
Additional equipment possible
Yes
Busbar connection capability
PIN (pin), FORK (fork)
Electric shock protection class
0
Number of protected poles
1
Number of poles
1
Number of power poles
1
Maximum supply cable cross-section
25 mm²
Mech. endurance
20000
Rated impulse withstand voltage
6
Rated short-circuit breaking capacity Icu IEC 60898 at 230 V
10.0 kA
Rated short-circuit breaking capacity Icu IEC 60898 at 400 V
10.0 kA
Rated breaking capacity in accordance with EN 60898
10 kA
Rated voltage
220 V
Rated insulation voltage Ui
500 V
Rated DC voltage from
220 V
Rated current
40.0 A
Total number of poles
1
Power loss
7.5 W
Ambient operating temperature to
70 °C
Ambient operating temperature from
-40...70 °C
Current type
Constant (DC)
With time delay
No
Flexible stranded conductor cross-section up to
25 mm²
Stranded flexible conductor cross-section from
1...25 mm²
Solid conductor cross-section to
25 mm²
Solid conductor cross-section from
1...25 mm²
Tripping system
Thermal-magnetic
Mounting method
On DIN rail
Pollution degree (number)
2
IP protection rating
IP20
Application area
Domestic
Connection type
Screw connection
Tripping characteristic
B
Frequency from
- Hz
Width in modular units
1
Electrical endurance
6000
