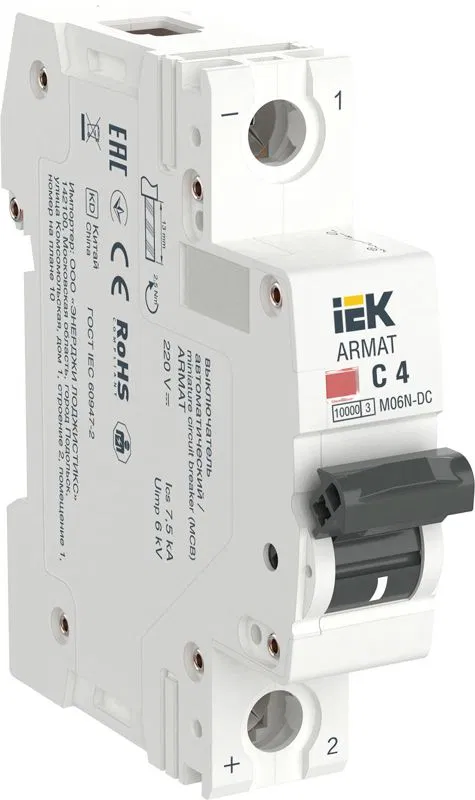

ARMAT M06N series automatic circuit breakers are designed for switching DC electrical circuits with voltages up to 1000 V. They protect against short-circuit and overload currents, and also perform control and sectionalizing functions. PIN and FORK busbar connection is available. 160 versions for 15 nominal currents from 1 to 63 A.
Weight per pole
0.118
Additional equipment possible
Yes
Busbar connection capability
PIN (pin), FORK (fork)
Electric shock protection class
0
Number of protected poles
1
Number of poles
1
Number of power poles
1
Maximum supply cable cross-section
25 кв.мм
Mech. endurance
20000
Rated impulse withstand voltage
6
Rated short-circuit breaking capacity Icu IEC 60898 at 230 V
10.0 кА
Rated short-circuit breaking capacity Icu IEC 60898 at 400 V
10.0 кА
Rated breaking capacity in accordance with EN 60898
10 кА
Rated voltage
220 В
Rated insulation voltage Ui
500 В
Rated DC voltage from
220 В
Rated current
4.0 А
Total number of poles
1
Power loss
3.0 Вт
Ambient operating temperature to
70 град.C
Ambient operating temperature from
-40...70 град.C
Current type
Constant (DC)
With time delay
No
Flexible stranded conductor cross-section up to
25 кв.мм
Stranded flexible conductor cross-section from
1...25 кв.мм
Solid conductor cross-section to
25 кв.мм
Solid conductor cross-section from
1...25 кв.мм
Tripping system
Thermal-magnetic
Mounting method
On DIN rail
Pollution degree (number)
2
IP protection rating
IP20
Application area
Domestic
Connection type
Screw connection
Tripping characteristic
It seems your message was cut off. Please provide the text you would like me to translate from Russian to English, and I will follow your instructions strictly.
Frequency from
Please provide the text you would like me to translate. Гц
Width in modular units
1
Electrical endurance
6000
