IEK
ARMAT Circuit breaker M06N-DC 2P B 0,5A IEK AR-M06N-2-B0D5DC
SKU: AR-M06N-2-B0D5DC
ETIM: EC000042
1,445 ₽
Get back 14 ₽ in points
Analogues by specifications
No description available
Weight per pole
0.118
Additional equipment possible
Yes
Busbar connection capability
PIN (pin), FORK (fork)
Electric shock protection class
0
Number of protected poles
2
Number of poles
2
Number of power poles
2
Maximum supply cable cross-section
25 кв.мм
Mech. endurance
20000
Rated impulse withstand voltage
6
Rated short-circuit breaking capacity Icu IEC 60898 at 230 V
10.0 кА
Rated short-circuit breaking capacity Icu IEC 60898 at 400 V
10.0 кА
Rated breaking capacity in accordance with EN 60898
10 кА
Rated voltage
440 В
Rated insulation voltage Ui
690 В
Rated DC voltage from
440 В
Rated current
0.5 А
Total number of poles
2
Power loss
6.0 Вт
Ambient operating temperature to
70 град.C
Ambient operating temperature from
-40...70 град.C
Current type
Constant (DC)
With time delay
No
Flexible stranded conductor cross-section up to
25 кв.мм
Stranded flexible conductor cross-section from
1...25 кв.мм
Solid conductor cross-section to
25 кв.мм
Solid conductor cross-section from
1...25 кв.мм
Tripping system
Thermal-magnetic
Mounting method
On DIN rail
Pollution degree (number)
2
IP protection rating
IP20
Application area
Domestic
Connection type
Screw connection
Tripping characteristic
Please provide the text you would like me to translate.
Frequency from
Please provide the text you would like me to translate. Гц
Width in modular units
2
Electrical endurance
6000
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
Related products
1114 ₽
CHINT Modular circuit breaker 4p C 20A 4.5kA NXB-63S (R) CHINT 296906
SKU: 296906
1227 ₽
CHINT Modular automatic circuit breaker 1p C 100A 10kA NXB-125 (R) CHINT 816125
SKU: 816125
1501 ₽
CHINT Modular automatic switch 4p B 25A 6kA NXB-63 (R) CHINT 814276
SKU: 814276
2422 ₽

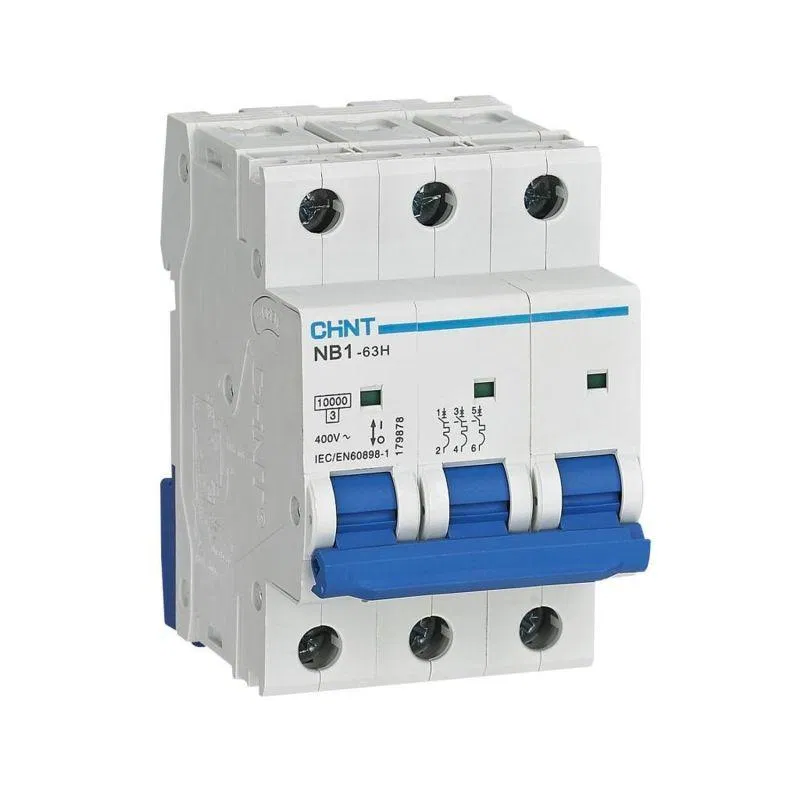

CHINT Modular Circuit Breaker 3P B 10A 6kA NB1-63 (R) CHINT 179684
