IEK

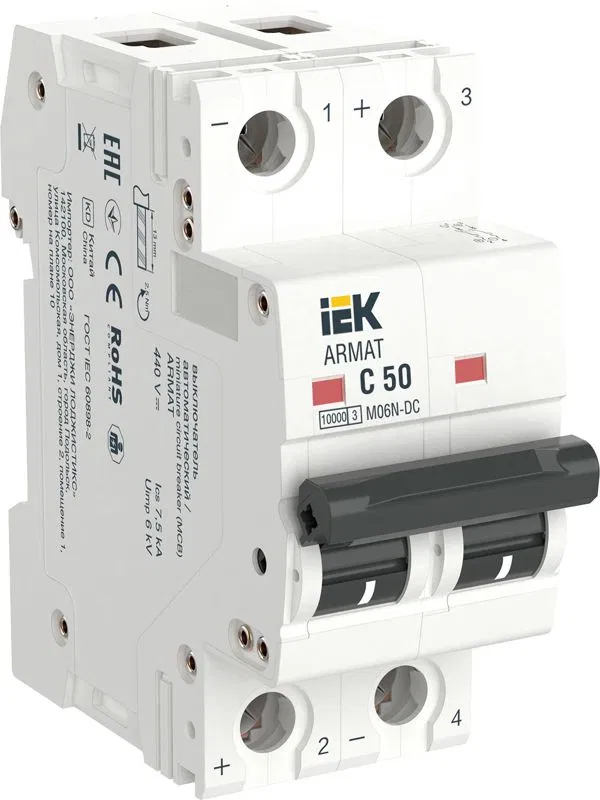

ARMAT Circuit Breaker M06N-DC 2P C 50A IEK AR-M06N-2-C050DC
SKU: AR-M06N-2-C050DC
ETIM: EC000042
1,269 ₽
Get back 12 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
ARMAT M06N series automatic circuit breakers are designed for switching DC electrical circuits with voltages up to 1000 V. They protect against short-circuit and overload currents, and also perform control and sectionalizing functions. PIN and FORK busbar connection is available. 160 versions for 15 nominal currents from 1 to 63 A.
Weight per pole
0.118
Additional equipment possible
Yes
Busbar connection capability
PIN (pin), FORK (fork)
Electric shock protection class
0
Number of protected poles
2
Number of poles
2
Number of power poles
2
Maximum supply cable cross-section
25 кв.мм
Mech. endurance
20000
Rated impulse withstand voltage
6
Rated short-circuit breaking capacity Icu IEC 60898 at 230 V
10.0 кА
Rated short-circuit breaking capacity Icu IEC 60898 at 400 V
10.0 кА
Rated breaking capacity in accordance with EN 60898
10 кА
Rated voltage
440 В
Rated insulation voltage Ui
500 В
Rated DC voltage from
440 В
Rated current
50.0 А
Total number of poles
2
Power loss
18.0 Вт
Ambient operating temperature to
70 град.C
Ambient operating temperature from
-40...70 град.C
Current type
Constant (DC)
With time delay
No
Flexible stranded conductor cross-section up to
25 кв.мм
Stranded flexible conductor cross-section from
1...25 кв.мм
Solid conductor cross-section to
25 кв.мм
Solid conductor cross-section from
1...25 кв.мм
Tripping system
Thermal-magnetic
Mounting method
On DIN rail
Pollution degree (number)
2
IP protection rating
IP20
Application area
Domestic
Connection type
Screw connection
Tripping characteristic
C
Frequency from
- Гц
Width in modular units
2
Electrical endurance
6000
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
