IEK

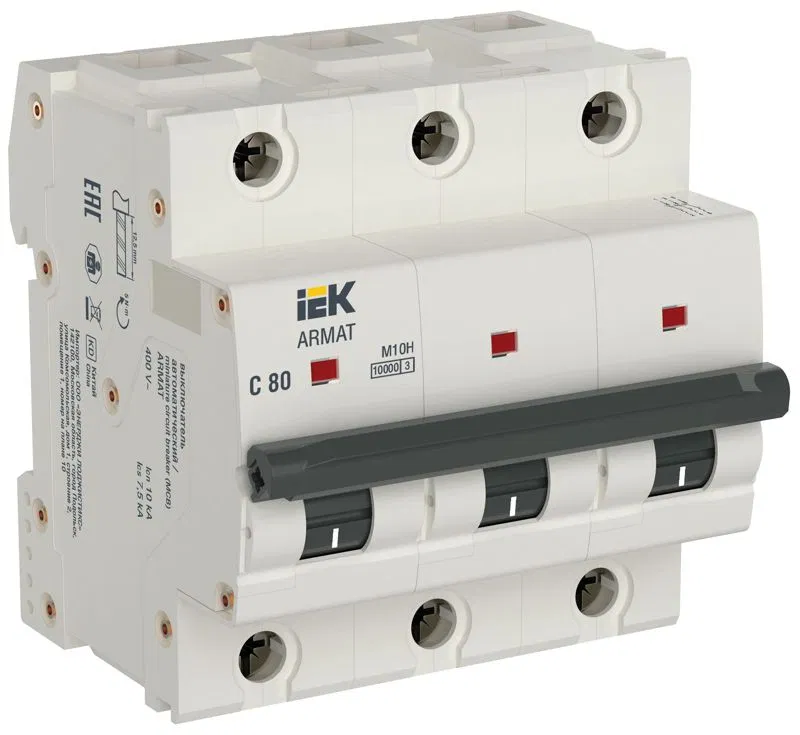

ARMAT Automatic circuit breaker M10H 3P C 80A IEK AR-M10H-3-C080
SKU: AR-M10H-3-C080
ETIM: EC000042
8,502 ₽
Get back 85 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
No description available
Weight per pole
0.2
Additional equipment possible
Yes
Busbar connection capability
PIN (pin)
Electric shock protection class
0
Number of protected poles
3
Number of poles
3
Maximum supply cable cross-section
50 кв.мм
Mech. endurance
20000
Availability of residual current release
No
Thermal release available
Yes
Electromagnetic release present
Yes
Electronic release available
No
Rated impulse withstand voltage
6
Rated short-circuit breaking capacity Icu IEC 60898 at 230 V
10.0 кА
Rated short-circuit breaking capacity Icu IEC 60898 at 400 V
10.0 кА
Rated breaking capacity in accordance with EN 60898
10 кА
Rated impulse voltage
6 кВ
Rated voltage
400 В
Rated insulation voltage Ui
690 В
Rated current
80.0 А
Total number of poles
3
Ambient operating temperature to
70 град.C
Ambient operating temperature from
-40...70 град.C
Operating mode
Continuous-S1
Repairability
No
Current type
Alternating current (AC)
Flexible stranded conductor cross-section up to
35 кв.мм
Stranded flexible conductor cross-section from
1...35 кв.мм
Solid conductor cross-section to
50 кв.мм
Solid conductor cross-section from
1...50 кв.мм
Tripping system
Thermal, electromagnetic
Mounting method
On DIN rail
Pollution degree (number)
2
IP protection rating
IP20
Application area
Industrial and domestic
Connection type
Screw connection
Tripping characteristic
C
Frequency
50 Гц
Frequency at
50 Гц
Frequency from
50 Гц
Width in modular units
3
Electrical endurance
5000
