IEK

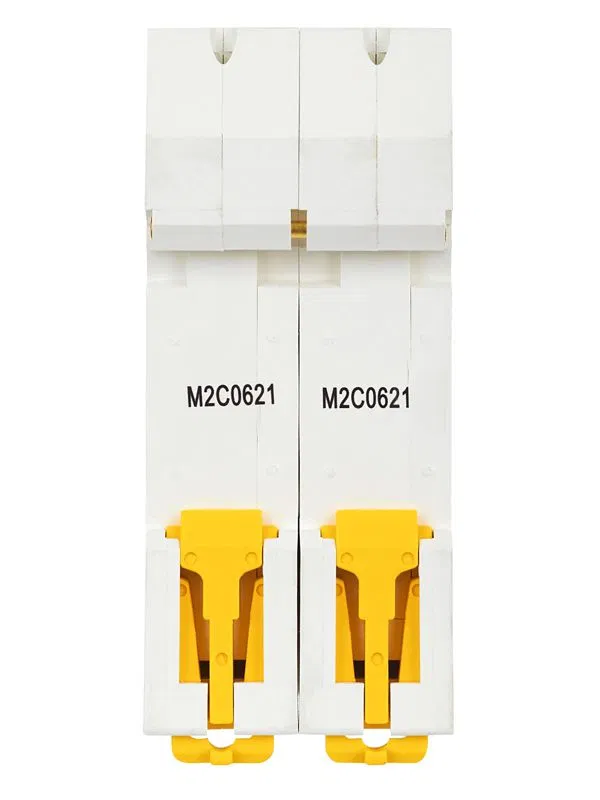

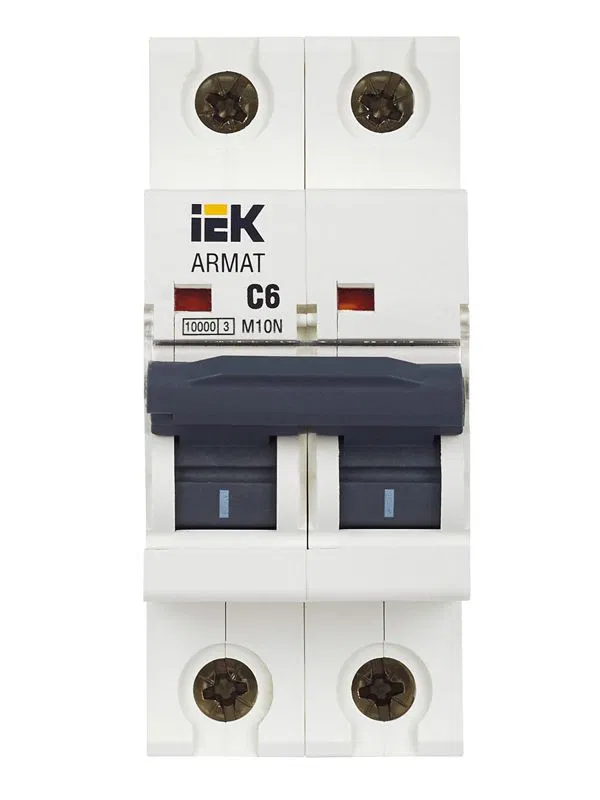

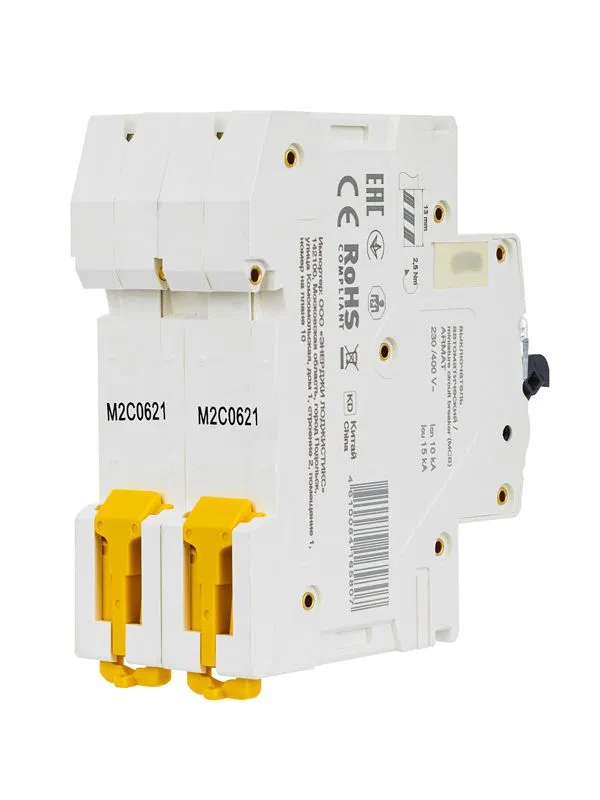

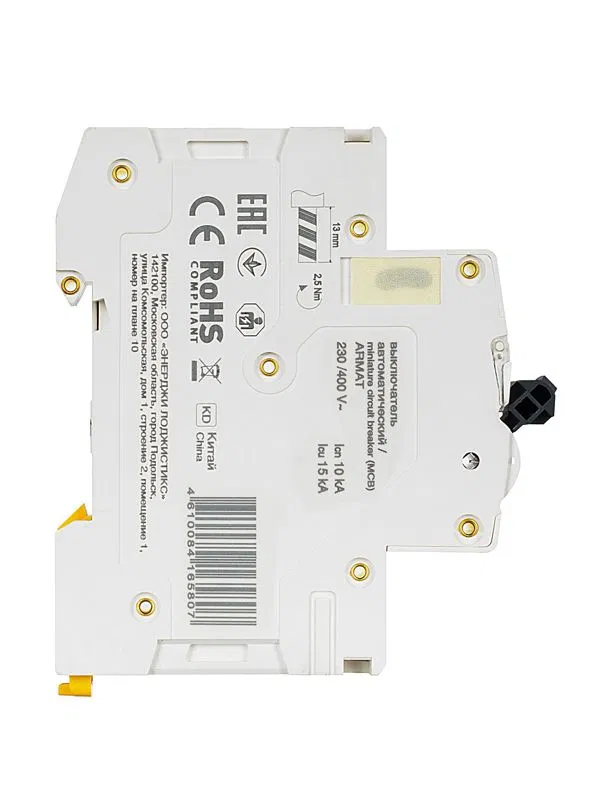

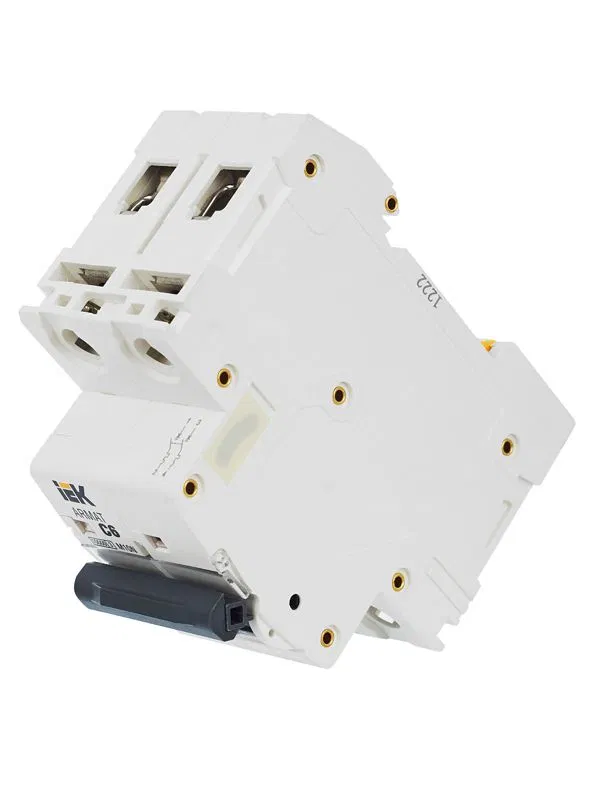

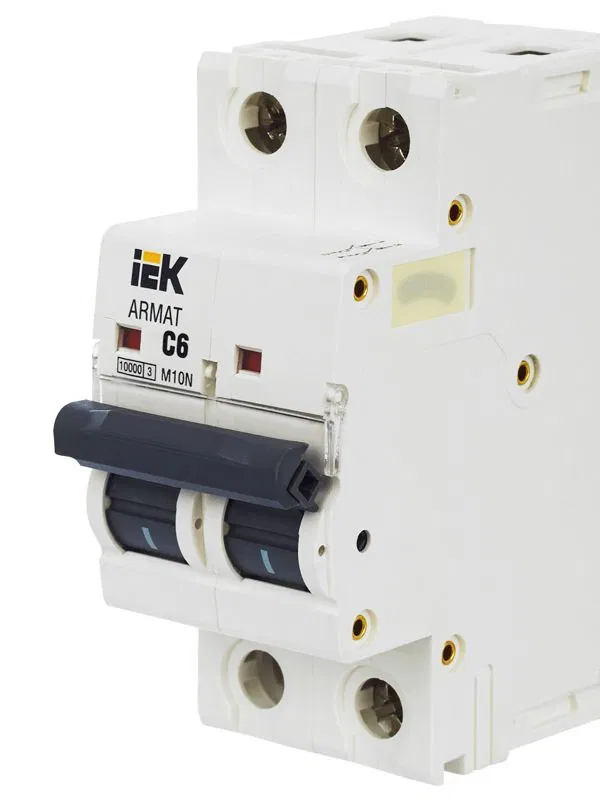

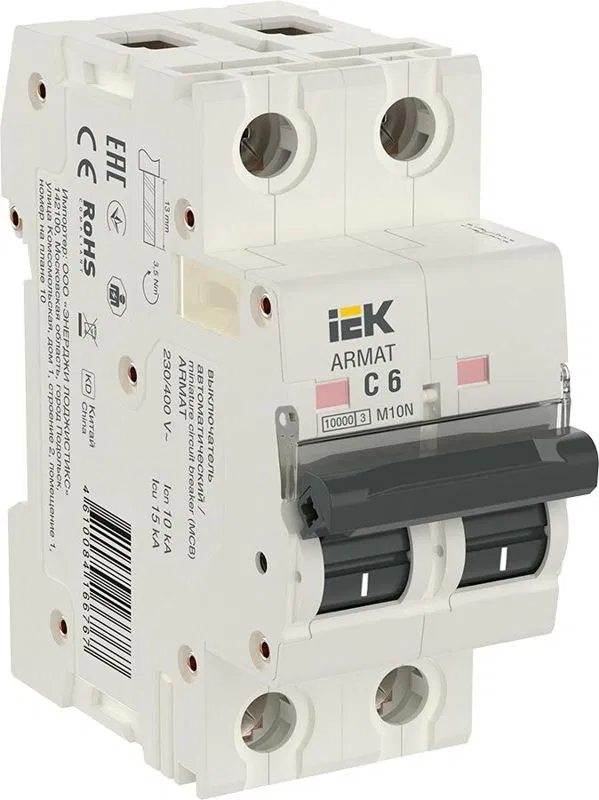

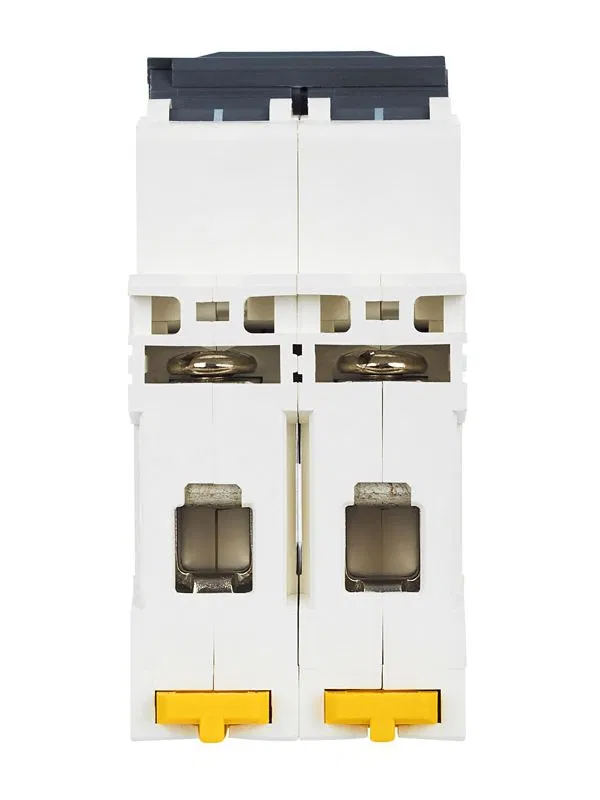

Modular automatic circuit breaker 2p C 6A M10N ARMAT IEK AR-M10N-2-C006
SKU: AR-M10N-2-C006
ETIM: EC000042
2,622 ₽
Get back 26 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
ARMAT M10N series circuit breakers are designed to protect circuits from overload and short circuits. The product range includes devices with B, C, D tripping characteristics and rated currents from 0.5 to 63 A. The rated breaking capacity of ARMAT M10N series circuit breakers is 10 kA. The ultimate breaking capacity varies depending on the rating from 10 to 50 kA.
Weight per pole
0.116
Additional equipment possible
Yes
Busbar connection capability
PIN (pin), FORK (fork)
Release response time in short-circuit range tm
0.1
Electric shock protection class
0
Current limiting class
3
Number of protected poles
2
Number of poles
2
Number of power poles
2
Maximum supply cable cross-section
25 кв.мм
Mech. endurance
20000
Explosion protection present
Without explosion protection
Availability of residual current release
No
Thermal release available
Yes
Electromagnetic release present
Yes
Electronic release available
No
Rated impulse withstand voltage
6
Rated short-circuit breaking capacity Icu IEC 60898 at 230 V
10.0 кА
Rated short-circuit breaking capacity Icu IEC 60898 at 400 V
10.0 кА
Rated breaking capacity in accordance with EN 60898
10 кА
Rated voltage
400 В
Rated insulation voltage Ui
500 В
Rated current
6.0 А
Total number of poles
2
Power loss
6.0 Вт
Ambient operating temperature to
70 град.C
Ambient operating temperature from
-40...70 град.C
Operating mode
Continuous-S1
Repairability
No
Current type
Alternating current (AC)
With switched neutral conductor
No
Tripping system
Thermal, electromagnetic

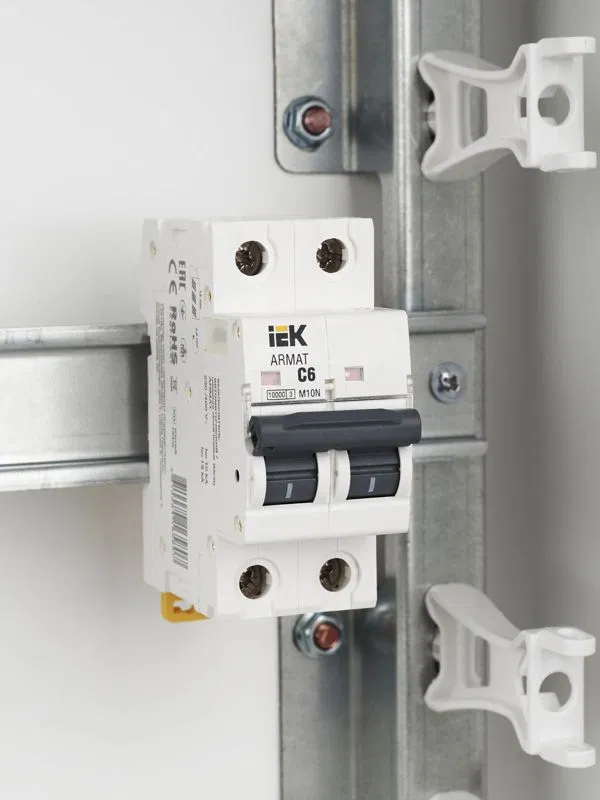

Mounting method
On DIN rail
IP protection rating
IP20
Application area
Domestic
Mounting rail type
35x7.5
Connection type
Screw connection
Tripping characteristic
C
Frequency
50 Гц
Frequency at
50 Гц
Frequency from
50 Гц
Width in modular units
2
Electrical endurance
10000
