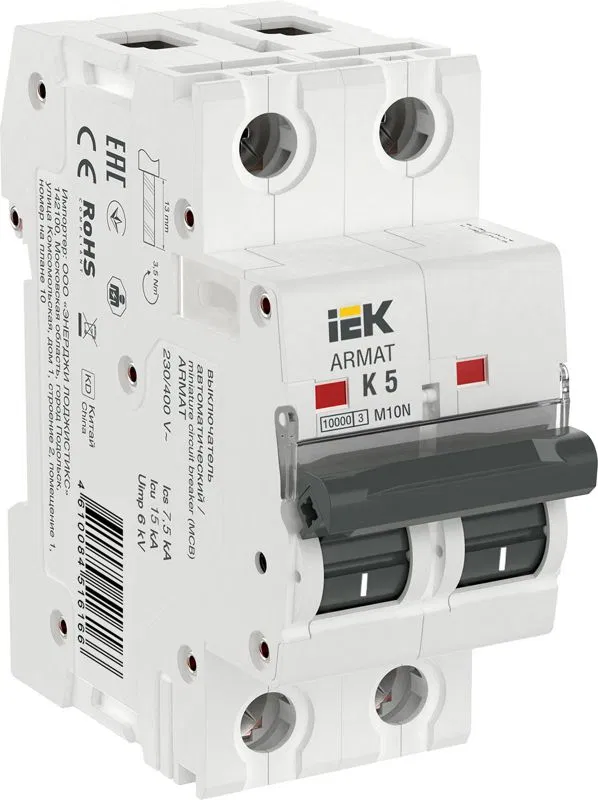

M10N circuit breakers are designed to protect distribution and group circuits with varying loads.
Modular circuit breakers with Z, K, L characteristics have successfully passed testing according to the IEC 60947-2 standard. They possess all the advantages of the ARMAT series modular equipment: increased housing strength, reinforced arc quenching chamber, independent trip mechanism, etc.
This type of circuit breaker is recommended for use in incoming and distribution devices for industrial and energy infrastructure facilities.
Weight per pole
0.118
Additional equipment possible
Yes
Busbar connection capability
PIN (pin), FORK (fork)
Electric shock protection class
0
Number of protected poles
2
Number of poles
2
Maximum supply cable cross-section
25 кв.мм
Mech. endurance
20000
Explosion protection present
Without explosion protection
Availability of residual current release
No
Thermal release available
Yes
Electromagnetic release present
Yes
Electronic release available
No
Rated impulse withstand voltage
6
Rated short-circuit breaking capacity Icu IEC 60898 at 230 V
7.5 кА
Rated short-circuit breaking capacity Icu IEC 60898 at 400 V
7.5 кА
Rated breaking capacity in accordance with EN 60898
7.5 кА
Rated voltage
400 В
Rated insulation voltage Ui
500 В
Rated current
5.0 А
Total number of poles
2
Suitable for load-break switch
Yes
Suitable for motor protection switch
Yes
Power loss
6.0 Вт
Ambient operating temperature to
40 град.C
Ambient operating temperature from
-5...40 град.C
Operating mode
Continuous-S1
Repairability
No
Current type
Alternating current (AC)
Switch-on current type
Alternating current (AC)
With switched neutral conductor
Yes
Flexible stranded conductor cross-section up to
25 кв.мм
Stranded flexible conductor cross-section from
1...25 кв.мм
Solid conductor cross-section to
25 кв.мм
Solid conductor cross-section from
1...25 кв.мм
Tripping system
Thermal, electromagnetic
Mounting method
On DIN rail
IP protection rating
IP20
Application area
Domestic
Mounting rail type
TN-35
Connection type
Screw connection
Tripping characteristic
K
Frequency
50 Гц
Frequency at
50 Гц
Frequency from
50 Гц
Width in modular units
2
Electrical endurance
10000
