IEK

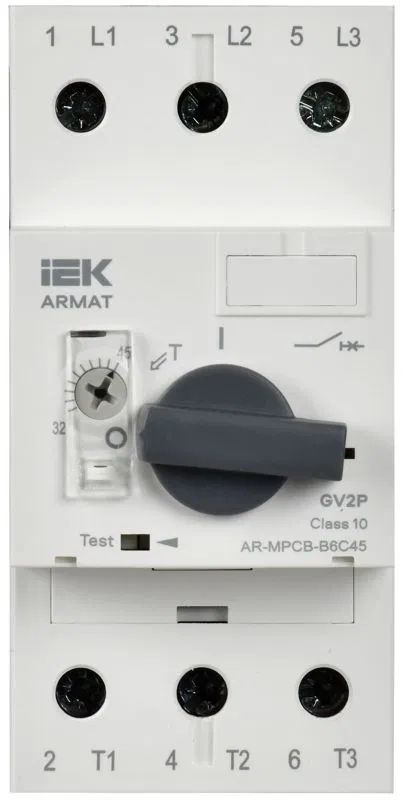

ARMAT Motor protection circuit breaker B6 GV2P 32-45A IEK AR-MPCB-B6C45
SKU: AR-MPCB-B6C45
ETIM: EC000074
7,996 ₽
Get back 79 ₽ in points
Analogues by specifications
ARMAT series GV2P type motor protection circuit breaker is designed for controlling electric drives with three-phase asynchronous electric motors and for protection against overload, short circuits, and phase failure.
The circuit breaker protects electric motor working parts from overloads during startup, as starting currents when switching on the motor can significantly exceed rated values. The circuit breaker provides precise adjustment and flexible response to peak starting currents. Effective protection against current surges during electric motor startup contributes to increasing the service life of electrical appliances.
In terms of its design and technical characteristics, the ARMAT series GV2P type motor protection circuit breaker complies with the requirements of TR CU 004/2011, TR EAEU 037/2016.
Weight
0.74 кг
Height
110.0 мм
Height
110.0 мм
Depth
105.9 мм
Overload protection device setting range to
45 А
Setting range of overload protection device from
32...45 А
Instantaneous short-circuit release setting range from
Please provide the text you would like me to translate. А
Tripping - protection class
10
Number of poles
3
Switching overvoltage
≤ 8000
Design
Built-in device for built-in appliances
Rated impulse withstand voltage
9
Rated power for motor control in AC-3 application, 230 V
11.00
Rated motor power for AC-3 application 400V
18.50
Rated motor power in AC-3 application 660V
30.00
Rated ultimate short-circuit breaking capacity Icu 230 V
100
Rated short-circuit breaking capacity Icu 400V
50
Rated ultimate short-circuit breaking current Icu 660 V
5
Rated service short-circuit breaking current Ics 230 V
100
Rated service short-circuit breaking current Ics, 400 V
50.0
Rated service short-circuit breaking capacity Ics 660 V
5.00
Rated frequency
50
Rated ultimate breaking capacity Icu at 400V AC
50 кА
Rated voltage
230/400/690 В
Rated insulation voltage Ui
690 В
Rated current
45.0 А
Rated continuous current Iu
45 А
Repairability
No
With overheating protection
Yes
Tripping system
Thermal-magnetic
With built-in auxiliary switch
No
With built-in undervoltage release
No
Mounting method
On DIN rail
IP protection rating
IP20
Connection type
Screw connection
Main electrical circuit connection type
Screw connection
Electromagnetic release setting
585.0
Phase failure sensitive
Yes
Width
54.0 мм
Electrical or mechanical endurance
12000
