IEK

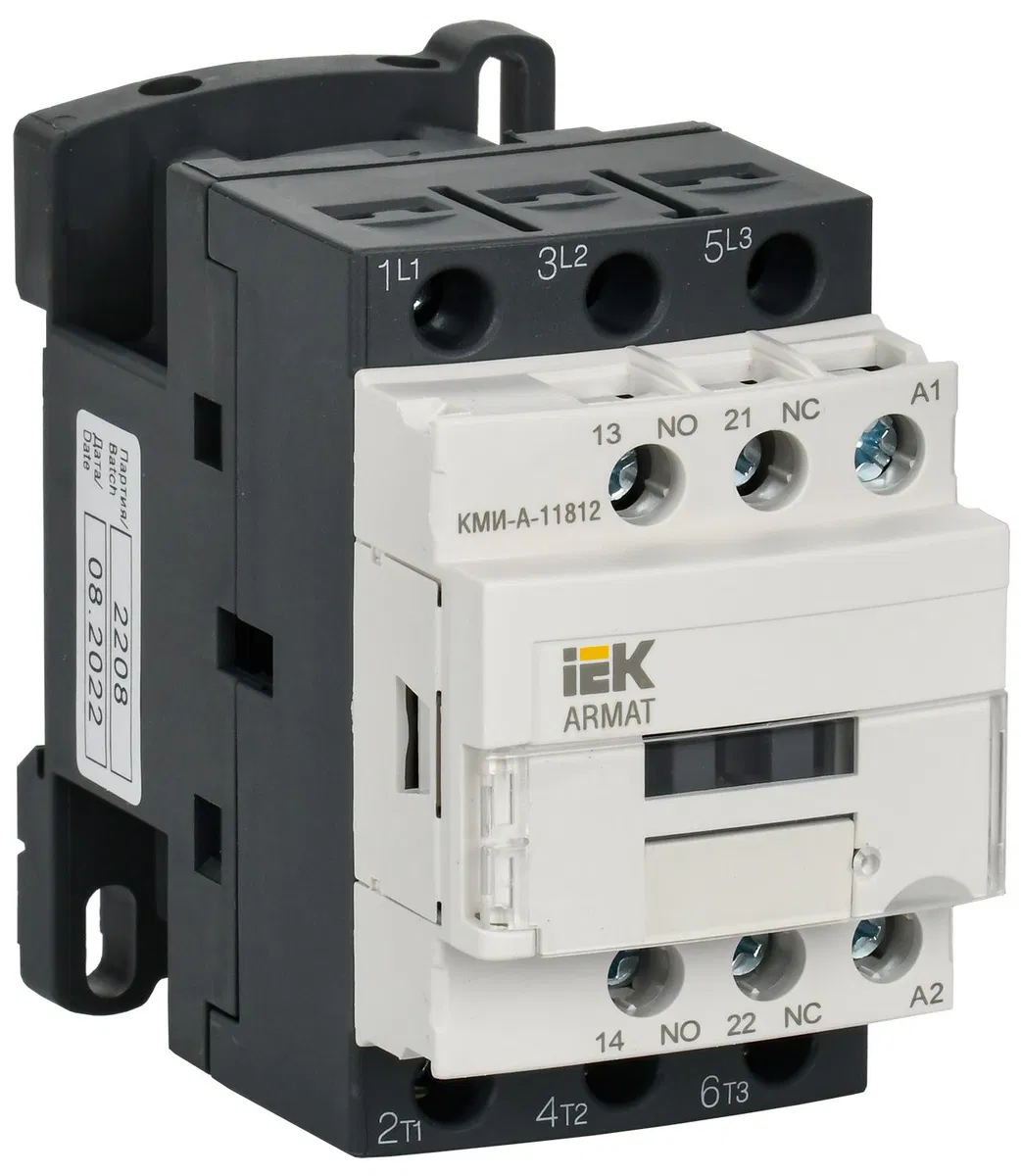

ARMAT Contactor KMI-A-11812 LC1D 18A 24V/AC3 1NO/1NC IEK AR-ACC-11-018-024-11
SKU: AR-ACC-11-018-024-11
ETIM: EC000066
136,200 ₽
Get back 1,362 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Order multiple: 50 шт
Analogues by specifications
Stock by warehouse
No description available
Response time on closing - control circuit
22
Response time on opening - control circuit
19
Height
77.0 мм
Height
77.0 мм
Flexible cable without ferrule - main circuit
6
Depth
86.0 мм
Release voltage range - control circuit
0.3...0.6
Operating voltage range - control circuit
0.8...1.1
Solid cable without ferrule - main circuit
6
Overcurrent protection - gG fuse - main circuit
50
Overcurrent protection - gG fuse - additional input contact
10
Climatic version
UKhL4
Number of auxiliary NO contacts
1
Number of auxiliary break contacts
1
Number of main NO contacts
3
Number of main NC contacts
0
Switching wear life - total resource (Hz)
2.1
Tightening torque - main circuit
1.7
Max. short-time load - main circuit
240
Max short-term load - additional input contact
140
Mechanical endurance - main circuit
15
Mechanical durability - control circuit
15.0
Minimum making capacity Imin - auxiliary circuit contact
0
Min. making capacity Umin - aux. contact circuit
17
Modular design
No
Coil power consumption at pick-up Uc - control circuit
70.0
Coil power consumption at holding Uc - control circuit
7.0
Power dissipation at Ie AC-1 (Hz)
2.50
Power dissipation at Ie AC-3 (Hz)
0.80
Rated impulse voltage Uimp - main circuit
6
Rated voltage Un AC - additional auxiliary circuit contact
690
Rated insulation voltage Ui - main circuit
690
Rated insulation voltage Ui-aux. contact circuit
690
Rated AC operating voltage Ue - main circuit
690
Rated power at AC-3, 400 V
7.5 кВт
Rated control supply voltage Us AC at 50 Hz up to
24 В
Rated control supply voltage Us AC at 50 Hz from
24 В
Rated control supply voltage Us DC from
- В
Rated operational current Ie at AC-1, 400 V
32 А
Rated operating current Ie at AC-3, 400 V
18 А
Switch-on current type
Alternating current (AC)
Light indication
No
IP protection rating
IP20
Operating temperature from
-25...50 град.C
Main electrical circuit connection type
Screw connection
Electronic relay design
RTI-1321
Thermal withstand current Ith, aux. contact circuit
10
Conventional thermal current Ith at AC-1 - main circuit
32
Conditional short-circuit current Inc - main circuit
3000
Switching frequency for switching endurance per hour - main circuit
3600
Switching frequency for mechanical durability per hour - main circuit
3600
Width
45.0 мм
