IEK

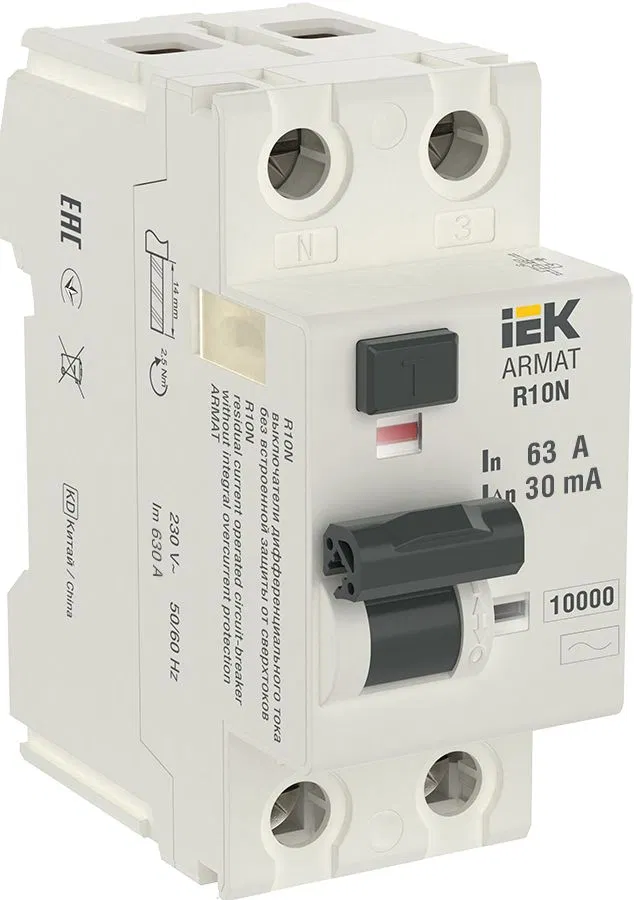

ARMAT Residual Current Circuit Breaker R10N 2P 63A 30mA type AC IEK AR-R10N-2-063C030
SKU: AR-R10N-2-063C030
ETIM: EC000905
32,268 ₽
Get back 322 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Order multiple: 6 шт
Analogues by specifications
Stock by warehouse
ARMAT R10N series residual current devices provide protection against electric shock to humans, as well as fire protection in case of a ground fault. The model range includes devices with differential current protective characteristics of types AC, A, AC-S, A-S; rated currents from 25 to 100 A; rated residual currents from 10 to 300mA. The rated breaking capacity of ARMAT R10N series RCD is 10 kA.
Weight
0.2 кг
Additional equipment possible
No
Mounting installation depth
76.0 мм
Number of poles
2
Maximum supply cable cross-section
25 кв.мм
Mech. endurance
10000
Tightening torque from
5 Н·м
Rated impulse withstand voltage
4
Rated non-tripping residual current
15.0
Rated leakage current
0.03
Rated ultimate breaking capacity (Icw)
10 кА
Rated voltage
230 В
Rated insulation voltage Ui
500 В
Rated voltage from
230 В
Rated current
63 А
Rated current
63 А
Rated leakage current
.03 мА
Shunt rated current
63 А
Ambient operating temperature to
45 град.C
Ambient operating temperature from
-25...45 град.C
Leakage current adjustment
No
Adjustable delay time
No
Operating mode
Continuous-S1
With short-time delayed tripping
No
With interlock device
No
Selective protection
No
Flexible stranded conductor cross-section up to
16 кв.мм
Stranded flexible conductor cross-section from
1.5...16 кв.мм
Solid conductor cross-section to
25 кв.мм
Solid conductor cross-section from
1.5...25 кв.мм
Mounting method
On DIN rail
IP protection rating
IP20
Installation size (in accordance with DIN 43880)
2
Residual current type
Alternating current (AC)
Conditional rated residual short-circuit current
10
Resistance to current surges
- кА
Frequency
50 Hz Гц
Frequency (Hz)
50 Hz
Width in modular units
2
Electrical endurance
6000
