IEK

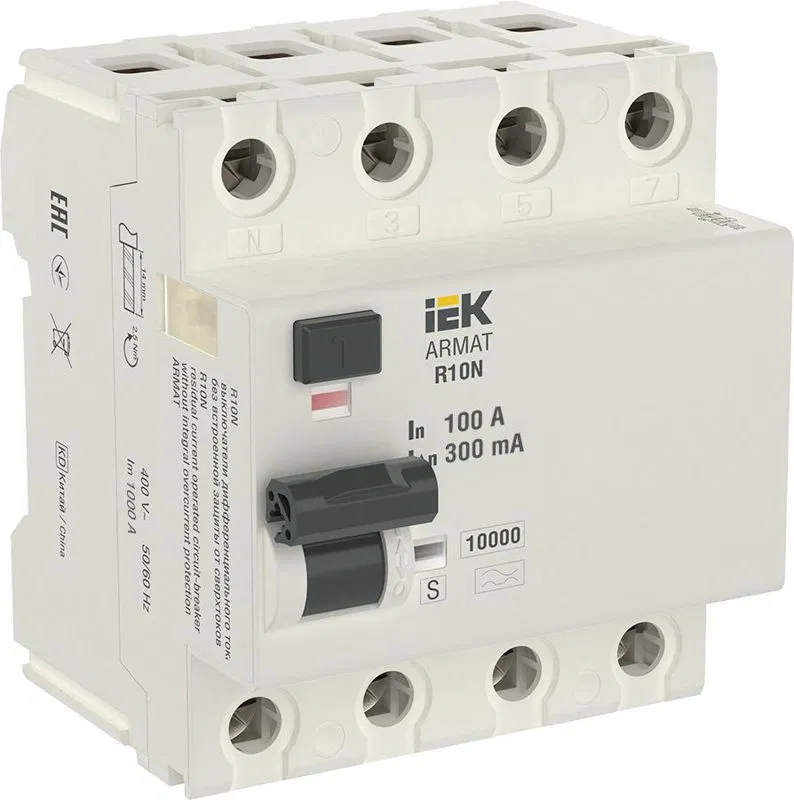

ARMAT Residual Current Circuit Breaker R10N 4P 100A 300mA type A-S IEK AR-R10N-4-100AS300
SKU: AR-R10N-4-100AS300
ETIM: EC000003
18,479 ₽
Get back 184 ₽ in points
Analogues by specifications
No description available
Weight
0.4 кг
Additional equipment possible
No
Mounting installation depth
76.0 мм
Number of poles
4
Maximum supply cable cross-section
35 кв.мм
Mech. endurance
10000
Tightening torque from
5 Н·м
Rated impulse withstand voltage
4
Rated non-tripping residual current
150.0
Rated leakage current
0.30
Rated ultimate breaking capacity (Icw)
10 кА
Rated voltage
400 В
Rated insulation voltage Ui
500 В
Rated voltage from
400 В
Rated current
100 А
Rated current
100 А
Rated leakage current
It appears your message contains only ".3". Please provide the text you would like me to translate from Russian to English, and I will follow your instructions strictly. мА
Ambient operating temperature to
45 град.C
Ambient operating temperature from
-25...45 град.C
Leakage current adjustment
No
Adjustable delay time
No
Operating mode
Continuous-S1
With short-time delayed tripping
Yes
With interlock device
No
Selective protection
Yes
Flexible stranded conductor cross-section up to
35 кв.мм
Stranded flexible conductor cross-section from
1.5...35 кв.мм
Solid conductor cross-section to
35 кв.мм
Solid conductor cross-section from
1.5...35 кв.мм
Mounting method
On DIN rail
IP protection rating
IP20
Installation size (in accordance with DIN 43880)
4
Residual current type
Please provide the text you would like me to translate.
Conditional rated residual short-circuit current
10
Resistance to current surges
Please provide the text you would like me to translate. кА
Frequency
50 Hz Гц
Frequency (Hz)
50 Hz
Width in modular units
4
Electrical endurance
6000
