IEK

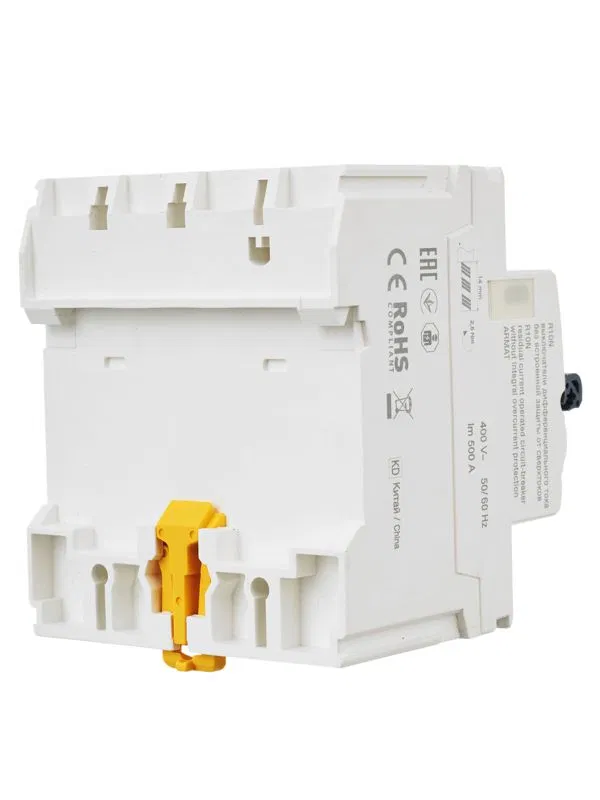

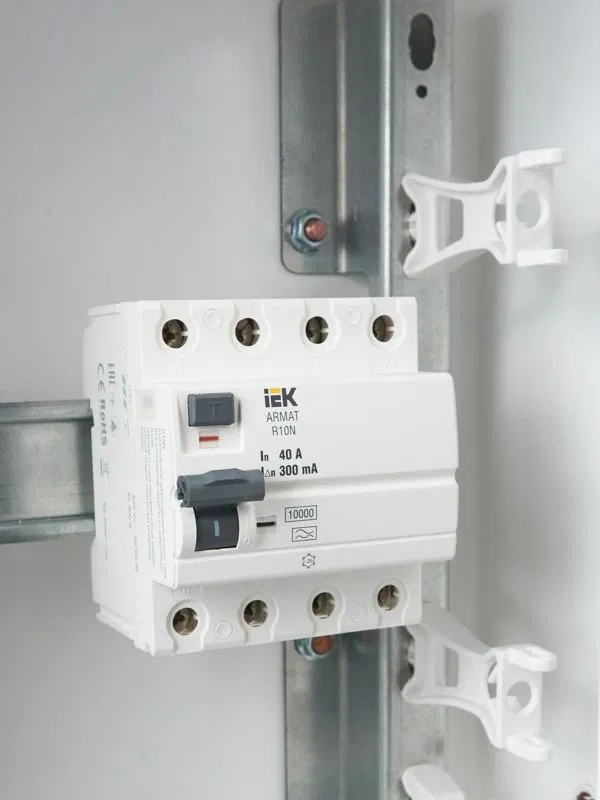

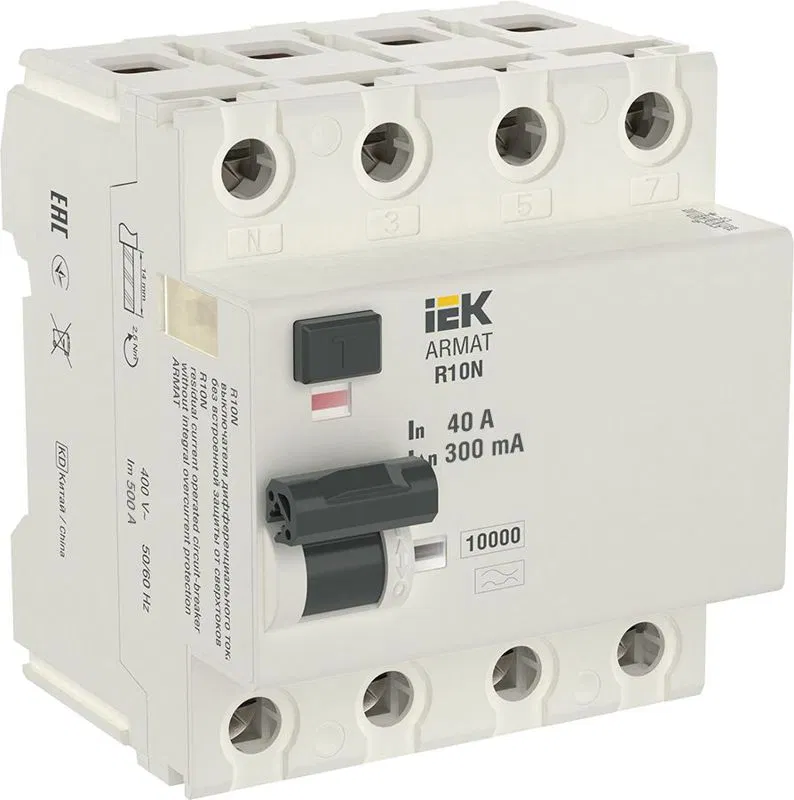

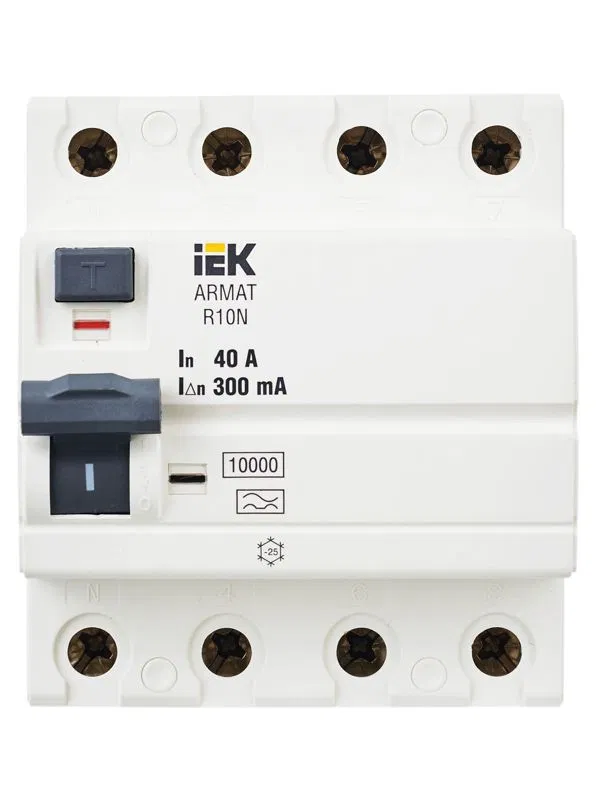

ARMAT Residual Current Circuit Breaker R10N 4P 40A 300mA type A IEK AR-R10N-4-040A300
SKU: AR-R10N-4-040A300
ETIM: EC000003
7,927 ₽
Get back 79 ₽ in points
Analogues by specifications
ARMAT R10N series residual current devices provide protection against electric shock to humans, as well as fire protection in case of a ground fault. The model range includes devices with differential current protective characteristics of types AC, A, AC-S, A-S; rated currents from 25 to 100 A; rated residual currents from 10 to 300mA. The rated breaking capacity of ARMAT R10N series RCD is 10 kA.
Weight
0.3 кг
Additional equipment possible
No
Mounting installation depth
76.0 мм
Number of poles
4
Maximum supply cable cross-section
25 кв.мм
Mech. endurance
10000
Tightening torque from
5 Н·м
Rated impulse withstand voltage
4
Rated non-tripping residual current
150.0
Rated leakage current
0.30
Rated ultimate breaking capacity (Icw)
10 кА
Rated voltage
400 В
Rated insulation voltage Ui
500 В
Rated voltage from
400 В
Rated current
40 А
Rated current
40 А
Rated leakage current
It appears your message contains only ".3". Please provide the text you would like me to translate from Russian to English, and I will follow your instructions strictly. мА
Ambient operating temperature to
45 град.C
Ambient operating temperature from
-25...45 град.C
Leakage current adjustment
No
Adjustable delay time
No
Operating mode
Continuous-S1
With short-time delayed tripping
No
With interlock device
No
Selective protection
No
Flexible stranded conductor cross-section up to
16 кв.мм
Stranded flexible conductor cross-section from
1.5...16 кв.мм
Solid conductor cross-section to
25 кв.мм
Solid conductor cross-section from
1.5...25 кв.мм
Mounting method
On DIN rail
IP protection rating
IP20
Installation size (in accordance with DIN 43880)
4
Residual current type
Please provide the text you would like me to translate.
Conditional rated residual short-circuit current
10
Resistance to current surges
Please provide the text you would like me to translate. кА
Frequency
50 Hz Гц
Frequency (Hz)
50 Hz
Width in modular units
4
Electrical endurance
6000
