IEK

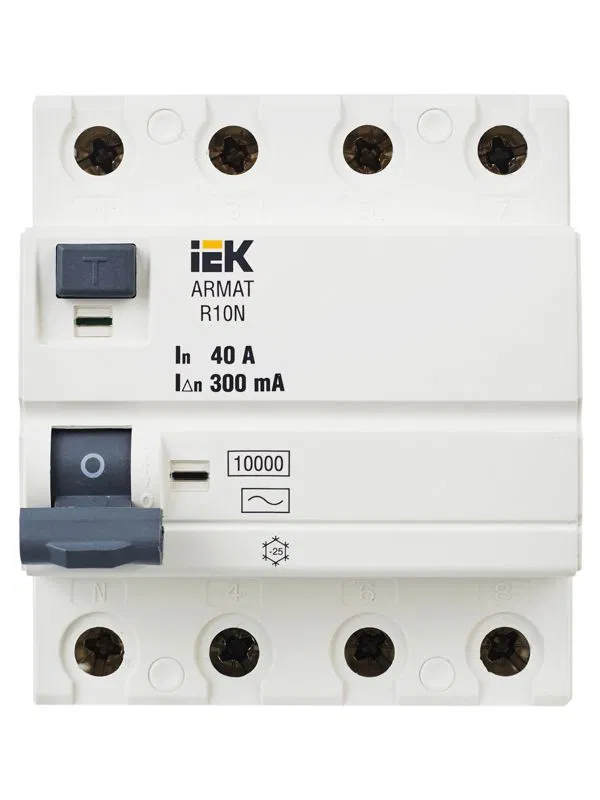

ARMAT RCCB R10N 4P 40A 300mA type AC IEK AR-R10N-4-040C300
SKU: AR-R10N-4-040C300
ETIM: EC000905
6089 ₽
Price list (incl. VAT):
8119 ₽
Available August 18
Order multiple: 3
Availability
| Warehouse | Qty | Unit | Ready for pickup | Delivery to Smolensk | |
|---|---|---|---|---|---|
|
Manufacturer warehouse
Available
|
10 | шт | August 18 | August 18 |
Select a warehouse to order
ARMAT R10N series residual current devices provide protection against electric shock to humans, as well as fire protection in case of a ground fault. The model range includes devices with differential current protective characteristics of types AC, A, AC-S, A-S; rated currents from 25 to 100 A; rated residual currents from 10 to 300mA. The rated breaking capacity of ARMAT R10N series RCD is 10 kA.
| Weight | 0.3 кг |
| Additional equipment possible | No |
| Mounting installation depth | 76.0 мм |
| Number of poles | 4 |
| Maximum supply cable cross-section | 25 кв.мм |
| Mech. endurance | 10000 |
| Tightening torque from | 5 Н·м |
| Rated impulse withstand voltage | 4 |
| Rated non-tripping residual current | 150.0 |
| Rated leakage current | 0.30 |
| Rated ultimate breaking capacity (Icw) | 10 кА |
| Rated voltage | 400 В |
| Rated insulation voltage Ui | 500 В |
| Rated voltage from | 400 В |
| Rated current | 40 А |
| Rated current | 40 А |
| Rated leakage current | It appears your message contains only ".3". Please provide the text you would like me to translate from Russian to English, and I will follow your instructions strictly. мА |
| Ambient operating temperature to | 45 град.C |
| Ambient operating temperature from | -25...45 град.C |
| Leakage current adjustment | No |
| Adjustable delay time | No |
| Operating mode | Continuous-S1 |
| With short-time delayed tripping | No |
| With interlock device | No |
| Selective protection | No |
| Flexible stranded conductor cross-section up to | 16 кв.мм |
| Stranded flexible conductor cross-section from | 1.5...16 кв.мм |
| Solid conductor cross-section to | 25 кв.мм |
| Solid conductor cross-section from | 1.5...25 кв.мм |

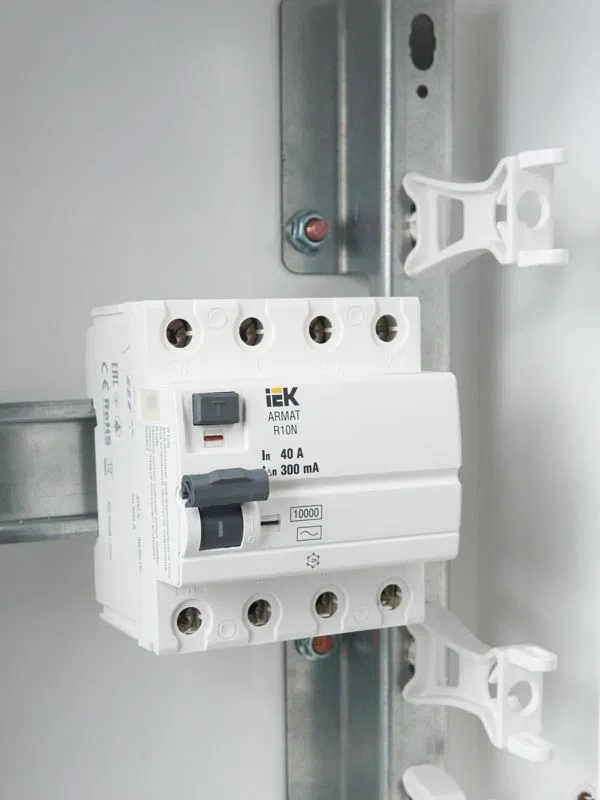

| Mounting method | On DIN rail |
| IP protection rating | IP20 |
| Installation size (in accordance with DIN 43880) | 4 |
| Residual current type | Alternating current (AC) |
| Conditional rated residual short-circuit current | 10 |
| Resistance to current surges | Please provide the text you would like me to translate. кА |
| Frequency | 50 Hz Гц |
| Frequency (Hz) | 50 Hz |
| Width in modular units | 4 |
| Electrical endurance | 6000 |
