270 ₽
Analogues by specifications
Stock by warehouse

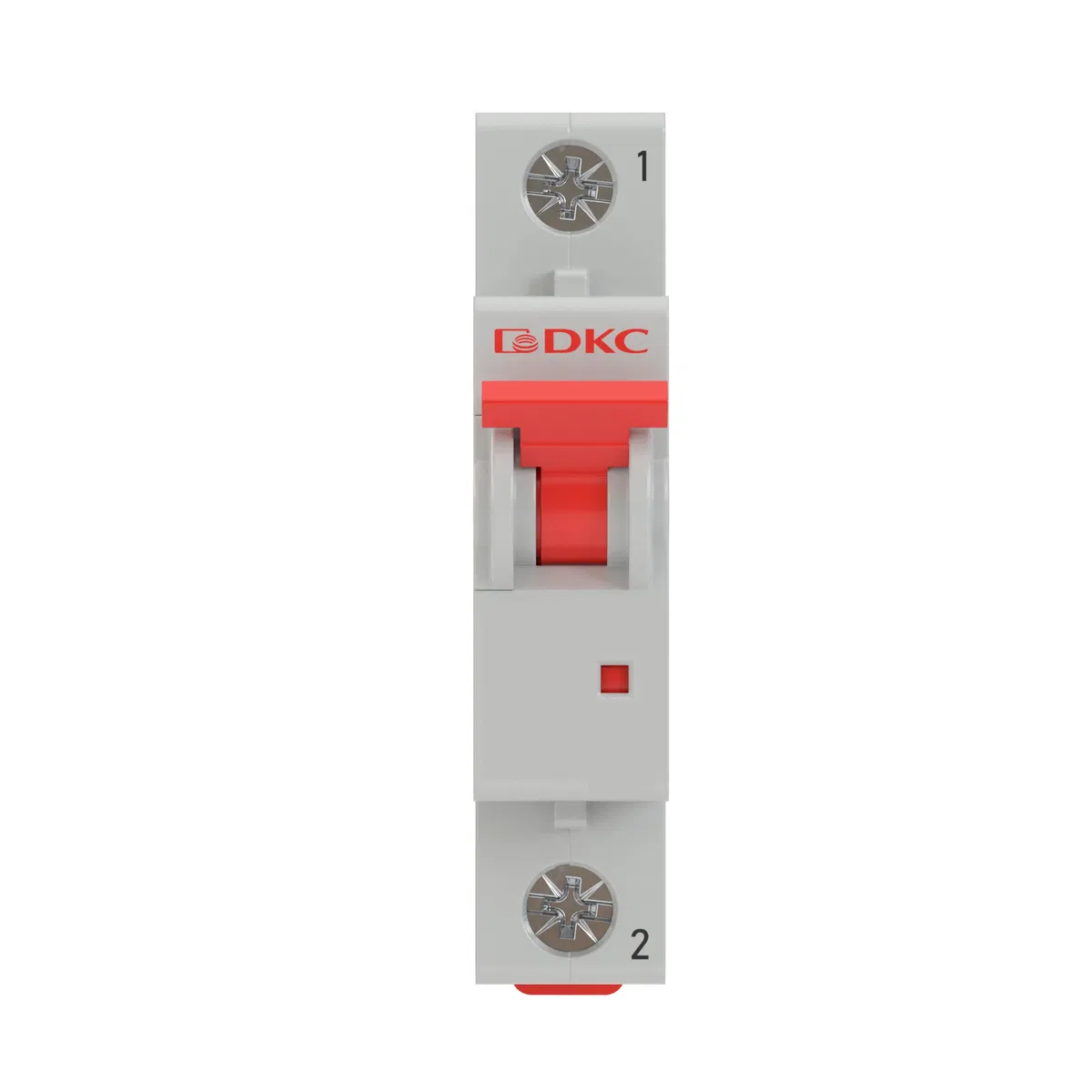

Modular single-pole circuit breaker YON MD63 rated 10 A with trip characteristic "C" and breaking capacity 6 kA is designed for use in electrical circuits with voltage up to 400 V AC at a frequency of 50 Hz, for their protection against overloads and short circuits, for carrying current in normal mode and for rapid switching of the specified circuits. An independent release in a separate module and auxiliary contacts in a separate module can be attached to the circuit breaker. The independent release and auxiliary contacts are ordered separately and installed on the circuit breakers by the consumer as needed.
Additional equipment possible
Yes
Mounting installation depth
69.9 мм
For flush mounting
No
Number of protected poles
1
Rated short-circuit breaking capacity Icu IEC 60898 at 230 V
6 кА
Rated short-circuit breaking capacity Icu IEC 60898 at 400 V
6 кА
Rated breaking capacity in accordance with EN 60898
6 кА
Rated impulse voltage
4 кВ
Rated voltage
230 В
Rated insulation voltage Ui
230 В
Rated current
10 А
Total number of poles
1
Ambient operating temperature to
30 град.C
Ambient operating temperature from
30 град.C
Current type
Alternating current (AC)
With switched neutral conductor
No
Flexible stranded conductor cross-section up to
25 кв.мм
Stranded flexible conductor cross-section from
25 кв.мм
Solid conductor cross-section to
25 кв.мм
Solid conductor cross-section from
25 кв.мм
Pollution degree (number)
3
IP protection rating
IP20
Tripping characteristic
It seems your message was cut off. Please provide the text you would like me to translate from Russian to English, and I will follow your instructions strictly.
Frequency
50 Гц
Frequency at
50 Гц
Frequency from
50 Гц
Width in modular units
1
