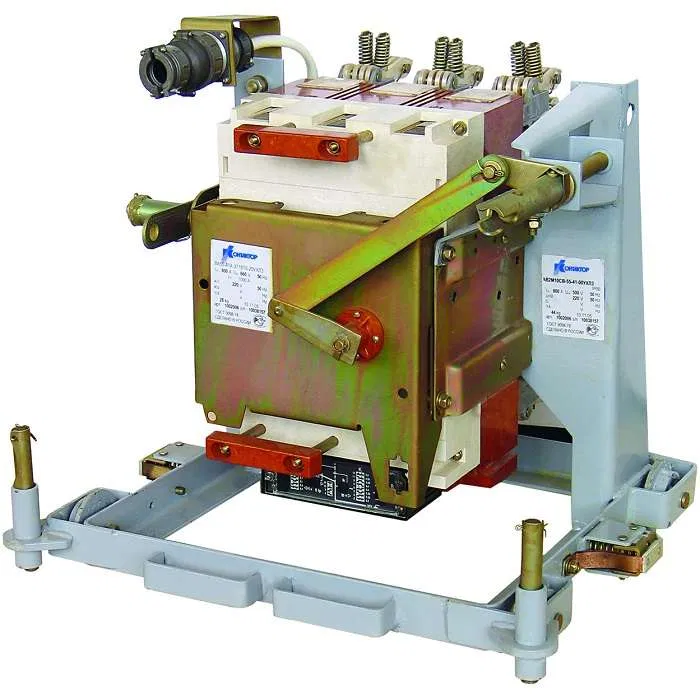

Automatic circuit breaker AV2M4SV-55-41-400-MP4-UKHL3-NR400VAC-4p3z 400A; max current elec. trip unit MRT4-MP; independent trip unit 400VAC; manual drive; free contacts 4p3z Contactor 1031149
SKU: 1031149
ETIM: EC000228
524,753 ₽
Get back 5,247 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
No description available
Main circuit connection type
Rear connection
Built-in ground fault protection
No
Built-in motor drive
No
Height
500.0 мм
Short-time delayed short-circuit release range
144…5280 А
Overload protection device setting range to
440 А
Setting range of overload protection device from
120…440 А
Instantaneous short-circuit release setting range to
5.6 А
Instantaneous short-circuit release setting range from
5.6 А
Auxiliary device factory-installed
Shunt release (for power circuit breakers)
Trip indicator present
No
Version
Withdrawable
Design
Withdrawable
Climatic version
UKhL3
Number of auxiliary NO contacts
3
Number of auxiliary changeover contacts
0
Number of auxiliary break contacts
4
Number of poles
3
Design
Slot-in device (withdrawable)
Motor drive optional
No
Electronic release available
Yes
Rated impulse withstand voltage
6
Rated ultimate short-circuit breaking capacity Icu at 400 V, 50 Hz
23 кА
Rated voltage
690 В
Rated voltage up to
400 В
Rated voltage from
0...690 В
Rated current
400 А
Rated continuous current Iu
400 А
Suitable for DIN-rail mounting
No
Power loss
348 Вт
With minimum voltage protection
Yes
Tripping system
Electronic
IP protection rating
IP00
Product/component type
Moulded case circuit breaker
Control element type
Extended rotary handle (wide grip)
Mains supply frequency
50/60 Гц
