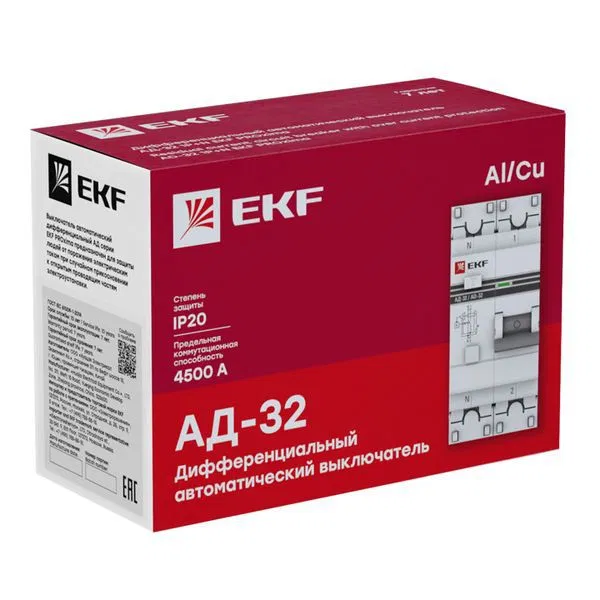

Residual current circuit breaker AD-32 1P+N 40A characteristic C 30mA type AC electronic 4.5kA PROXIMA EKF DA32-40-30-pro
SKU: DA32-40-30-pro
ETIM: EC000905
924 ₽
Get back 9 ₽ in points
Analogues by specifications
Stock by warehouse
PROXIMA LINEUP UPDATE
Analog article: D63N26E40C30
AD-32 EKF PROxima residual current circuit breaker (RCBO) is a device that combines the functions of a circuit breaker with a residual current device. When the circuit breaker detects a leakage current (fault) to ground or an overcurrent (overload or short circuit) in the protected section of the network, the device trips, leading to the disconnection of the protected network. The AD-32 range is supplemented by AD-32 type A and AD-32 selective RCBOs.
Mounting installation depth
73 мм
For flush mounting
Yes
False tripping protection
No
Overvoltage category
3
Current limiting class
3
Number of protected poles
1
Rated breaking capacity in accordance with EN 60898
4.5 кА
Rated breaking capacity per IEC 60947-2
4.5 кА
Rated short-circuit breaking capacity Icn per EN 61009-1
4.5 кА
Rated impulse voltage
6 кВ
Rated voltage
230 В
Rated insulation voltage Ui
500 В
Rated current
40 А
Rated leakage current
0.03 мА
Total number of poles
2
Ambient operating temperature to
55 град.C
Ambient operating temperature from
-25...55 град.C
Current type
AC (alternating)
With switched neutral conductor
Yes
With interlock device
No
Flexible stranded conductor cross-section up to
16 кв.мм
Stranded flexible conductor cross-section from
0...16 кв.мм
Solid conductor cross-section to
25 кв.мм
Solid conductor cross-section from
0...25 кв.мм
Pollution degree (number)
3
IP protection rating
IP20
Residual current type
AC (alternating)
Resistance to current surges
4.5 кА
Tripping characteristic
Without delay
Tripping characteristic
It seems your message was cut off. Please provide the text you would like me to translate from Russian to English, and I will follow your instructions strictly.
Frequency (Hz)
50 Hz
Width in modular units
2
