EKF

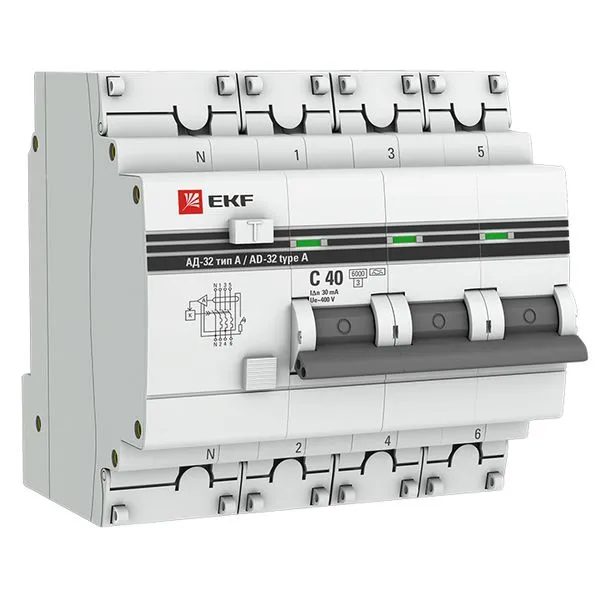

Residual current circuit breaker AD-32 3P+N 40A characteristic C 30mA type A electronic 6kA PROXIMA EKF DA32-6-40-30-4P-a-pro
SKU: DA32-6-40-30-4P-a-pro
ETIM: EC000905
55,950 ₽
Get back 559 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Order multiple: 30 шт
Analogues by specifications
No description available
Mounting installation depth
73 мм
For flush mounting
Yes
False tripping protection
No
Overvoltage category
3
Current limiting class
3
Number of protected poles
3
Rated breaking capacity in accordance with EN 60898
6 кА
Rated breaking capacity per IEC 60947-2
6 кА
Rated short-circuit breaking capacity Icn per EN 61009-1
6 кА
Rated impulse voltage
6 кВ
Rated voltage
400 В
Rated insulation voltage Ui
500 В
Rated current
40 А
Rated leakage current
0.03 мА
Total number of poles
4
Ambient operating temperature to
55 град.C
Ambient operating temperature from
-25...55 град.C
Current type
AC (alternating)
With switched neutral conductor
Yes
With interlock device
No
Flexible stranded conductor cross-section up to
16 кв.мм
Stranded flexible conductor cross-section from
0...16 кв.мм
Solid conductor cross-section to
25 кв.мм
Solid conductor cross-section from
0...25 кв.мм
Pollution degree (number)
3
IP protection rating
IP20
Residual current type
A
Resistance to current surges
6 кА
Tripping characteristic
Without delay
Tripping characteristic
C
Frequency (Hz)
50 Hz
Width in modular units
4.5
