EKF

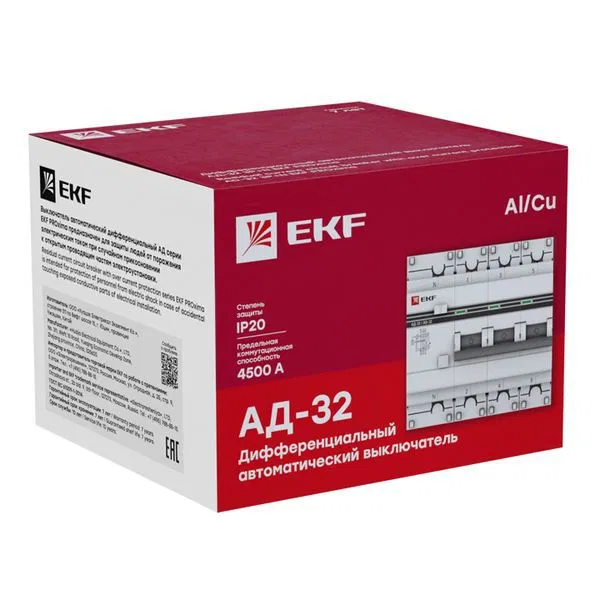

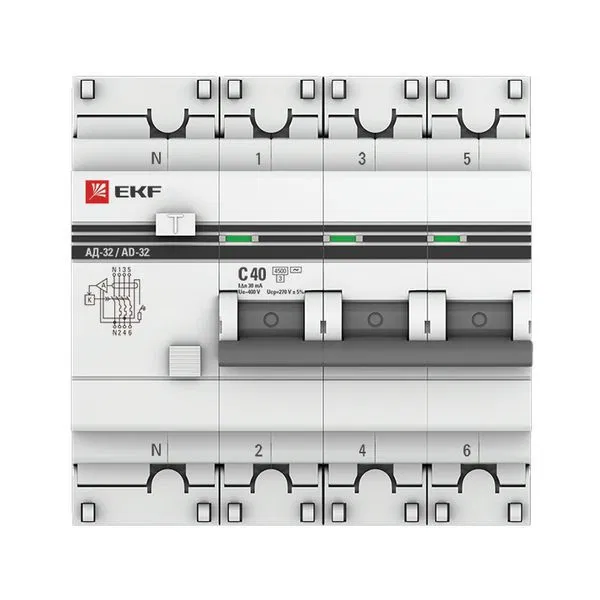

Residual current circuit breaker AD-32 3P+N 40A characteristic C 30mA type AC electronic 4.5kA PROXIMA EKF DA32-40-30-4P-pro
SKU: DA32-40-30-4P-pro
ETIM: EC000905
1,645 ₽
Get back 16 ₽ in points
Analogues by specifications
No description available
Mounting installation depth
73 мм
For flush mounting
Yes
False tripping protection
No
Overvoltage category
3
Current limiting class
3
Number of protected poles
3
Rated breaking capacity in accordance with EN 60898
4.5 кА
Rated breaking capacity per IEC 60947-2
4.5 кА
Rated short-circuit breaking capacity Icn per EN 61009-1
4.5 кА
Rated impulse voltage
6 кВ
Rated voltage
400 В
Rated insulation voltage Ui
500 В
Rated current
40 А
Rated leakage current
0.03 мА
Total number of poles
4
Ambient operating temperature to
55 град.C
Ambient operating temperature from
-25...55 град.C
Current type
AC (alternating)
With switched neutral conductor
Yes
With interlock device
No
Flexible stranded conductor cross-section up to
16 кв.мм
Stranded flexible conductor cross-section from
0...16 кв.мм
Solid conductor cross-section to
25 кв.мм
Solid conductor cross-section from
0...25 кв.мм
Pollution degree (number)
3
IP protection rating
IP20
Residual current type
AC (alternating)
Resistance to current surges
4.5 кА
Tripping characteristic
Without delay
Tripping characteristic
It seems your message was cut off. Please provide the text you would like me to translate from Russian to English, and I will follow your instructions strictly.
Frequency (Hz)
50 Hz
Width in modular units
4.5
