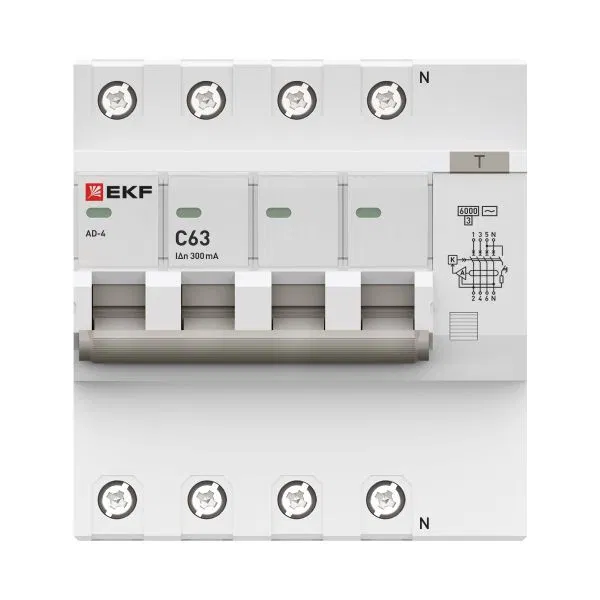

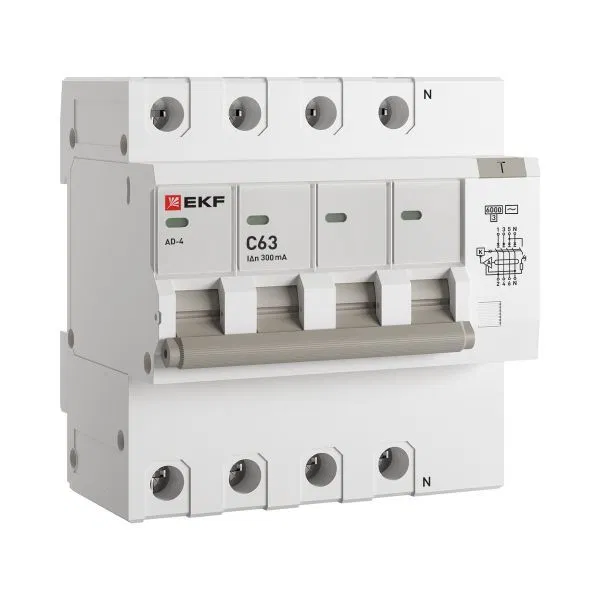

Residual current circuit breaker AD-4 4P 63A characteristic C 300mA type AC electronic 6kA PROXIMA EKF DA4-6-63-300-pro
SKU: DA4-6-63-300-pro
ETIM: EC000905
2,061 ₽
Get back 20 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse
The AD-2(4) (S) EKF PROxima residual current circuit breaker (RCBO) is a device that combines the functions of a circuit breaker with a residual current device. When the circuit breaker detects a leakage current (fault) to ground or an overcurrent (overload or short circuit) in the protected network section, the device trips, leading to the disconnection of the protected network. A special feature of EKF residual current breakers is the presence of a built-in surge protection unit. AD-2 and AD-4 EKF PROxima are available in standard and selective (AD-2S, AD-4S) versions.
Mounting installation depth
74 mm
For flush mounting
Yes
False tripping protection
No
Overvoltage category
3
Current limiting class
3
Number of protected poles
4
Rated breaking capacity in accordance with EN 60898
6 kA
Rated breaking capacity per IEC 60947-2
6 kA
Rated short-circuit breaking capacity Icn per EN 61009-1
6 kA
Rated impulse voltage
6 kV
Rated voltage
400 V
Rated insulation voltage Ui
500 V
Rated current
63 A
Rated leakage current
0.3 mA
Total number of poles
4
Ambient operating temperature to
50 °C
Ambient operating temperature from
-25...50 °C
Current type
AC (alternating)
With switched neutral conductor
Yes
With interlock device
No
Flexible stranded conductor cross-section up to
16 mm²
Stranded flexible conductor cross-section from
0...16 mm²
Solid conductor cross-section to
25 mm²
Solid conductor cross-section from
0...25 mm²
Pollution degree (number)
3
IP protection rating
IP20
Residual current type
AC (alternating)
Resistance to current surges
6 kA
Tripping characteristic
Without delay
Tripping characteristic
C
Frequency (Hz)
50/60 Hz
Width in modular units
5
