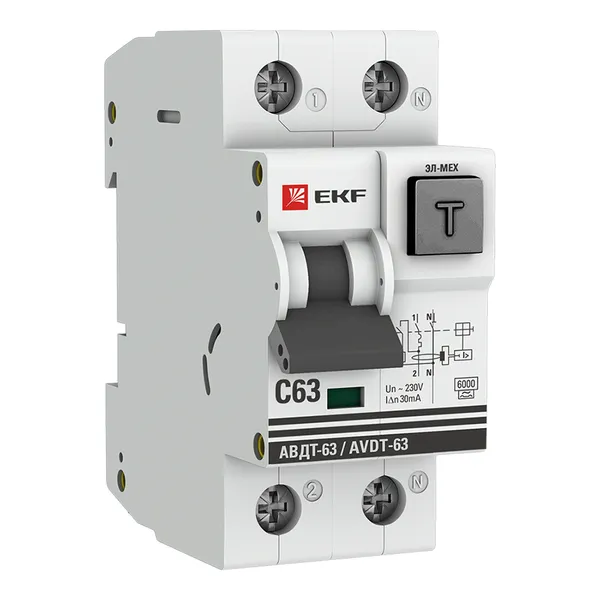

Residual current circuit breaker (RCCB) AVDT-63 1P+N 63A characteristic C 30mA type A electromechanical 6kA EKF PROXIMA DA63-63-30
SKU: DA63-63-30
ETIM: EC000905
2,464 ₽
Get back 24 ₽ in points
Analogues by specifications
Stock by warehouse
No description available
Mounting installation depth
72 мм
For flush mounting
Yes
False tripping protection
No
Overvoltage category
3
Current limiting class
3
Number of protected poles
1
Rated breaking capacity in accordance with EN 60898
6 кА
Rated breaking capacity per IEC 60947-2
6 кА
Rated short-circuit breaking capacity Icn per EN 61009-1
6 кА
Rated impulse voltage
6 кВ
Rated voltage
230 В
Rated insulation voltage Ui
500 В
Rated current
63 А
Rated leakage current
0.03 мА
Total number of poles
2
Ambient operating temperature to
55 град.C
Ambient operating temperature from
-25...55 град.C
Current type
AC (alternating)
With switched neutral conductor
Yes
With interlock device
No
Flexible stranded conductor cross-section up to
16 кв.мм
Stranded flexible conductor cross-section from
0...16 кв.мм
Solid conductor cross-section to
25 кв.мм
Solid conductor cross-section from
0...25 кв.мм
Pollution degree (number)
3
IP protection rating
IP20
Residual current type
Please provide the text you would like me to translate.
Resistance to current surges
6 кА
Tripping characteristic
Without delay
Tripping characteristic
It seems your message was cut off. Please provide the text you would like me to translate from Russian to English, and I will follow your instructions strictly.
Frequency (Hz)
50/60 Hz
Width in modular units
2
