EKF

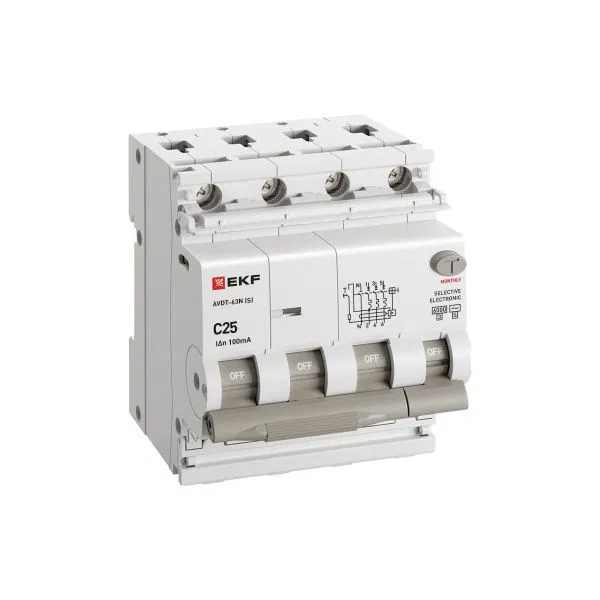

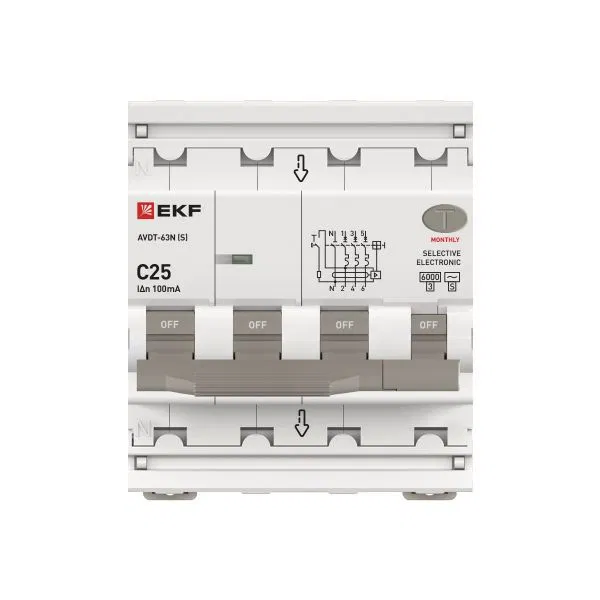

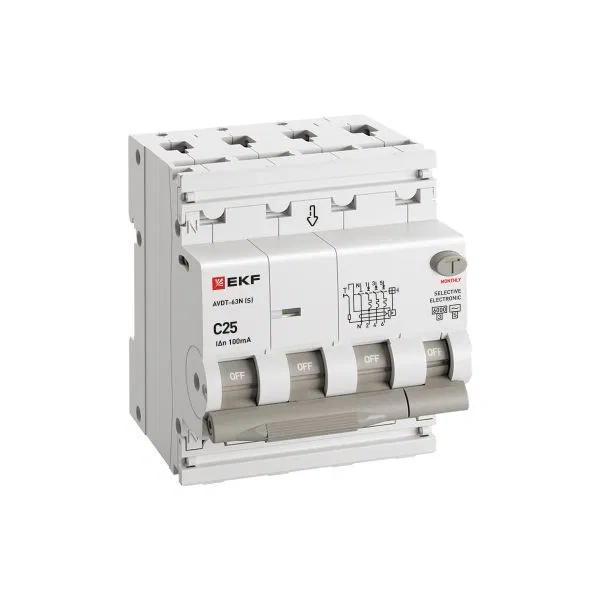

RCBO AVDT-63N 3P+N (S) 25A characteristic C 100mA type AC electronic selective 6kA PROXIMA EKF D63N46ES25C100
SKU: D63N46ES25C100
ETIM: EC000905
2,344 ₽
Get back 23 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse
No description available
Mounting installation depth
72 мм
For flush mounting
Yes
False tripping protection
No
Overvoltage category
3
Current limiting class
3
Number of protected poles
3
Rated breaking capacity per IEC 60947-2
6 кА
Rated short-circuit breaking capacity Icn per EN 61009-1
6 кА
Rated impulse voltage
6 кВ
Rated voltage
400 В
Rated insulation voltage Ui
500 В
Rated current
25 А
Rated leakage current
0.1 мА
Total number of poles
4
Ambient operating temperature to
50 град.C
Ambient operating temperature from
-25...50 град.C
Current type
AC (alternating)
With switched neutral conductor
Yes
With interlock device
No
Flexible stranded conductor cross-section up to
16 кв.мм
Stranded flexible conductor cross-section from
0...16 кв.мм
Solid conductor cross-section to
25 кв.мм
Solid conductor cross-section from
0...25 кв.мм
Pollution degree (number)
3
IP protection rating
IP20
Residual current type
AC/S
Resistance to current surges
6 кА
Tripping characteristic
Selective
Tripping characteristic
C
Frequency (Hz)
50/60 Hz
Width in modular units
4
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
