Residual current circuit breaker DVA-10 1P+N 6A characteristic B 300mA type AC electromechanical 10kA AVERES EKF rcbo10-1pn-6b-300-ac-av
SKU: rcbo10-1pn-6B-300-ac-av
ETIM: EC000905
5,267 ₽
Get back 52 ₽ in points
Analogues by specifications
No description available
Mounting installation depth
79 мм
For flush mounting
Yes
False tripping protection
No
Overvoltage category
3
Current limiting class
3
Number of protected poles
1
Rated breaking capacity in accordance with EN 60898
10 кА
Rated breaking capacity per IEC 60947-2
10 кА
Rated short-circuit breaking capacity Icn per EN 61009-1
10 кА
Rated impulse voltage
6 кВ
Rated voltage
230 В
Rated insulation voltage Ui
500 В
Rated current
6 А
Rated leakage current
0.3 мА
Total number of poles
2
Ambient operating temperature to
50 град.C
Ambient operating temperature from
-40...50 град.C
Current type
AC (alternating)
With switched neutral conductor
Yes
With interlock device
No
Flexible stranded conductor cross-section up to
16 кв.мм
Stranded flexible conductor cross-section from
0...16 кв.мм
Solid conductor cross-section to
25 кв.мм
Solid conductor cross-section from
0...25 кв.мм
Pollution degree (number)
3
IP protection rating
IP20
Residual current type
AC (alternating)
Resistance to current surges
10 кА
Tripping characteristic
Without delay
Tripping characteristic
Please provide the text you would like me to translate.
Frequency (Hz)
50/60 Hz
Width in modular units
2
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
Related products
4948 ₽
CHINT Residual current circuit breaker 2p C 6A 100mA type A 10kA RCCB NB1L C6 electromechanical (R) CHINT 205024
SKU: 205024
3624 ₽
CHINT Residual current circuit breaker 2p (1P+N) B 25A 30mA type A 10kA AVDT NB1L B25 electromechanical (R) CHINT 203053
SKU: 203053
4007 ₽

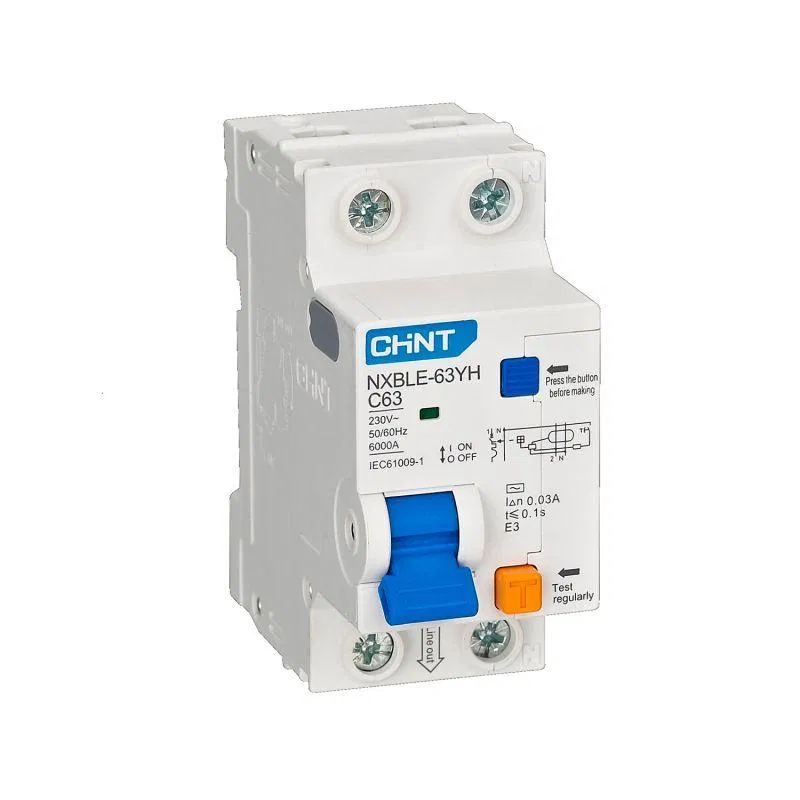

CHINT Residual current circuit breaker 4p (3P+N) C 40A 100mA type AC 6kA AVDT NXBLE-63YH C40 electron. (R) CHINT 539770
