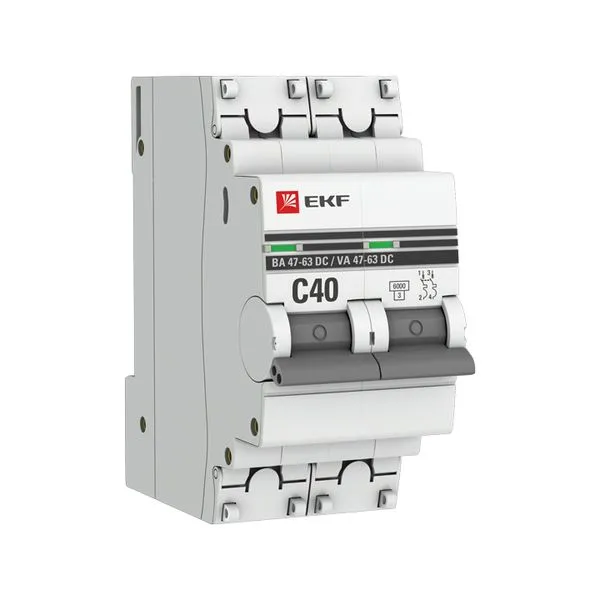

Circuit breaker VA 47-63 DC 2P 40A (C) 6kA EKF PROXIMA mcb4763-DC-2-40C-pro

SKU: mcb4763-DC-2-40C-pro

ETIM: EC000042

3008 ₽

Price list (incl. VAT): 5641 ₽

Available August 6

	Warehouse	Qty	Unit	Ready for pickup	Delivery to Smolensk
	Manufacturer warehouse (Ногинск) Available	2	шт	August 6	clarifying

Select a warehouse to order

Description Specifications Reviews

Additional equipment possible	Yes
Mounting installation depth	66 мм
For flush mounting	Yes
Overvoltage category	3
Current limiting class	3
Number of protected poles	2
Rated short-circuit breaking capacity Icu IEC 60898 at 230 V	6 кА
Rated short-circuit breaking capacity Icu IEC 60898 at 400 V	3.5 кА
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230V	6 кА
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V	3.5 кА
Rated breaking capacity in accordance with EN 60898	6 кА
Rated impulse voltage	6.2 кВ
Rated voltage	500 В
Rated insulation voltage Ui	600 В
Rated current	40 А
Total number of poles	2
Ambient operating temperature to	50 град.C
Ambient operating temperature from	-25...50 град.C
Current type	DC (direct)
With switched neutral conductor	Yes
Flexible stranded conductor cross-section up to	16 кв.мм
Stranded flexible conductor cross-section from	1...16 кв.мм
Solid conductor cross-section to	25 кв.мм
Solid conductor cross-section from	1...25 кв.мм
Pollution degree (number)	2
IP protection rating	IP20
Tripping characteristic	It seems your message was cut off. Please provide the text you would like me to translate from Russian to English, and I will follow your instructions strictly.
Frequency	50 Гц
Frequency at	50 Гц
Frequency from	50 Гц
Width in modular units	2
