Generica (Группа IEK)
Circuit breaker VA47-29M 2P 32A 4.5kA D GENERICA MVA21-2-032-D-G
SKU: MVA21-2-032-D-G
ETIM: EC000042
475 ₽
Get back 4 ₽ in points
Analogues by specifications
No description available
Weight per pole
0.086
Additional equipment possible
Yes
Busbar connection capability
PIN (pin)
Electric shock protection class
0
Climatic version
UKhL4
Number of protected poles
2
Number of poles
2
Number of power poles
1
Maximum supply cable cross-section
25 кв.мм
Mech. endurance
10000
Explosion protection present
Without explosion protection
Availability of residual current release
No
Thermal release available
Yes
Electromagnetic release present
Yes
Electronic release available
No
Rated impulse withstand voltage
4
Rated short-circuit breaking capacity Icu IEC 60898 at 230 V
4.5 кА
Rated short-circuit breaking capacity Icu IEC 60898 at 400 V
4.5 кА
Rated breaking capacity in accordance with EN 60898
4.5 кА
Rated voltage
400 В
Rated insulation voltage Ui
415 В
Rated current
32.0 А
Total number of poles
2
Power loss
12.0 Вт
Ambient operating temperature to
70 град.C
Ambient operating temperature from
-40...70 град.C
Operating mode
Continuous-S1
Repairability
No
Current type
Alternating current (AC)
With switched neutral conductor
No
Tripping system
Thermal, electromagnetic
Mounting method
On DIN rail
IP protection rating
IP20
Application area
Domestic
Mounting rail type
35x7.5
Connection type
Screw connection
Tripping characteristic
It seems your message was cut short. Please provide the text you would like me to translate from Russian to English, and I will follow your instructions strictly.
Frequency
50 Гц
Frequency at
50 Гц
Frequency from
50 Гц
Width in modular units
2
Electrical endurance
4000
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
Related products
1537 ₽
DKC Modular circuit breaker YON MD63 3P 50A C 6kA MD63-3C50-6 DKC
SKU: MD63-3C50-6
885 ₽
DKC YON max MB63 modular circuit breaker, 4 poles, char. D, 25A, 4.5kA MB63S-4PD25 DKC
SKU: MB63S-4PD25
Price on request

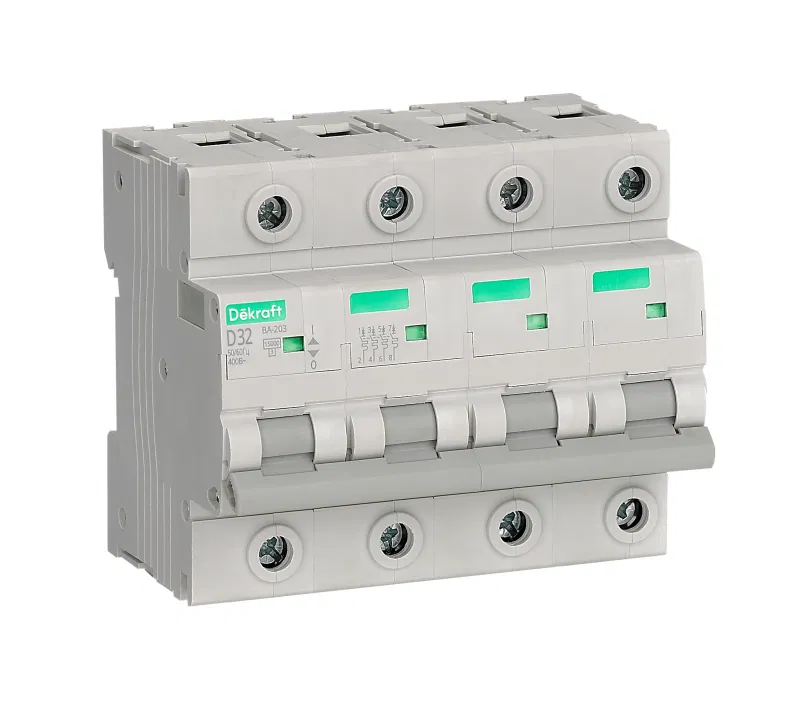

DEKraft Circuit breaker 4p D 32A 15kA VA-203 DEKraft 13550DEK
