ONI (Группа IEK)
OPSE power supply with extended characteristics 220V AC/12V DC 10A 120W ONI OPSE-DC12-120B
SKU: OPSE-DC12-120B
ETIM: EC002540
294,224 ₽
Get back 2,942 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Order multiple: 28 шт
Analogues by specifications
No description available
Load influence
1.0
Influence of supply voltage
0.5
Busbar mounting possible
Yes
Height
124 мм
Height
124 мм
Altitude above sea level
< 6000
Output power
120 В.А
Output power
120 Вт
Output voltage 1 at
12 В
Output voltage 1 from
12 В
Depth
119 мм
Input voltage range
AC (85...264); DC (127...360)
Output current range
0...10.00
Output voltage setting range
12...14
Overvoltage protection tripping range
15.0...18.0
Frequency range
47...63
Short-circuit protection
Yes
Insulation per GOST 12-2-091
Reinforced
Efficiency
90
Overvoltage category
2
Maximum output current 1
10 А
Modular design
No
Rated power at air temperature 25°C
120
Rated DC output voltage
12
Rated AC 50 Hz mains supply voltage from
220 В
Rated DC supply voltage from
- В
Rated output current
10.00 А
Relative air humidity
20...90%
Peak inrush current at 230V input voltage
60
Output current limiting threshold
110...150
Power consumption
- кВт
Max. permissible output voltage deviation
1
Connection capability
0.5...6
Supply voltage current type
AC/DC
Self-current consumption
< 0.035
Insulation resistance at 500V input-output
10
Insulation resistance at 500 V input-housing
10
Insulation resistance at 500V output-housing
10
Mounting method
DRA (on DIN rail)
Mean time between failures at 25°C
300
Pollution degree
2 per GOST IEC 60947-1
IP protection rating
IP20
Temperature coefficient
±0.03% (category C per GOST IEC 61204)
Overload protection type
Output current limiting with auto-recovery
Surge protection type
Output voltage shutdown with auto-recovery
Controlled regulated output voltage
Yes
Width
32 мм
Width in modular units
3
Dielectric strength input-output
3
Dielectric strength input-housing
2.5
Output-to-housing dielectric strength
0.5
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
Related products
Price on request
Phoenix Contact Power supply QUINT-PS/1AC/48DC/10 Phoenix Contact 2866682
SKU: 2866682
5185 ₽
Бастион Power supply SKATLED-ELS UPS 12V 4A Battery 7Ah for Bastion 2401 emergency lighting systems
SKU: 2401
4674 ₽
Трансвит Switching power supply IES18-126150 Transvit 126150
SKU: 988
70420 ₽
Phoenix Contact Power supply QUINT-PS/1AC/24DC/10/CO Phoenix Contact 2320911
SKU: 2320911
5185 ₽
Бастион Power supply SKATLED-ELS UPS 12V 4A Battery 7Ah for Bastion 2401 emergency lighting systems
SKU: 2401
4674 ₽

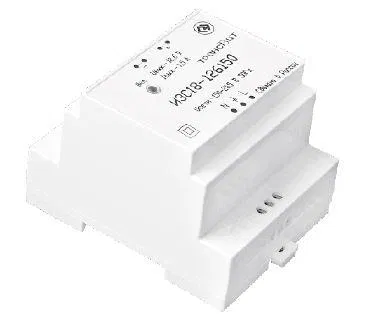

Трансвит Switching power supply IES18-126150 Transvit 126150
