DKC

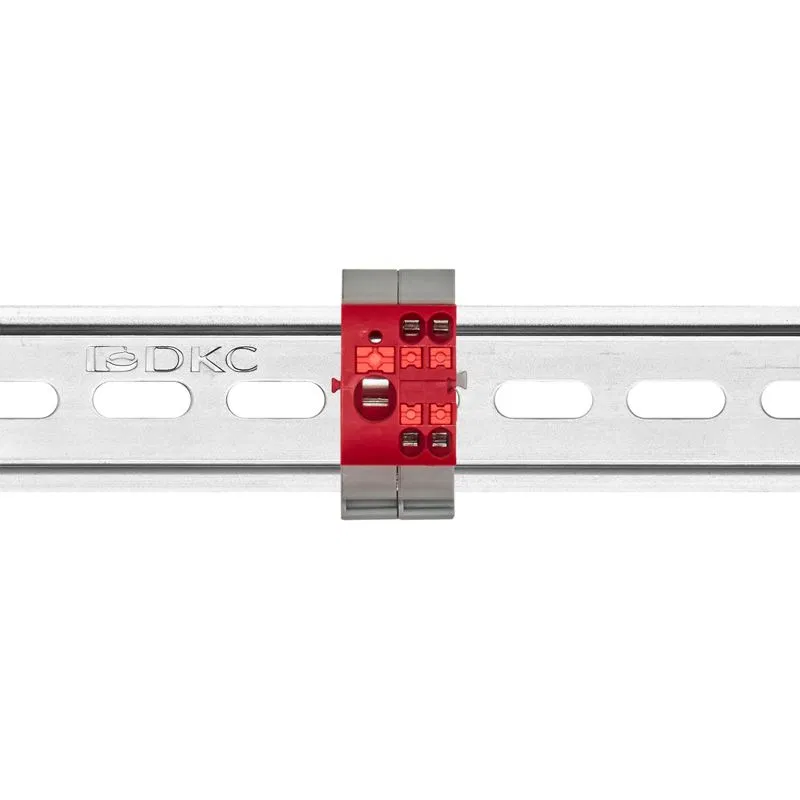

Distribution block with horizontal adapter for 35mm wide rail, push-in clamp, 1 input 6 sq.mm, 4 connection points 2.5 sq.mm, red DTP1-104-104SPUR-H DKC
SKU: DTP1-104-104SPUR-H
ETIM: EC000897
384 ₽
Get back 3 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse
No description available
Version tested for explosion protection "Ex e"
No
Internally linked levels
Yes
Minimum possible mounting height
21.7 мм
Length
28.8 мм
Length
28.8 мм
Flammability class of insulation material in accordance with UL57
V0
Number of terminals per level
5
Number of poles
5
Number of levels
1
Housing insulation material
Thermoplastic
Rated voltage
690 В
Rated current In
41 А
Closing plate can be fitted if required
No
Operating temperature
105 град.C
Operating temperature from
-40 град.C
Connection position
Top
With protection against contact with live parts
Yes
Core cross-section
6 кв.мм
Stranded wire cross-section with ferrule
0.2...6 мм²
Flexible stranded conductor cross-section up to
6 кв.мм
Stranded flexible conductor cross-section from
.2 кв.мм
Solid conductor cross-section to
10 кв.мм
Solid conductor cross-section from
.2 кв.мм
Extra-fine-stranded flexible conductor cross-section without ferrule, from
0.2...6 кв.мм
Mounting method
DIN rail 35 mm
Electrical connection type 1
Spring clamp connection
Electrical connection type 2
Spring clamp connection
Colour
Red
Color
Red
Width/connection pitch
20.5 мм
