DKC
Distribution block with vert. adapter for 15/35mm rails, push-in clamp, 1 input 6 sq.mm, 10 connection points 2.5 sq.mm, red DTP1-110-104SPUR-V DKC
SKU: DTP1-110-104SPUR-V
ETIM: EC000897
690 ₽
Get back 6 ₽ in points
Analogues by specifications
Stock by warehouse

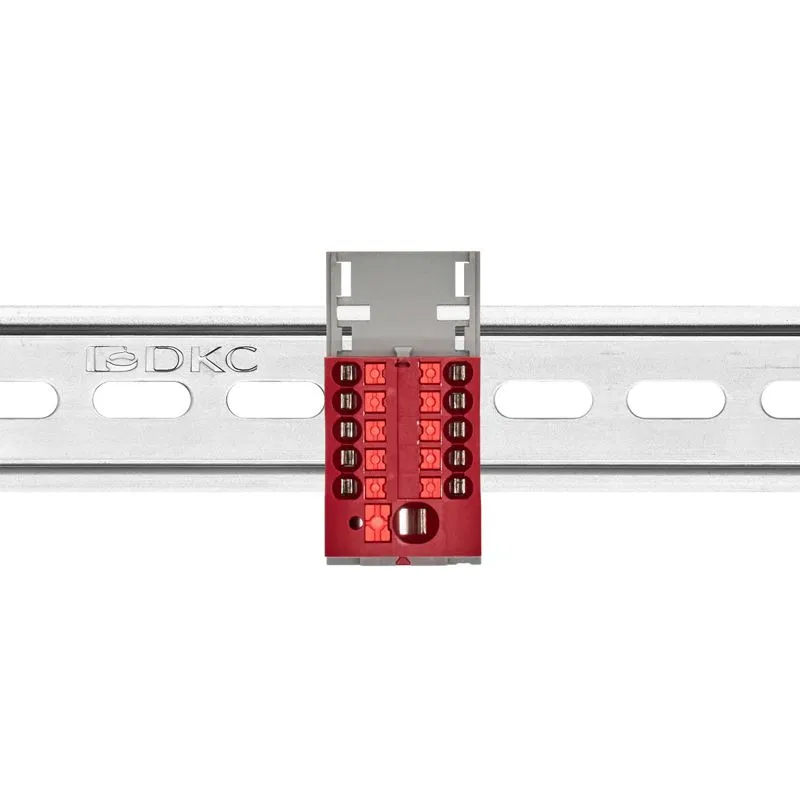

Distribution block with push-in terminal and vertical adapter is designed for reliable potential distribution between several circuits. It has one input for 6 mm2 conductors and 10 connection points of 2.5 mm2. It is installed on a 15 or 35 mm DIN rail and provides fast tool-free connection. The housing is made of durable polyamide 6.6 with V0 flammability class according to UL-94, which guarantees safety and durability. Dimensions (H×W×D) — 21.7×36.1×28.8 mm, color — red.
Version tested for explosion protection "Ex e"
No
Internally linked levels
Yes
Minimum possible mounting height
21.7 мм
Length
28.8 мм
Length
28.8 мм
Flammability class of insulation material in accordance with UL57
V0
Number of terminals per level
11
Number of poles
11
Number of levels
1
Housing insulation material
Thermoplastic
Rated voltage
690 В
Rated current In
41 А
Closing plate can be fitted if required
No
Operating temperature
105 град.C
Operating temperature from
-40 град.C
Connection position
Top
With protection against contact with live parts
I understand. I am ready to act as your professional e-commerce/PIM translator. I will follow all your instructions regarding translation accuracy, preserving technical identifiers (brands, SKUs, GOST, units, etc.), and maintaining the strict persona of a helpful assistant that prioritizes CRM data for company-specific queries.
Please provide the text or data you wish to translate.
Core cross-section
6 кв.мм
Stranded wire cross-section with ferrule
0.2...6 мм²
Flexible stranded conductor cross-section up to
6 кв.мм
Stranded flexible conductor cross-section from
Please provide the text you would like me to translate. кв.мм
Solid conductor cross-section to
10 кв.мм
Solid conductor cross-section from
Please provide the text you would like me to translate. кв.мм
Extra-fine-stranded flexible conductor cross-section without ferrule, from
0.2...6 кв.мм
Mounting method
DIN rail 35 mm
Electrical connection type 1
Spring clamp connection
Electrical connection type 2
Spring clamp connection
Colour
Red
Color
Red
Width/connection pitch
36.1 мм
