DKC
Distribution block with vert. adapter for 15/35mm rails, push-in clamp, 1 inlet 6 sq.mm, 18 connection points 2.5 sq.mm, blue DTP1-118-104SPUB-V DKC
SKU: DTP1-118-104SPUB-V
ETIM: EC000897
1,029 ₽
Get back 10 ₽ in points
Analogues by specifications
Stock by warehouse

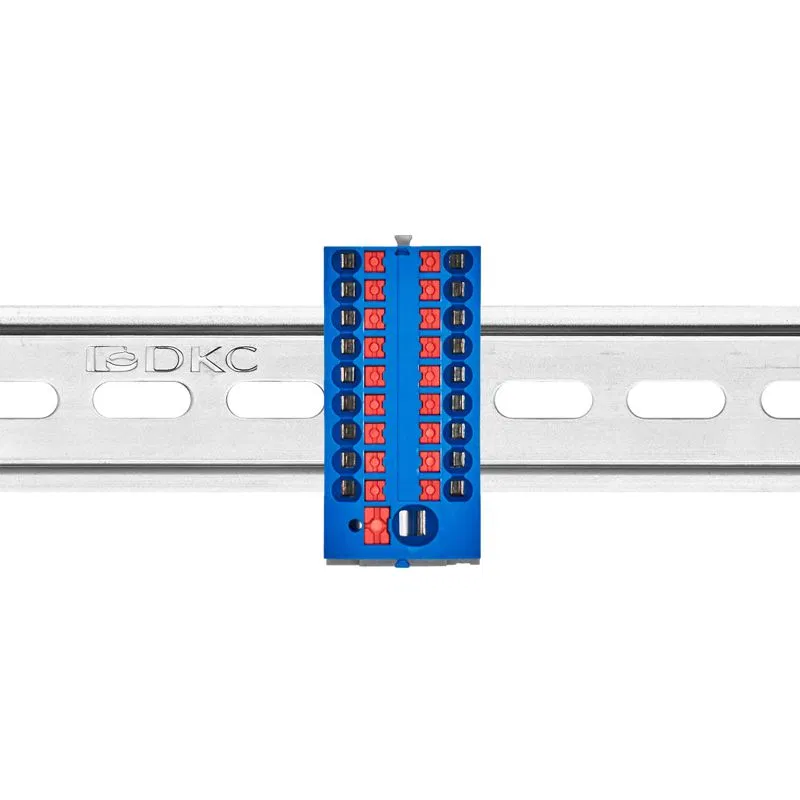

Distribution block with push-in terminal and vertical adapter is designed for convenient and safe potential distribution between several circuits. It has one inlet for 6 mm2 conductors and eighteen connection points of 2.5 mm2. Tool-free mounting, installation is possible on a 15 or 35 mm DIN rail. The housing is made of polyamide 6.6 with flammability class V0 according to UL-94, providing reliability and thermal stability. Dimensions (H×W×D) — 21.7×56.9×28.8 mm, color — blue.
Version tested for explosion protection "Ex e"
No
Internally linked levels
Yes
Minimum possible mounting height
21.7 мм
Length
28.8 мм
Length
28.8 мм
Flammability class of insulation material in accordance with UL57
V0
Number of terminals per level
19
Number of poles
19
Number of levels
1
Housing insulation material
Thermoplastic
Rated voltage
690 В
Rated current In
41 А
Closing plate can be fitted if required
No
Operating temperature
105 град.C
Operating temperature from
-40 град.C
Connection position
Top
With protection against contact with live parts
I understand. I am ready to act as your professional e-commerce/PIM translator. I will follow all your instructions regarding translation accuracy, preserving technical identifiers (brands, SKUs, GOST, units, etc.), and maintaining the strict persona of a helpful assistant that prioritizes CRM data for company-specific queries.
Please provide the text or data you wish to translate.
Core cross-section
6 кв.мм
Stranded wire cross-section with ferrule
0.2...6 мм²
Flexible stranded conductor cross-section up to
6 кв.мм
Stranded flexible conductor cross-section from
Please provide the text you would like me to translate. кв.мм
Solid conductor cross-section to
10 кв.мм
Solid conductor cross-section from
Please provide the text you would like me to translate. кв.мм
Extra-fine-stranded flexible conductor cross-section without ferrule, from
0.2...6 кв.мм
Mounting method
DIN rail 35 mm
Electrical connection type 1
Spring clamp connection
Electrical connection type 2
Spring clamp connection
Color
Blue
Colour
Blue
Width/connection pitch
56.9 мм
