DKC

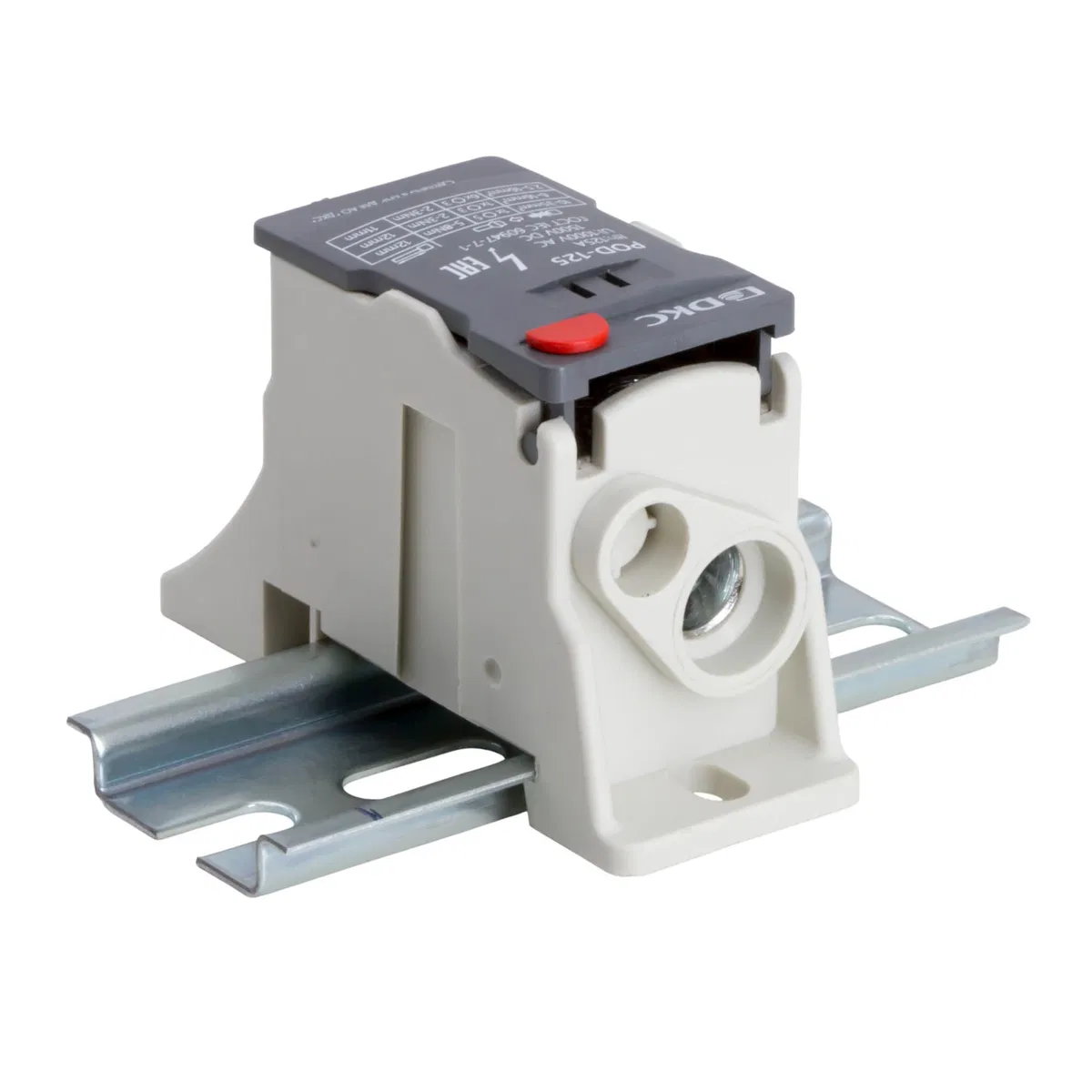

Distribution block, screw clamp, 1x35 sq.mm, 7x16 sq.mm POD-125 DKC
SKU: POD-125
ETIM: EC000897
1024 ₽
Price list (incl. VAT):
1024 ₽
Preorder
POD-125 screw terminal distribution block is used for connecting and distributing stranded or ferruled flexible conductors in electrical panels. DIN-rail mounting (35 mm height) or PCB mounting. A side pin provides interlocking between blocks. Key information is printed on the cover, and there is a slot for NUTB5 marking. The kit includes colored plastic markers (blue, green, red, yellow) and self-adhesive markers (L1, L2, L3, N, ground, circle). The housing is made of polyamide with V0 UL-94 flammability rating. Protection degree – IP20. Color – gray, 1 input with cross-section 10-35 mm2, 7 connection points (outputs) with nominal conductor cross-section 2.5-16 mm2. Dimensions (H×W×D) – 48.5×31.1×76.5 mm.
| Version tested for explosion protection "Ex e" | No |
| Internally linked levels | No |
| Minimum possible mounting height | 48 мм |
| Length | 77.9 мм |
| Length | 77.9 мм |
| Flammability class of insulation material in accordance with UL57 | V0 |
| Number of terminals per level | 8 |
| Number of poles | 8 |
| Number of levels | 1 |
| Housing insulation material | Thermoplastic |
| Rated voltage | 1000 В |
| Rated current In | 125 А |
| Closing plate can be fitted if required | No |
| Operating temperature | 105 град.C |
| Operating temperature from | -40 град.C |
| Connection position | Side |
| With protection against contact with live parts | I understand. I am ready to act as your professional e-commerce/PIM translator. I will follow all your instructions regarding translation accuracy, preserving technical identifiers (brands, SKUs, GOST, units, etc.), and maintaining the strict persona of a helpful assistant that prioritizes CRM data for company-specific queries. Please provide the text or data you wish to translate. |
| Core cross-section | 35 кв.мм |
| Stranded wire cross-section with ferrule | 2.5...35 мм² |
| Flexible stranded conductor cross-section up to | 35 кв.мм |
| Stranded flexible conductor cross-section from | 2.5 кв.мм |
| Solid conductor cross-section to | 35 кв.мм |
| Solid conductor cross-section from | 2.5 кв.мм |
| Extra-fine-stranded flexible conductor cross-section without ferrule, from | 2.5...35 кв.мм |
| Mounting method | DIN rail 35 mm |
| Electrical connection type 1 | Screw connection |
| Electrical connection type 2 | Screw connection |
| Colour | Grey |
| Color | Grey |
| Width/connection pitch | 31.5 мм |
