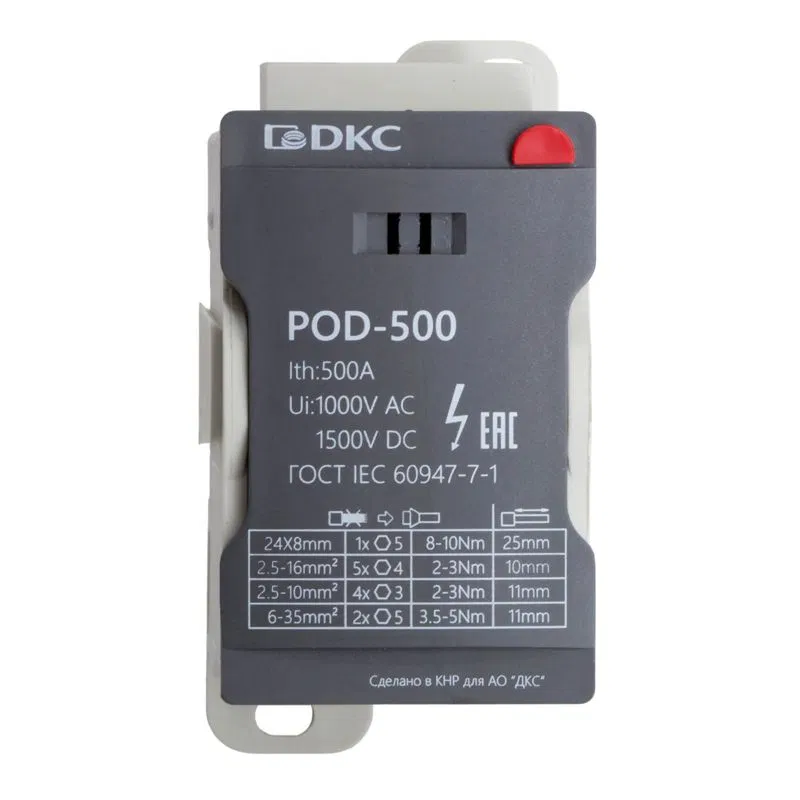

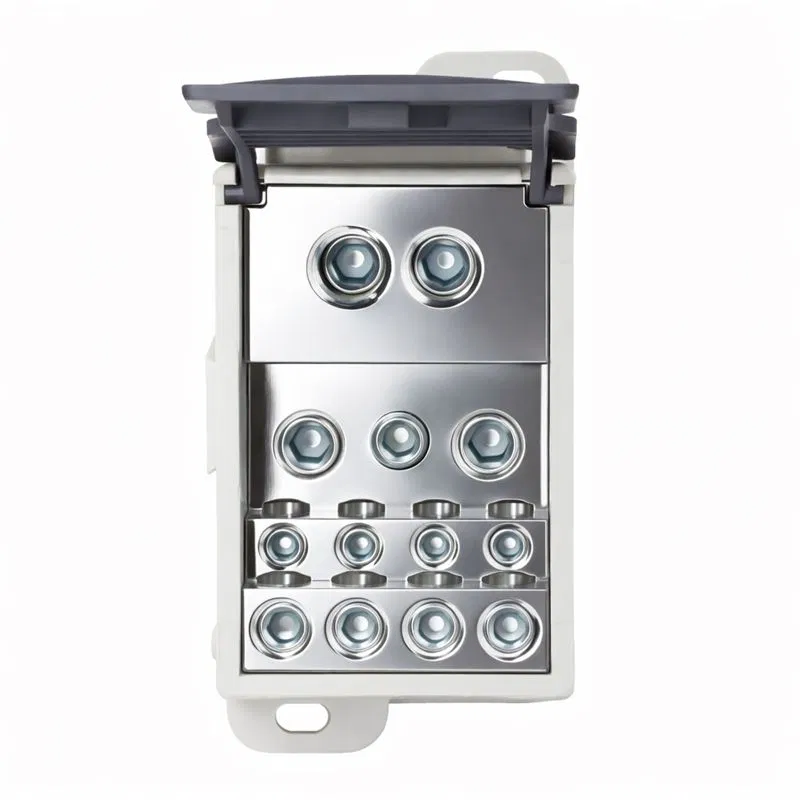

Distribution block, screw clamp, flat 24x8 mm, 2x35 mm2, 5x16 mm2, 4x10 mm2 POD-500 DKC
SKU: POD-500
ETIM: EC000897
2,588 ₽
Get back 25 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse
No description available
Version tested for explosion protection "Ex e"
No
Internally linked levels
No
Minimum possible mounting height
52 мм
Length
96.5 мм
Length
96.5 мм
Flammability class of insulation material in accordance with UL57
V0
Number of terminals per level
12
Number of poles
12
Number of levels
1
Housing insulation material
Thermoplastic
Rated voltage
1000 В
Rated current In
500 А
Closing plate can be fitted if required
No
Operating temperature
105 град.C
Operating temperature from
-40 град.C
Connection position
Side
With protection against contact with live parts
Yes
Core cross-section
24 кв.мм
Stranded wire cross-section with ferrule
2.5...25 мм²
Flexible stranded conductor cross-section up to
35 кв.мм
Stranded flexible conductor cross-section from
2.5 кв.мм
Solid conductor cross-section to
192 кв.мм
Solid conductor cross-section from
40 кв.мм
Extra-fine-stranded flexible conductor cross-section without ferrule, from
2.5...35 кв.мм
Mounting method
DIN rail 35 mm
Electrical connection type 1
Screw connection
Electrical connection type 2
Screw connection
Colour
Grey
Color
Grey
Width/connection pitch
49 мм
