DKC
Distribution block, push-in clamp, 1 input 6 sq.mm, 12 connection points 2.5 sq.mm, blue DTP1-112-104SPUB DKC
SKU: DTP1-112-104SPUB
ETIM: EC000897
1,013 ₽
Get back 10 ₽ in points
Analogues by specifications

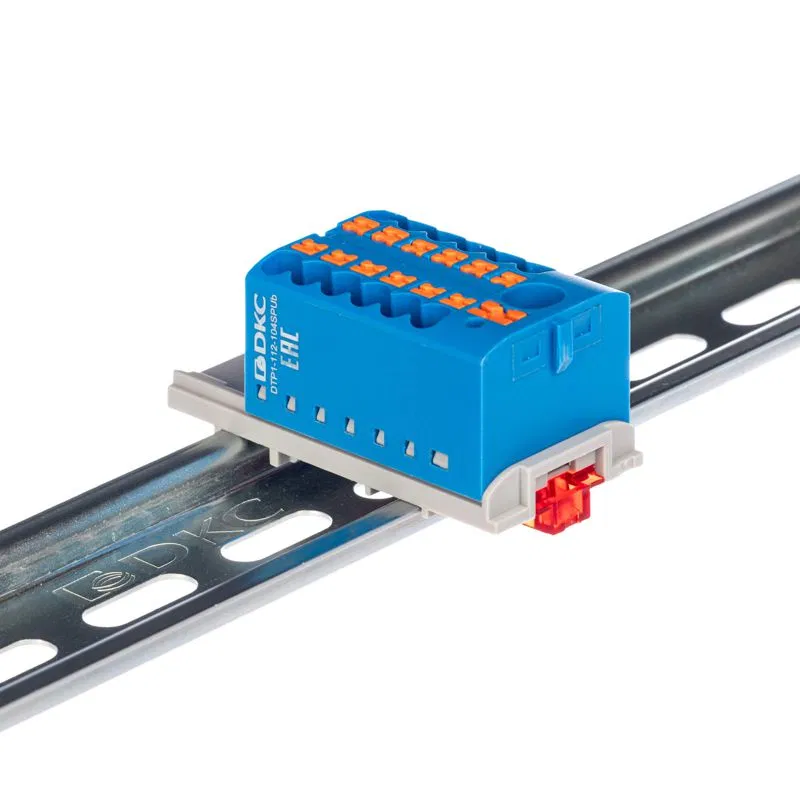

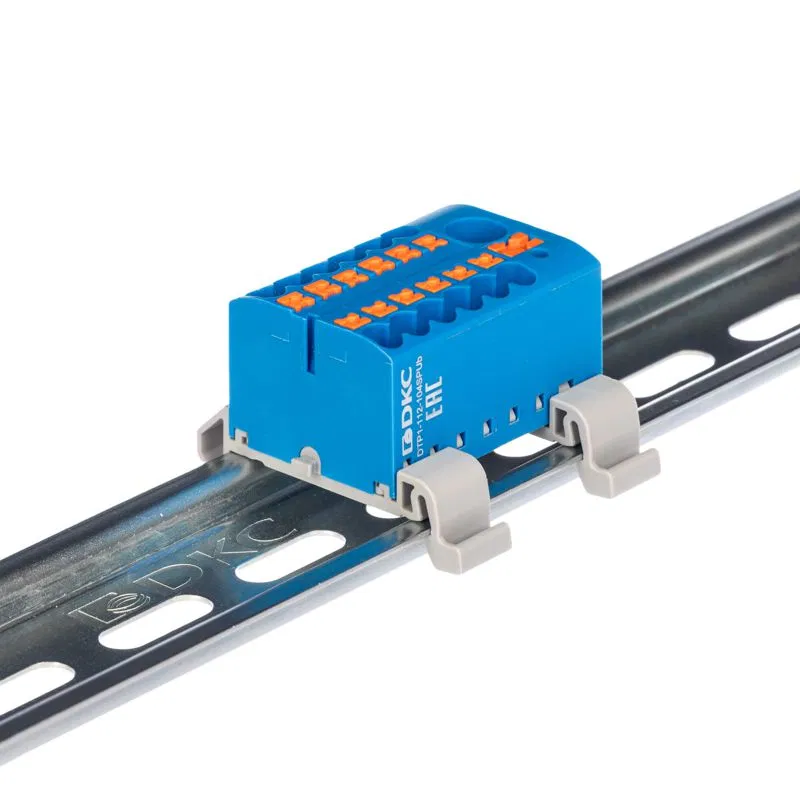

Push-in terminal block is designed to distribute potential to several connection points. Mounting is performed on a 15 or 35 mm DIN rail and on a PCB using adapters. Operating temperature – from -40 to +105 °C. The housing is made of polyamide 6.6 with flammability class V0 UL-94. Color – blue, 1 input with a nominal cross-section of 6 mm2, 12 connection points with a nominal conductor cross-section of 2.5 mm2. Dimensions (H×W×D) – 21.7×41.3×28.8 mm.
Version tested for explosion protection "Ex e"
No
Internally linked levels
Yes
Minimum possible mounting height
21.7 мм
Length
28.8 мм
Length
28.8 мм
Flammability class of insulation material in accordance with UL57
V0
Number of terminals per level
13
Number of poles
13
Number of levels
1
Number of bridged terminals
13
Housing insulation material
Thermoplastic
Rated voltage
690 В
Rated current In
41 А
Closing plate can be fitted if required
No
Operating temperature
105 град.C
Operating temperature from
-40 град.C
Connection position
Top
With protection against contact with live parts
I understand. I am ready to act as your professional e-commerce/PIM translator. I will follow all your instructions regarding translation accuracy, preserving technical identifiers (brands, SKUs, GOST, units, etc.), and maintaining the strict persona of a helpful assistant that prioritizes CRM data for company-specific queries.
Please provide the text or data you wish to translate.
Core cross-section
6 кв.мм
Stranded wire cross-section with ferrule
0.2...6 мм²
Flexible stranded conductor cross-section up to
6 кв.мм
Stranded flexible conductor cross-section from
Please provide the text you would like me to translate. кв.мм
Solid conductor cross-section to
10 кв.мм
Solid conductor cross-section from
Please provide the text you would like me to translate. кв.мм
Extra-fine-stranded flexible conductor cross-section without ferrule, from
0.2...6 кв.мм
With built-in test socket
I understand. I am ready to act as your professional e-commerce/PIM translator. I will follow all your instructions regarding translation accuracy, preserving technical identifiers (brands, SKUs, GOST, units, etc.), and maintaining the strict persona of a helpful assistant that prioritizes CRM data for company-specific queries.
Please provide the text or data you wish to translate.
Mounting method
Special profile
Electrical connection type 1
Spring clamp connection
Electrical connection type 2
Spring clamp connection
Colour
Blue
Color
Blue
Width/connection pitch
41.3 мм
