Distribution block, push-in terminal, 1 input 6 mm², 6 connection points 2.5 mm², grey DTP1-106-104SPUG DKC
SKU: DTP1-106-104SPUG
ETIM: EC000897
361 ₽
Get back 3 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse

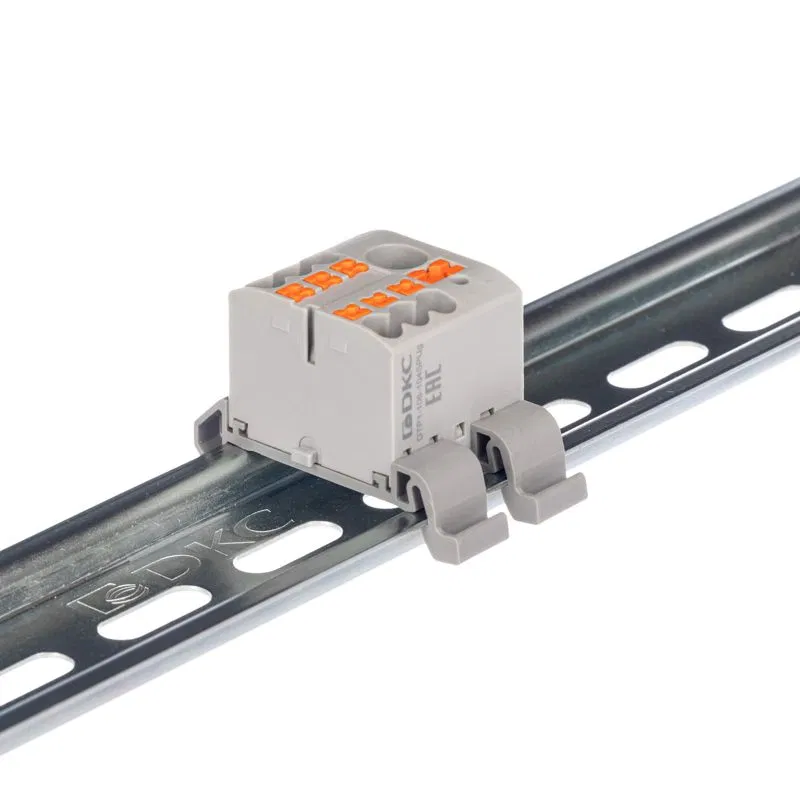

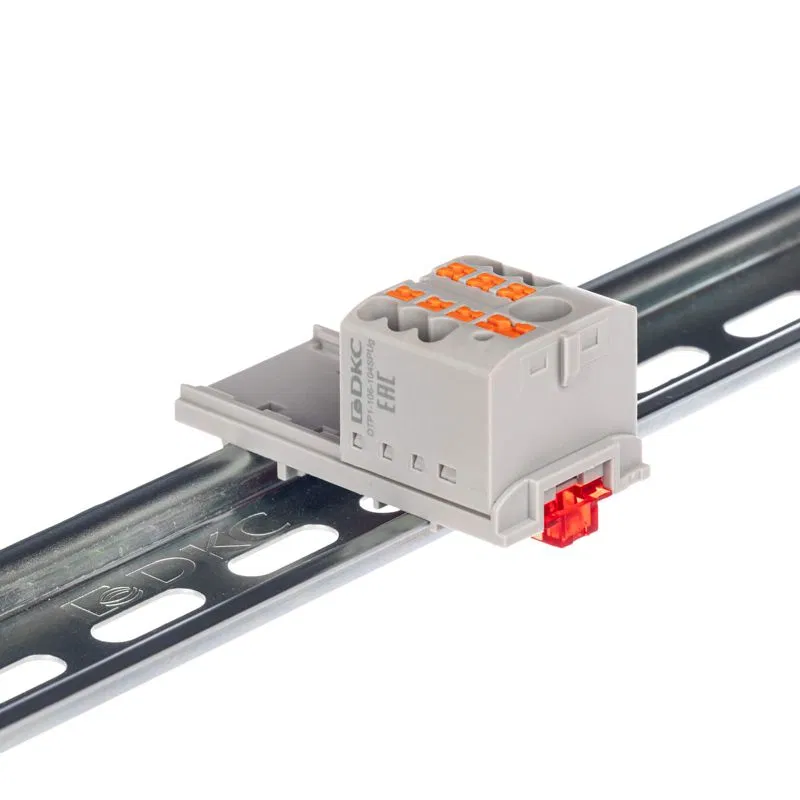

Push-in terminal block is designed to distribute potential to several connection points. Mounting is performed on a 15 or 35 mm DIN rail and on a mounting board using adapters. Operating temperature – from -40 to +105 °C. The housing is made of polyamide 6.6 with flammability class V0 UL-94. Color – gray, 1 input with nominal cross-section 6 mm2, 6 connection points with nominal conductor cross-section 2,5 mm2. Dimensions (H×W×D) – 21,7×25,7×28,8 mm.
Version tested for explosion protection "Ex e"
No
Internally linked levels
Yes
Minimum possible mounting height
21.7 мм
Length
28.8 мм
Length
28.8 мм
Flammability class of insulation material in accordance with UL57
V0
Number of terminals per level
7
Number of poles
7
Number of levels
1
Number of bridged terminals
7
Housing insulation material
Thermoplastic
Rated voltage
690 В
Rated current In
41 А
Closing plate can be fitted if required
No
Operating temperature
105 град.C
Operating temperature from
-40 град.C
Connection position
Top
With protection against contact with live parts
Yes
Core cross-section
6 кв.мм
Stranded wire cross-section with ferrule
0.2...6 мм²
Flexible stranded conductor cross-section up to
6 кв.мм
Stranded flexible conductor cross-section from
.2 кв.мм
Solid conductor cross-section to
10 кв.мм
Solid conductor cross-section from
.2 кв.мм
Extra-fine-stranded flexible conductor cross-section without ferrule, from
0.2...6 кв.мм
With built-in test socket
Yes
Mounting method
Special profile
Electrical connection type 1
Spring clamp connection
Electrical connection type 2
Spring clamp connection
Colour
Grey
Color
Grey
Width/connection pitch
25.7 мм
