IEK

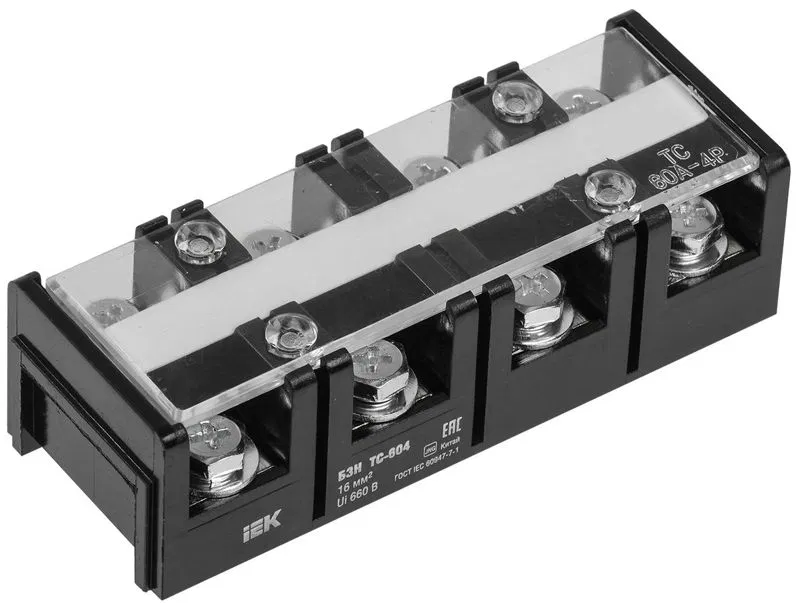

Terminal block set BZN TS-604 16mm2 60A 4 pairs IEK YZN42-04-016-K02
SKU: YZN42-04-016-K02
ETIM: EC001284
309 ₽
Get back 3 ₽ in points
Analogues by specifications
Stock by warehouse
No description available
Fastening screw
M6
Height
32 мм
Height
32 мм
Length
111 мм
Length
111 мм
Design
Three-phase installation
Flammability class of insulation material in accordance with UL57
Please provide the text you would like me to translate. I am ready to translate your product data from Russian to English following all your specified rules.
Climatic version
UKhL3
Number of terminals per pole
2
Number of terminal pairs
4
Number of poles
4
Max cross-section of connecting busbars
15x5
Maximum conductor cross-section
16.0 кв.мм
Clamping bracket material
Steel
Housing insulation material
Carbolite
Housing material
Carbolite
Housing material
Carbolite
Live part material
Brass
Availability of PEN terminal
No
Rated impulse withstand voltage
8
Rated AC operating voltage Ue
≤ 660
Rated DC operating voltage Ue
≤ 440
Rated frequency
50
Rated connection capacity
6...16
Rated voltage
660 В
Rated insulation voltage Ui
660 В
Rated current In
60 А
Relative air humidity
≤ 90%
Closing plate can be fitted if required
No
Operating temperature
50 град.C
Operating temperature from
-40...50 град.C
Connection position
Side (transverse)
Flame propagating
No
Repairability
No
Flexible stranded conductor cross-section up to
16 кв.мм
Stranded flexible conductor cross-section from
6...16 кв.мм
Solid conductor cross-section to
16 кв.мм
Solid conductor cross-section from
6...16 кв.мм
Busbar cross-section
30.0
Mounting method
Direct mounting
Pollution degree
3
IP protection rating
IP00
Electrical connection type 1
Bolted connection
Electrical connection type 2
Screw connection
Colour
Black
Color
Black
Width
41 мм
Width/connection pitch
41.0 мм
