IEK

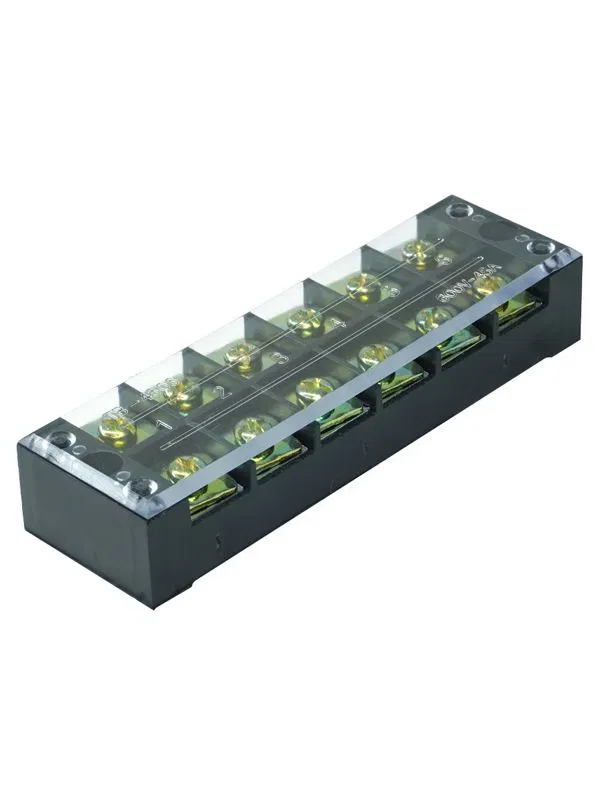

Modular terminal block BZN TV-1506 1.5mm2 15A 6 pairs IEK YZN41-06-001-K02
SKU: YZN41-06-001-K02
ETIM: EC001284
74 ₽
Get back 1% in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse
Used for safe and compact connection and branching of conductors of various cross-sections made of copper and aluminum in AC circuits with voltage up to 660V and DC circuits with voltage up to 440V.
Installed on a mounting panel. A transparent cover is installed to insulate the conductors.
The enclosure is made of non-flammable ABS plastic. The current-carrying busbar is made of brass.
Fastening screw
M3
Height
17 мм
Height
17 мм
Length
73 мм
Length
73 мм
Design
Three-phase installation
Flammability class of insulation material in accordance with UL57
V1
Climatic version
UKhL3
Number of terminals per pole
2
Number of terminal pairs
6
Number of poles
6
Max cross-section of connecting busbars
6x3
Maximum conductor cross-section
1.5 кв.мм
Clamping bracket material
Steel
Housing insulation material
Other
Housing material
ABS plastic
Housing material
ABS plastic
Live part material
Steel
Availability of PEN terminal
No
Rated impulse withstand voltage
8
Rated AC operating voltage Ue
≤ 660
Rated DC operating voltage Ue
≤ 440
Rated frequency
50
Rated connection capacity
0.75 ... 1.5
Rated voltage
660 В
Rated insulation voltage Ui
660 В
Rated current In
15 А
Relative air humidity
≤ 90%
Closing plate can be fitted if required
No
Operating temperature
50 град.C
Operating temperature from
-40...50 град.C
Connection position
Side (transverse)
Flame propagating
No
Repairability
No
Flexible stranded conductor cross-section up to
1.5 кв.мм
Stranded flexible conductor cross-section from
0.75 ... 1.5 кв.мм
Solid conductor cross-section to
1.5 кв.мм
Solid conductor cross-section from
0.75 ... 1.5 кв.мм
Busbar cross-section
3.3
Mounting method
Direct mounting
Pollution degree
3
IP protection rating
IP00
Electrical connection type 1
Bolted connection
Electrical connection type 2
Screw connection
Colour
Black
Color
Black
Width
22 мм
Width/connection pitch
22.0 мм
