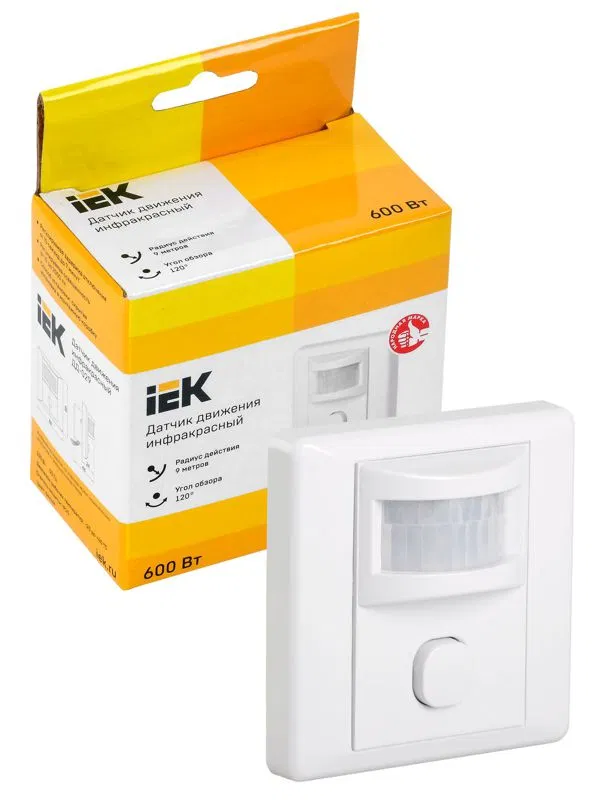

Motion sensor DD-029 600W 120 deg 9m IP20 white IEK LDD12-029-600-001
SKU: LDD12-029-600-001
ETIM: EC000133
1,136 ₽
Get back 11 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Sensors are designed for automatic switching of the load on and off within a given time interval depending on the presence of moving objects in the sensor's detection zone and the light level.
Comply with GOST R 51324.2.1-99.
HVAC or climate control
No
Material type/grade
Other
Network connection capability
No
Height
88.0 мм
Height
88.0 мм
Depth
48.0 мм
Remote control
No
Additional input
No
Anti-slip protection
No
Protective surface coating
Untreated
Animal detection zone
No
Design
Motion sensor
Electric shock protection class
II
Climatic version
UZ
Max. load power for incandescent lamps
600
Max. power in on state
0.45
Max duty cycle
7±2 мин
Max switching power (connected load)
600 Вт
Maximum lateral range
9 м
Maximum frontal range
9 м
Maximum duty cycle
5 с
Material
Plastic
Min. duty cycle
10±3
Rated voltage
230 В
Optimal mounting height
1.8 м
Suitable for wireless transmission
No
Illuminance switching threshold
from 3 to daylight лк
Constant illuminance control
Yes
Forced shutdown
No
Transparent
No
Adjustable trip illuminance
Yes
Current type
Alternating current (AC)
With remote control
No
With DALI interface
No
With signalling device
No
Cross-section of connectable conductors
0.75...1.5
Mounting method
Flush-mounted (in plaster)
IP protection rating
IP20
Stepped monitoring
No
Temperature from
-25...45 град.C
Sensor type
Passive infrared (PIR)
Sensor type
Passive infrared (PIR)
Surface type
Not applicable
Horizontal viewing angle up to
140 град.
Horizontal viewing angle from
120 град.
Configurable trip threshold
No
Alarm functions
No
Dimming function with dimmer mechanism
No
Optimal brightness detection function
No
Color
White
Colour
White
Frequency at
50 Гц
Frequency from
50 Гц
Sensitivity to object infrared radiation
Yes
Width
88.0 мм
Shunt switch
No
