IEK

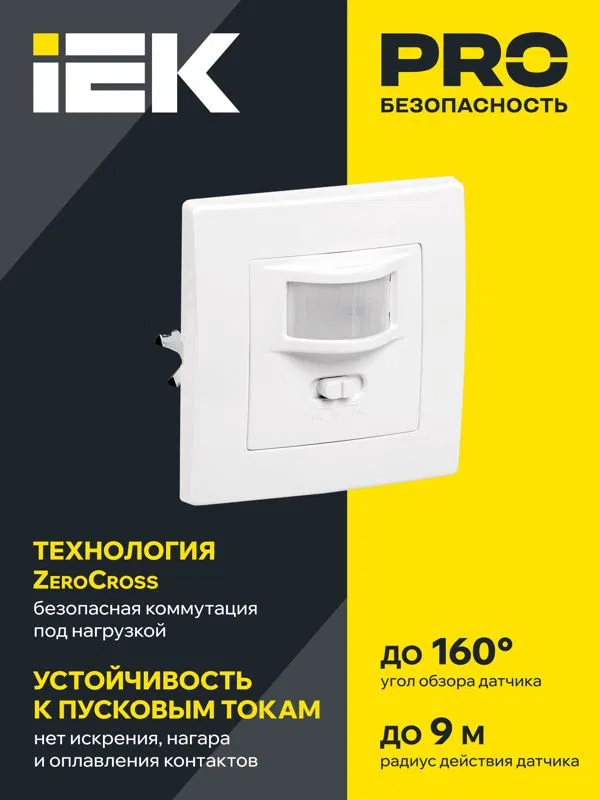

Motion sensor DD-030 500W 160deg 9m IP20 white IEK LDD12-030-500-001
SKU: LDD12-030-500-001
ETIM: EC000133
801 ₽
Get back 8 ₽ in points
Analogues by specifications

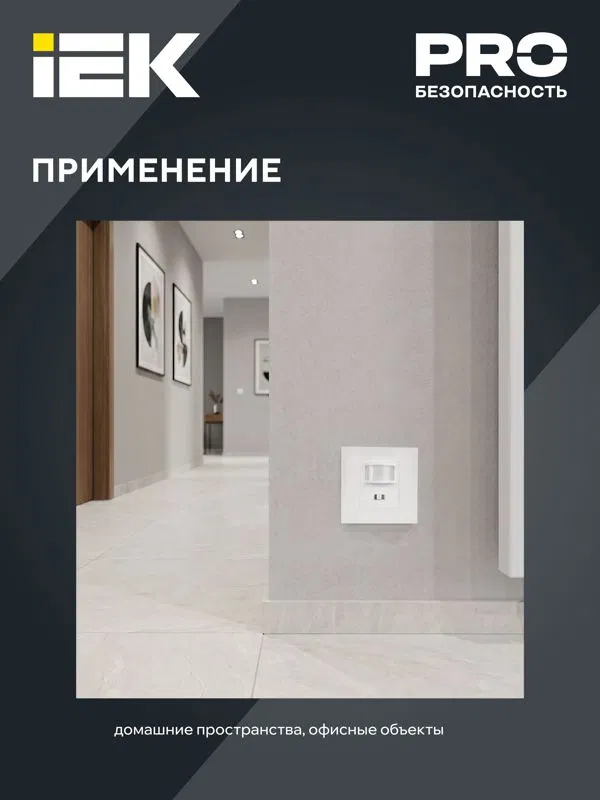

Sensors are designed for automatic switching of the load on and off within a given time interval depending on the presence of moving objects in the sensor's detection zone and the light level.
Comply with GOST R 51324.2.1-99.
HVAC or climate control
No
Material type/grade
Other
Network connection capability
No
Height
80.0 мм
Height
80.0 мм
Remote control
No
Additional input
No
Anti-slip protection
No
Protective surface coating
Untreated
Animal detection zone
No
Design
Motion sensor
Electric shock protection class
Please provide the text you would like me to translate. I am ready to translate your product data from Russian to English following all your specified rules.
Climatic version
UZ
Load switching
Triac
Max. load power for incandescent lamps
500
Max. power in on state
0.45
Max duty cycle
30±2 мин
Max switching power (connected load)
500 Вт
Maximum lateral range
9 м
Maximum object detection range
9
Maximum frontal range
9 м
Material
Plastic
Min. duty cycle
10±3
Rated short-circuit fuse current in load circuit
3.0
Rated voltage
230 В
Optimal mounting height
1.8 м
Suitable for wireless transmission
No
Illuminance switching threshold
3...2000 лк
Constant illuminance control
Yes
Forced shutdown
Yes
Transparent
No
Range adjustment
No
Adjustable trip illuminance
Yes
Current type
Alternating current (AC)
With remote control
No
With DALI interface
No
With signalling device
No
Cross-section of connectable conductors
0.75...1.5

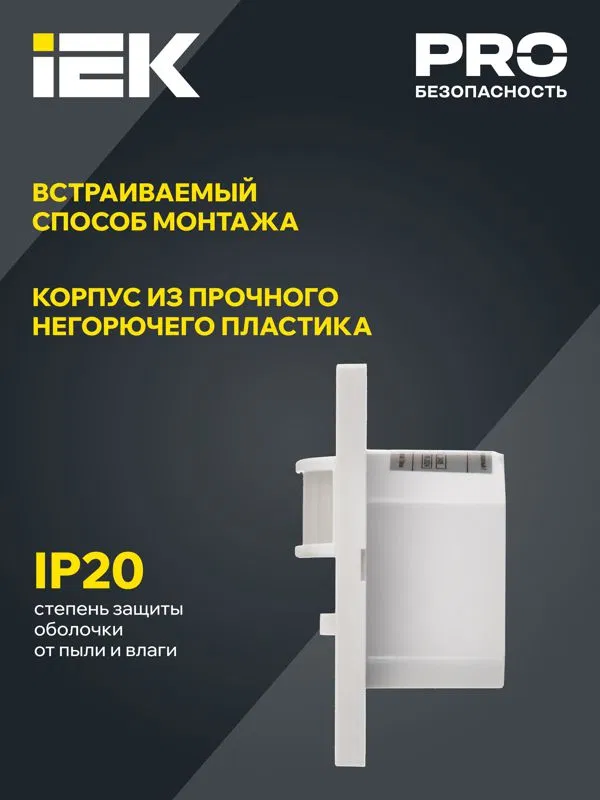

Mounting method
Flush-mounted (in plaster)
IP protection rating
IP20
Stepped monitoring
No
Temperature from
-25...45 град.C
Sensor type
Passive infrared (PIR)
Sensor type
Passive infrared (PIR)
Surface type
Not applicable
Horizontal viewing angle up to
160 град.
Horizontal viewing angle from
160 град.
Configurable trip threshold
No
Alarm functions
No
Dimming function with dimmer mechanism
No
Optimal brightness detection function
No
Colour
White
Color
White
Frequency at
50 Гц
Frequency from
50 Гц
Sensitivity to object infrared radiation
Yes
Width
80.0 мм
Shunt switch
Yes
