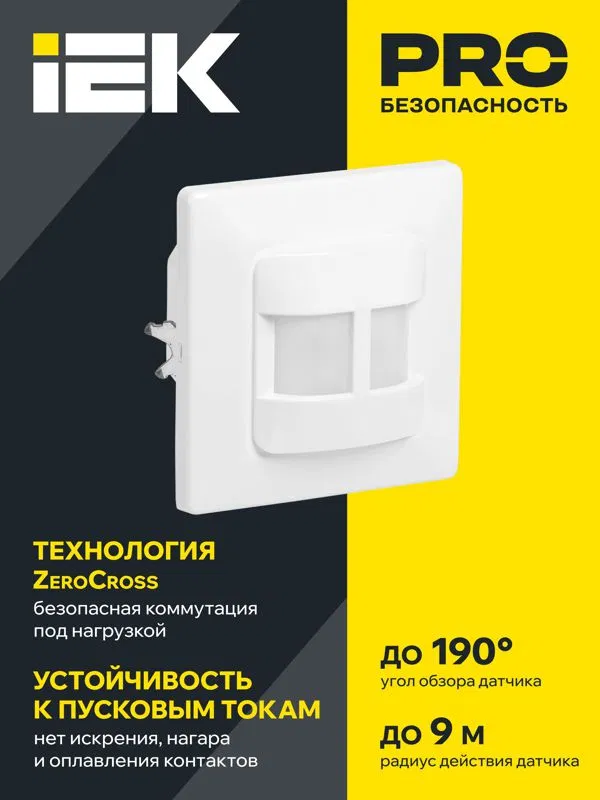

Motion sensor DD-031 500W 190deg 9m IP20 white IEK LDD12-031-500-001

IEK

Motion sensor DD-031 500W 190deg 9m IP20 white IEK LDD12-031-500-001

SKU: LDD12-031-500-001 ETIM: EC000133

1,830 ₽

Get back 18 ₽ in points

Description Specifications Reviews

HVAC or climate control No

Material type/grade Other

Network connection capability No

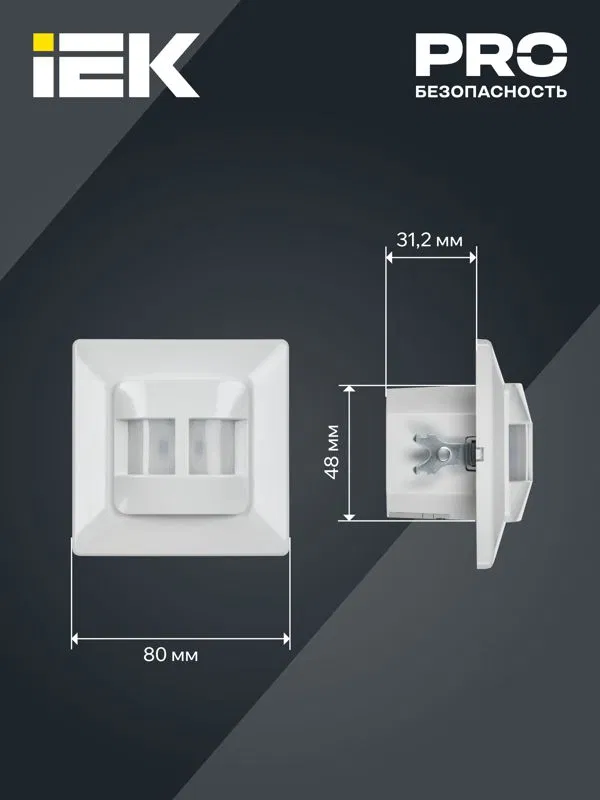

Height 80.0 мм

Height 80.0 мм

Remote control No

Additional input No

Anti-slip protection No

Protective surface coating Untreated

Animal detection zone No

Design Motion sensor

Electric shock protection class II

Climatic version UZ

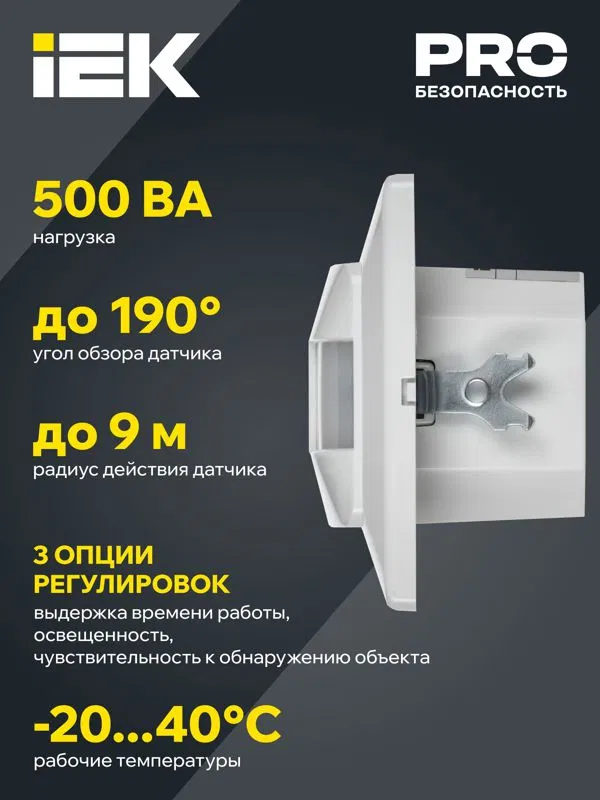

Max. load power for incandescent lamps 500

Max. power in on state 0.45

Max duty cycle 7±2 мин

Max switching power (connected load) 500 Вт

Maximum lateral range 9 м

Maximum frontal range 9 м

Material Plastic

Min. duty cycle 10±3

Rated voltage 230 В

Optimal mounting height 1.8 м

Suitable for wireless transmission No

Illuminance switching threshold from 3 to daylight лк

Constant illuminance control Yes

Forced shutdown No

Transparent No

Adjustable trip illuminance Yes

Current type Alternating current (AC)

With remote control No

With DALI interface No

With signalling device No

Cross-section of connectable conductors 0.75...1.5

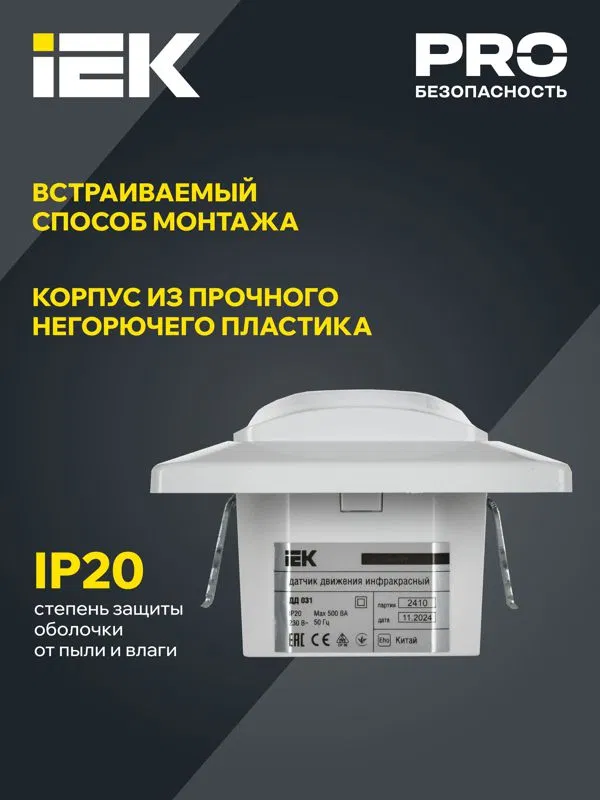

Mounting method Flush-mounted (in plaster)

IP protection rating IP20

Stepped monitoring No

Temperature from -25...45 град.C

Sensor type Passive infrared (PIR)

Sensor type Passive infrared (PIR)

Surface type Not applicable

Horizontal viewing angle up to 190 град.

Horizontal viewing angle from 190 град.

Configurable trip threshold Yes

Alarm functions No

Dimming function with dimmer mechanism No

Optimal brightness detection function No

Colour White

Color White

Frequency at 50 Гц

Frequency from 50 Гц

Sensitivity to object infrared radiation Yes

Width 80.0 мм

Shunt switch No
