Motion sensor DD-MV201 1200W 360 deg 8m IP20 white IEK LDD11-201MB-1200-001
SKU: LDD11-201MB-1200-001
ETIM: EC000133
1,669 ₽
Get back 16 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse

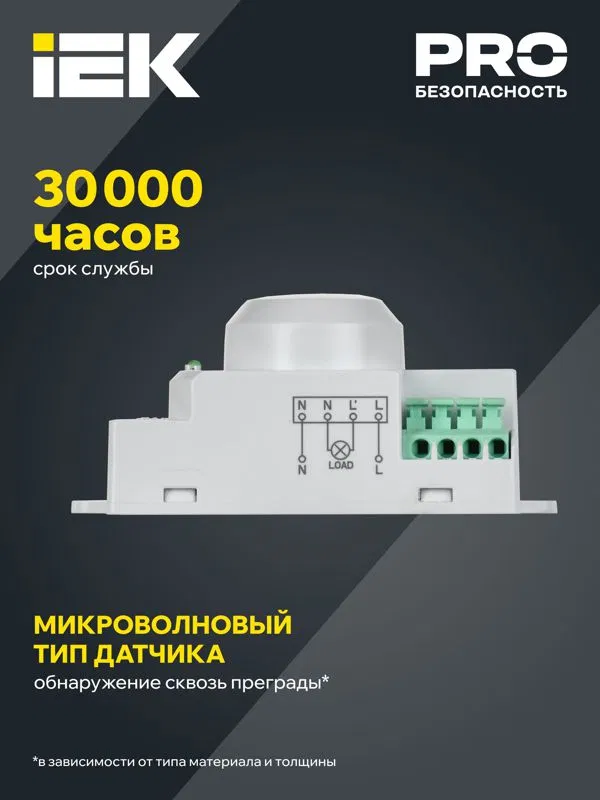

Microwave motion sensor emits high-frequency electromagnetic waves (wave frequency is typically 5.8GHz), which reflect off surrounding objects and are detected by the sensor. In case of detecting even the slightest changes in electromagnetic waves, the sensor's microprocessor activates the preset settings.
Purpose:
- for automatic switching on and off of the load within a specified time interval when moving objects appear in the sensor's detection zone.

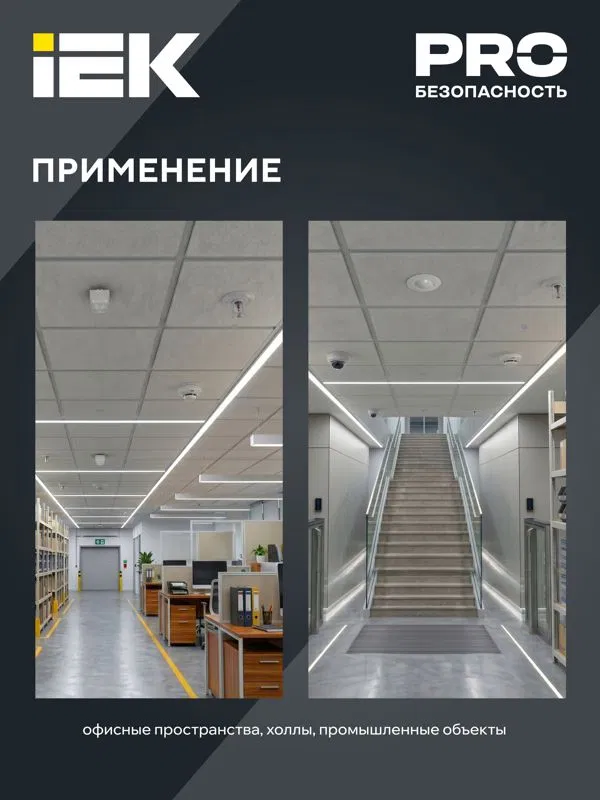

Application:
- outdoor lighting control;
- indoor lighting control;
- alarm system control.
HVAC or climate control
No
Material type/grade
Other
Network connection capability
No

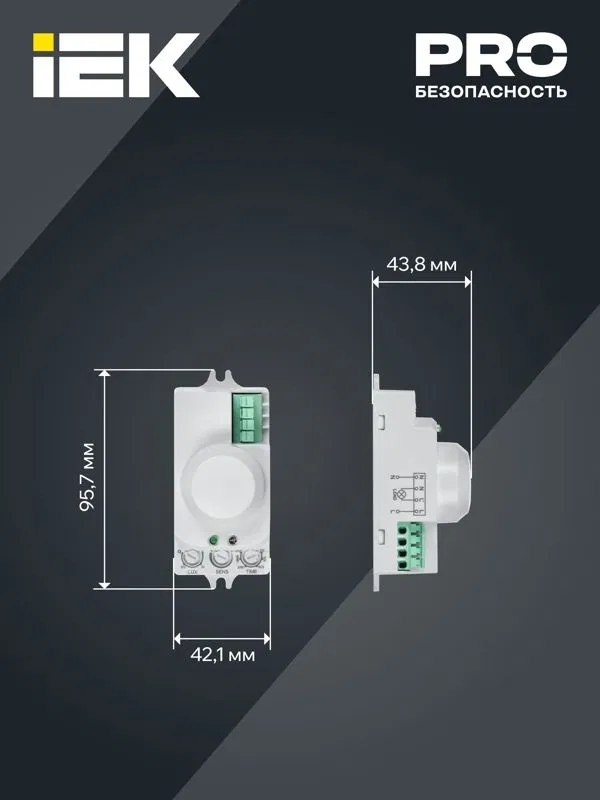

Height
95.7 мм
Height
95.7 мм
Depth
43.8 мм
Remote control
No
Additional input
No
Anti-slip protection
No
Protective surface coating
Untreated
Animal detection zone
No
Design
Motion sensor
Electric shock protection class
II
Climatic version
UKhL3

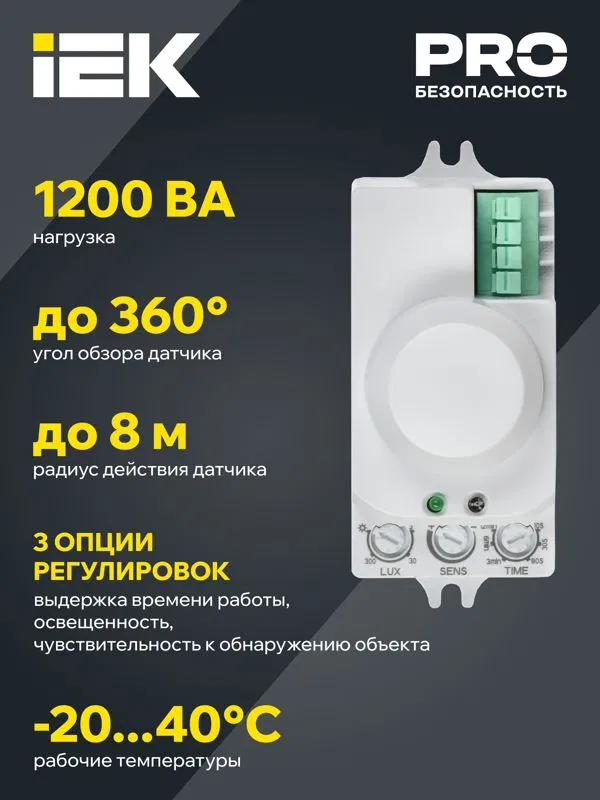

Max. load power for incandescent lamps
1200
Max load power for non-starter fluorescent lamps
300
Max. power in on state
0.90
Max duty cycle
12±1 мин
Max switching power (connected load)
1200 Вт
Maximum lateral range
8 м
Maximum frontal range
8 м
Maximum duty cycle
13 с
Material
Plastic
Min. duty cycle
10±3
Carrier frequency
5.8
Rated voltage
230 В
Optimal mounting height
3.5 м
Suitable for wireless transmission
No
Illuminance switching threshold
3...2000 лк
Constant illuminance control
Yes
Forced shutdown
No
Transparent
No
Sensor detection range
1...8
Range adjustment
Yes
Adjustable trip illuminance
Yes
Current type
Alternating current (AC)
With remote control
No
With DALI interface
No
With signalling device
No
Cross-section of connectable conductors
0.75...1.5
Motion detection speed
0.6...1.5

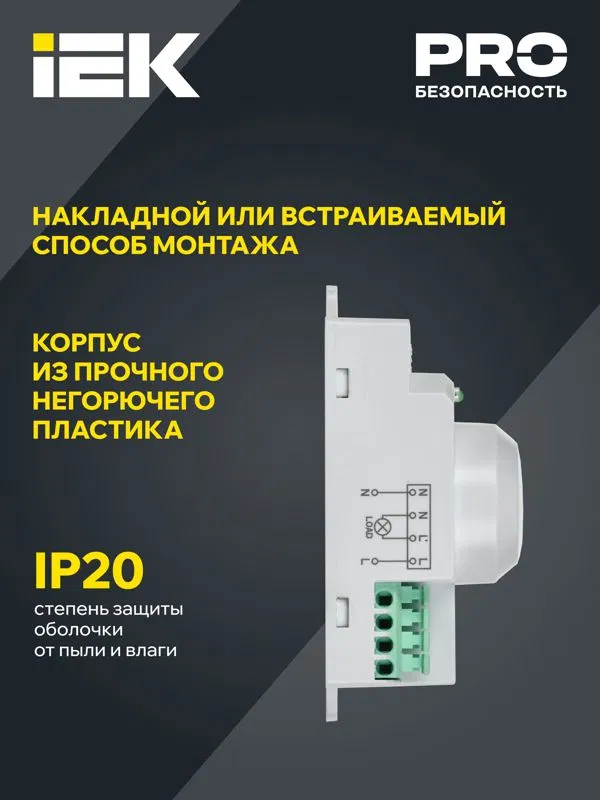

Mounting method
Surface mounting (exposed installation)
IP protection rating
IP20
Stepped monitoring
No
Temperature from
-25...70 град.C
Sensor type
Passive infrared (PIR)
Sensor type
Passive infrared (PIR)
Surface type
Not applicable
Horizontal viewing angle up to
360 град.
Horizontal viewing angle from
360 град.
Vertical detection angle
180
Configurable trip threshold
Yes
Alarm functions
No
Dimming function with dimmer mechanism
No
Optimal brightness detection function
No
Color
White
Colour
White
Frequency at
50 Гц
Frequency from
50 Гц
Sensitivity to object infrared radiation
No
Width
42.1 мм
Shunt switch
No
