Rexant

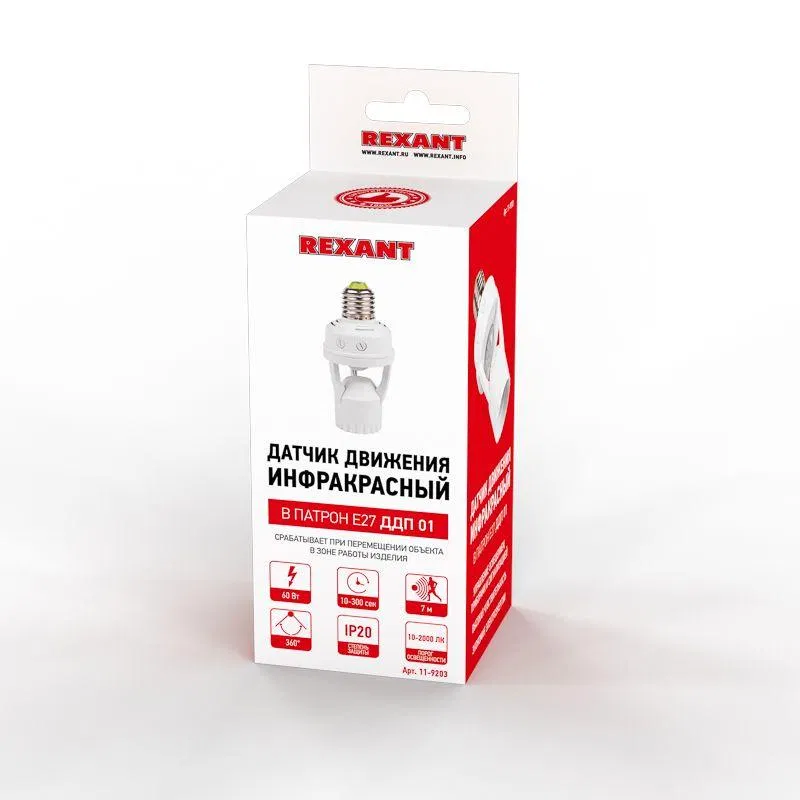

Motion sensor in E27 socket DDP 01 360deg. 60W 10-2000Lx 7m 10-300sec Rexant 11-9203
SKU: 11-9203
ETIM: EC000133
Price on request
Analogues by specifications
Stock by warehouse
Sensors are designed to automatically switch the load on and off within a specified time interval, depending on the presence of moving objects in the sensor's detection zone and the light level. The principle of operation of infrared motion sensors is the detection of changes in infrared (thermal) radiation from surrounding objects.
Every object with a temperature emits infrared radiation, which passes through a system of lenses or special concave segmented mirrors onto a sensitive sensor located inside the motion sensor, which records it.

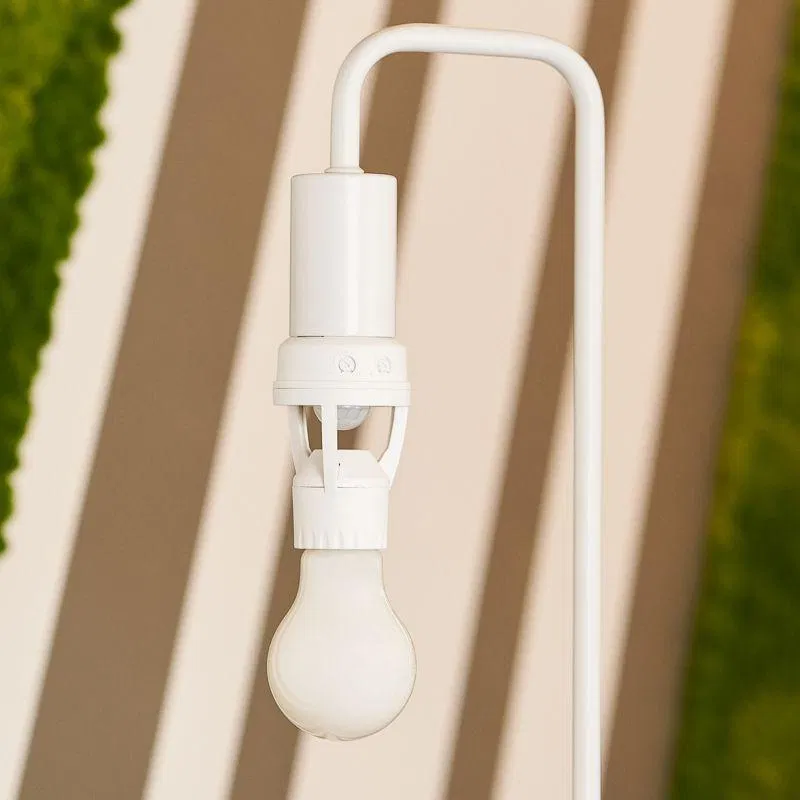

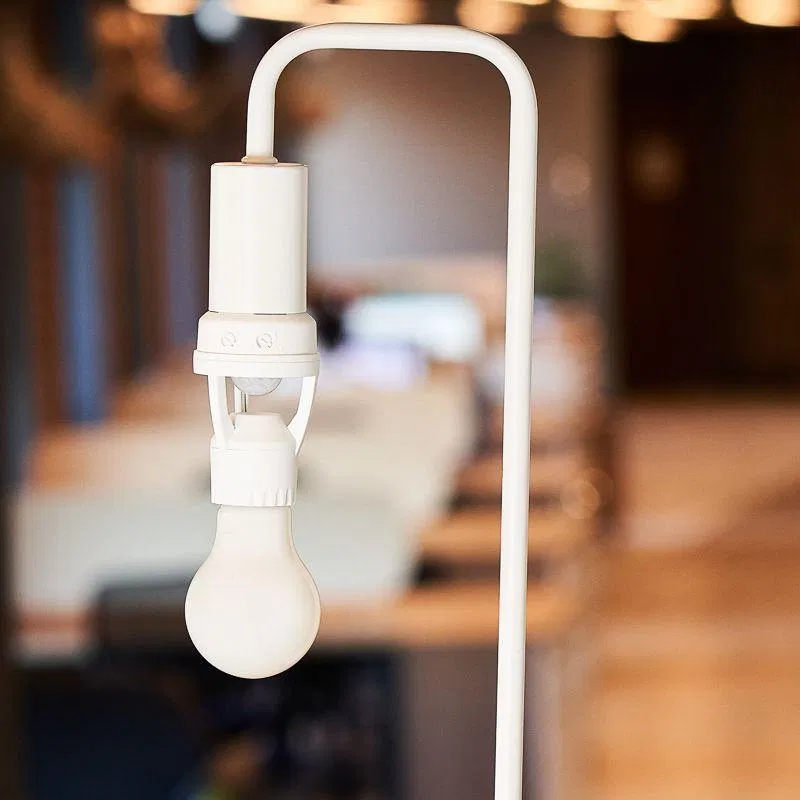

A motion sensor in an E27 socket has the ability to detect motion 360 degrees. The lamp in the socket will turn on regardless of which side you enter the room from.
Viewing angle: 360°
Voltage: 230 V/50 Hz
Power: 60 W
Illuminance threshold: 3-2000 lx
Range: up to 6 m
Switch-on delay: 10-300 sec
Operating temperature range: –25...+40 °C
Protection rating: IP20
Weight: 0.8 kg
C-load
No
Antibacterial
No
Design
Motion sensor
Max switching power (connected load)
60 Вт
Maximum lateral range
6 м
Maximum frontal range
6 м
Material
Plastic
Halogen-free
Yes
Rated voltage
230 В
Suitable for ceiling fastening
No
Suitable for wall mounting
No
Forced shutdown
No
Adjustable trip illuminance
Yes
With remote control
No
With DALI interface
No
Mounting method
Screw lamp holder
IP protection rating
IP20
Sensor type
Passive infrared
Horizontal viewing angle up to
360 град.
Horizontal viewing angle from
360 град.
Scanning angle
360 град.
Impact resistance
IK02
Configurable trip threshold
Yes
Color
White
Frequency at
0 Гц
Frequency from
50 Гц
