Inductive positioning sensor VBI-M30-76C-1352-3 SENSOR VBI-M30-76C-1352-3

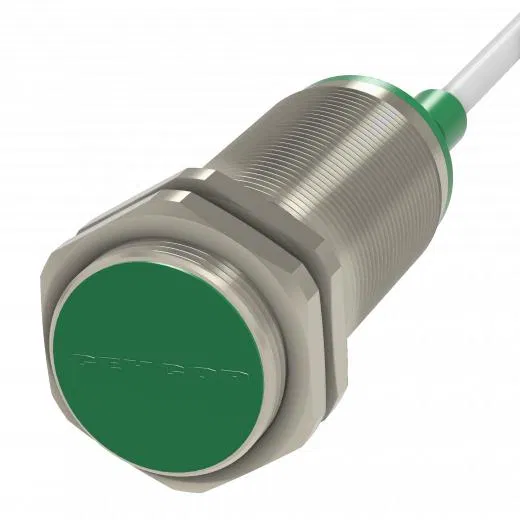

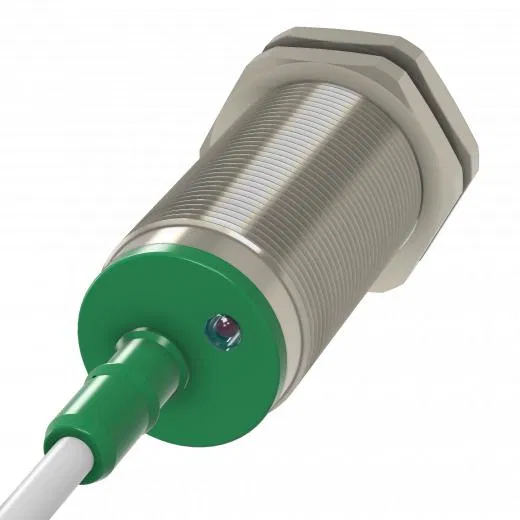

Inductive sensor VBI-M30-76S-1352-Z in a cylindrical nickel-plated brass housing D=30 mm, in general industrial design. Designed for reliable non-contact detection of metal objects. Main purpose Used where uniform movement detection is required - for example, as a non-contact switch (inductive limit switch) for detecting moving parts of machines (lathes), as well as a pulse generator, etc. Distinctive features Fitting for additional cable protection Cable connection method Flush mounting design Two-wire connection scheme Bistable protection of the switching element. Key characteristics Capable of operating in a wide temperature range from -45...+80 C Dust and water resistance IP67 Vibration resistance (compound potting) Standard sensing distance 10 mm Operating voltage 20-250 AC/DC NC output function LED status indication.
