Generica (Группа IEK)

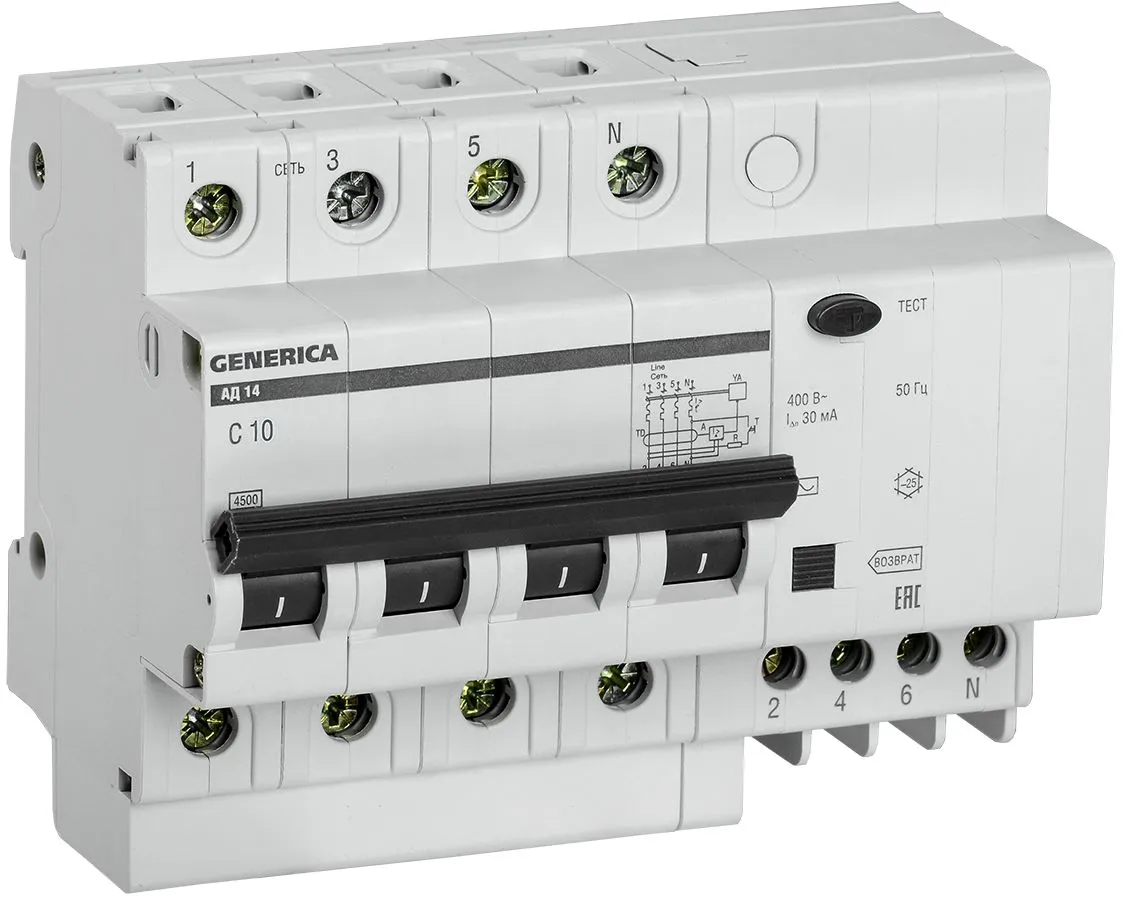

Residual current circuit breaker AD14 4P 32A 30mA GENERICA MAD15-4-032-C-030
SKU: MAD15-4-032-C-030
ETIM: EC000905
1,137 ₽
Get back 11 ₽ in points
Analogues by specifications
Stock by warehouse
No description available
Mounting installation depth
75 мм
Current limiting class
3
Number of protected poles
4
Number of poles
4
Maximum supply cable cross-section
25 кв.мм
Availability of residual current release
Yes
Thermal release available
Yes
Electromagnetic release present
Yes
Electronic release available
No
Rated impulse withstand voltage
4
Rated differential making and breaking capacity
4500
Rated breaking capacity in accordance with EN 60898
4.5 кА
Rated breaking capacity per IEC 60947-2
4.5 кА
Rated voltage
230/400 В
Rated current
32 А
Rated leakage current
0.03 мА
Total number of poles
4
Breaking capacity per IEC 61009-1
4500
Breaking capacity
4.5 кА
Current type
Alternating current (AC)
With switched neutral conductor
Yes
Tripping system
Thermal, electromagnetic
Mounting method
On DIN rail
IP protection rating
IP20
Residual current type
Alternating current (AC)
Connection type
Screw connection
Tripping characteristic
It seems your message was cut off. Please provide the text you would like me to translate from Russian to English, and I will follow your instructions strictly.
Frequency (Hz)
50 Hz
Width in modular units
6.5
